In stock
Product Code
101441.289.WH1
SKU
101441.289.WH1

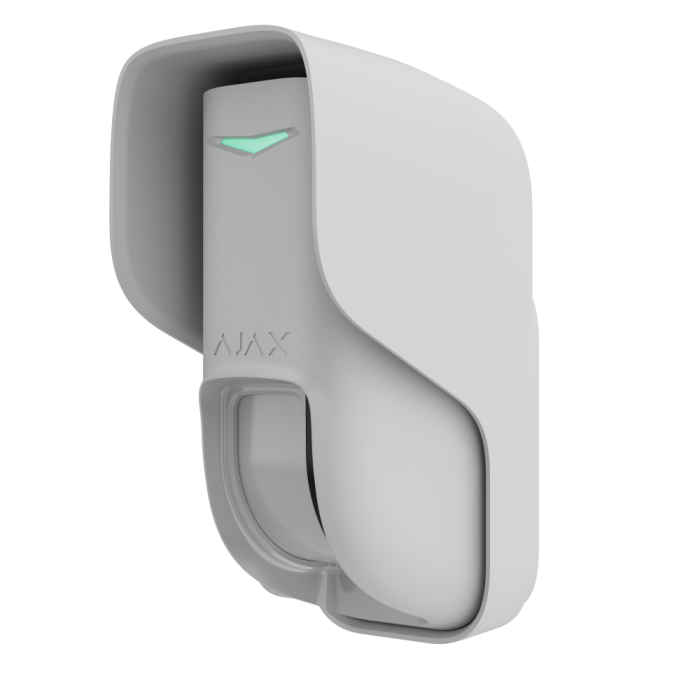

Ajax Curtain Outdoor Jeweller (8EU) ASP - White
Wireless dual technology curtain motion detector for outdoor and indoor use
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
Compact outdoor curtain motion detector with a narrow field of view. It is built for protecting specific entry points and perimeter lines without covering the whole area. It is aimed at clean, quick installations where reliable detection and simple commissioning matter as much as the device itself.
Key features:
- Narrow curtain detection
- Outdoor-rated design
- Anti-masking protection
- Useful for windows, doors and boundaries
- Jeweller wireless communication
- Tamper protection
- Remote testing and configuration
- Low-maintenance wireless installation
- False alarm reduction features
- Outdoor-ready design
| Approval | Grade 2 (EN 50131) |
|---|---|
| Category Type | Motion detectors |
| Colour | White |
| IP Rating | IP55 |
| System Type | Intruder |
| Clearance | No |
Write Your Own Review
Communication
| Jeweller communication technology |
Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
|
| Frequency bands |
866.0 – 866.5 MHz Depends on the sales region.
|
| Maximum effective radiated power (ERP) |
up to 20 mW Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio communication range |
up to 1,700 m Between the range extender and a hub in an open space. |
| Encrypted communication |
All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. |
|
|
|
| Wings communication technology |
Proprietary wireless communication technology for uploading firmware updates. Key features:
|
| Frequency bands |
866.0–866.5 MHz Depends on the sales region. |
| Radio communication range |
up to 1,700 m Between the detector and a hub (or a range extender) in an open space. |
| Encrypted communication |
All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. |
Detection
| Sensitive element |
2 × PIR sensors 1 × K-band microwave sensor K-band microwave sensor to prevent false alarms caused by thermal interference. |
| Motion detection distance |
up to 8–12 m When installed at a height of 1–2.4 m. Adjusted with a slider at the detector enclosure.
|
| Motion detection angles |
horizontal: 8° Depends on the installation height. |
| Motion detection speed |
from 0.3 to 2.0 m/s The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility. |
| Sensitivity |
3 levels Adjusted by a PRO or a user with admin rights in Ajax apps. |
| Pet immunity |
height: up to 100 cm The detector should be installed at a height of 1 meter, and the slider on its enclosure should be set to the Pet position. |
| False alarm prevention |
Dual motion detection technology SmartDetect Software algorithm.
|
| Temperature compensation |
Effective motion detection at temperatures from -25°C to +60°C. |
Sabotage protection
| Tamper alarm |
Notifications on attempts to detach the detector from the surface or remove it from the mounting panel. |
| Protection against spoofing |
device authentication |
| Communication loss detection |
after 36 s Detection time depends on the Jeweller or Jeweller/Fibra settings. |
| Anti-masking system |
detects attempts to block the detector view |
| Accelerometer |
alarm when the detector is moved Must be activated when the detector is installed on third-party brackets. |
Power supply
| Battery |
2× CR123A Pre-installed. |
Enclosure
| Dimensions with hood |
155 × 77 × 85 mm |
| Dimensions with hood and angle mount |
155 × 84 × 98 mm |
| Dimensions without hood and with angle mount |
141 × 76 × 84 mm |
| Weight with hood |
299 g |
| Weight without hood |
223 g |
| Weight of angle mount |
34 g |
| Operating temperature range |
from −25 °C to +60 °C |
| Operating humidity |
up to 95% |
| Protection class |
IP55 |
Colour
| Available colours | White |
Complete Set
| Contains |
Curtain Outdoor Jeweller SmartBracket mounting panel 2 × CR123A battery (pre-installed) Angle mount Hood Installation kit Quick start guide
|
Warranty
| Warranty Period | 24 months |
