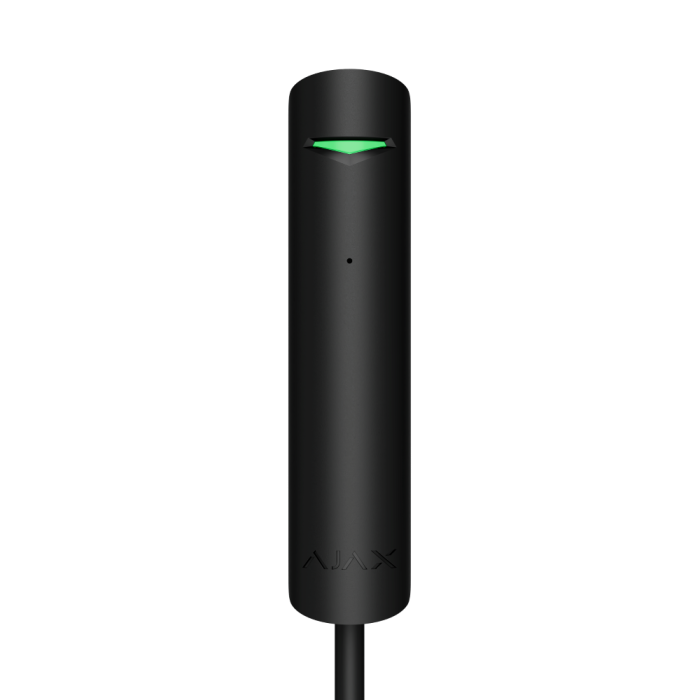

Superior GlassProtect Fibra

Wired glass break detector with a microphone

Intruders can break silence, not security

Forget about the typical problem of glass break detectors — false alarms caused by barking dogs, traffic, water splashing, and extraneous noise. Superior GlassProtect Fibra has a unique DualTone digital algorithm designed to minimize false alarms. The detectorʼs microphone responds only to vibrations characteristic of the glass breaking sound. You can adjust one of three sensitivity levels and run the test to check if everything works properly.

Discover future-proof hardware

Electret microphone
Mainboard with terminals
Tamper to prevent enclosure dismantling
Tamper to prevent detachment from the surface
Enclosure with fixing points
Perforated parts for cable output either underneath the detector or through the wall
A screw to secure the enclosure

Responding to real threats only

Superior GlassProtect Fibra uses a sensitive electret microphone to detect the sound of glass breaking and a DualTone digital algorithm to prevent false alarms. The sound of glass breaking consists of a low-frequency hit sound and a high-frequency crashing sound of shattered glass. Both sounds must be detected within 1.5 seconds for the detector to report an alarm. This two-stage glass break detection decreases the risk of false triggering. Additionally, one of three sensitivity levels can be configured in the Ajax app, making it easy to adjust the detector according to the conditions of any object.

Easy integration with third-party detectors

Superior GlassProtect Fibra has terminals for connecting a third-party wired NC detector. This allows you to enhance system reliability with any NC detector, whether newly installed or already in place, such as motion, opening, or vibration detectors. For example, Superior GlassProtect Fibra enables you to integrate an existing third-party2 opening detector into the system.

Unique wired technology

Fibra is proprietary Ajax technology for secure two-way communication between devices and a hub or module that extends the Fibra line. Fibra features encryption and device authentication to prevent sabotage, spoofing, and data theft. The Fibra line supports all types of devices, including sirens, keypads, and detectors with photo verification.

Energy efficiency as a priority

Fibra communication requires minimum power consumption, with the detectorʼs consuming only up to 0.036 W at its peak. Fibra operates on the TDMA principle. Each device has a short time frame to exchange data with a hub, and its communication module remains inactive the rest of the time. This significantly reduces power consumption and helps avoid interferences even when multiple devices communicate simultaneously.

Sabotage-resistant

All Ajax devices perform automatic self-diagnosis and report their states to the hub. Essential parameters, such as a tamper state, communication, power supply, and sensor statuses, are continuously monitored. The Ajax Cloud server controls communication between the hub and Ajax apps, ensuring instant notifications for ARCs, security companies, and users. In case of any malfunction or communication failure, an engineer is informed immediately to provide necessary services.

System supervision

All Ajax devices perform automatic self-diagnosis and report their states to the hub. Essential parameters, including tamper, communication, power supply, and sensor statuses, are continuously monitored. The Ajax Cloud server controls communication between the hub and Ajax apps, ensuring instant notifications for ARCs, security companies, and users. In case of any malfunction or communication failure, an engineer is informed immediately to provide necessary services.

Sabotage resistance

Tamper alarm
The enclosure has two tamper buttons, which notify the security company and users once the device is dismantled from the mount.

Data encryption
All data the system stores and transmits is protected by block encryption featuring a dynamic key. Encryption makes it extremely difficult to reprogram the device, replace, or steal the data.

Data-rich notifications
An Ajax system instantly notifies about alarms and events with informative push notifications: security companies and users know exactly which device triggered, when and where it happened.

Regular polling
The device regularly exchanges data with the hub. The system controls each device state and reports if there is a malfunction or connection loss.

Device authentication against spoofing
The hub checks the device’s unique parameters for authentication during each communication session. If any parameter fails the check, the hub ignores device commands.

Data backup in case of connection loss
When the Fibra line breaks during the sabotage attempts, the detector continues to operate from a built-in battery. Alarms with photo verifications will be stored in the detector's buffer memory. Once the connection with the hub gets restored, all data is sent to Ajax apps and CMS.

PRO is king

The myth about wired systems being difficult to install is busted. Ajax minimized an expensive, long, and dusty experience for PROs by developing an ultimate set of tools to make the process easy and flexible, from project design to client support and system maintenance. There is no need to disassemble the device for installation. Intuitive Ajax apps help quickly make the device a part of the system, and each device can always be reconfigured remotely without site visits. No need for programmers — everything is available out-of-box.
