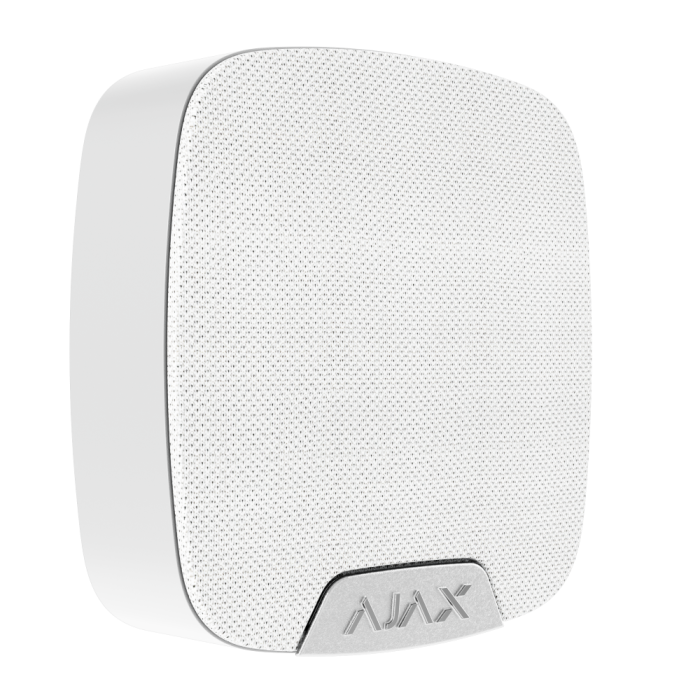

Ajax HomeSiren U Jeweller (8EU) ASP - White
Wireless siren with an LED connector
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
UK-focused wireless indoor siren that notifies occupants when an Ajax alarm is activated. It is designed in line with UK market requirements. It gives the installation a clear alarm output and helps customers see and hear when the system needs attention.
Key features:
- Indoor siren
- UK market version
- Wireless Jeweller communication
- Alarm and status indication
- Jeweller wireless communication
- Audible alarm indication
- Visual status indication where supported
- Remote configuration in Ajax apps
- Tamper protection
| Approval | Grade 2 (EN 50131), PD 6662:2017 |
|---|---|
| Category Type | Sirens |
| Colour | White |
| IP Rating | IP50 |
| System Type | Intruder |
| Clearance | No |
Write Your Own Review
Communication
| Jeweller communication technology |
Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
|
| Frequency bands |
866.0 – 866.5 MHz Depends on the sales region.
|
| Maximum effective radiated power (ERP) |
up to 20 mW Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio communication range |
up to 2,000 m Between the range extender and a hub in an open space. |
| Encrypted communication |
All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. |
Key features
| Alarm type |
acoustic and LED Buzzer and LED frame. |
| Type of warning device |
type X Internal, self-powered. |
| Alarm volume |
from 81 to 105 dB at a distance of 1 m Adjusted by PRO or user with admin rights in the Ajax app. |
| Alarm duration |
from 3 s to 3 min Adjusted by PRO or user with admin rights in the Ajax app. |
| Siren sound frequency |
3.4 ± 0.5 kHz |
| Ability to connect an additional LED |
3 V⎓ An additional LED works in parallel with the built-in LED of the siren and fully replicates its indication. |
| Events indication |
|
| Chime | The siren makes a special sound to notify that the opening detectors are triggered when the system is disarmed. |
Sabotage protection
| Tamper alarm |
Notifications on attempts to detach the detector from the surface or remove it from the mounting panel. |
| Holding screw |
to secure the siren on SmartBracket |
| Protection against spoofing |
device authentication |
| Communication loss detection |
after 36 s Detection time depends on the Jeweller or Jeweller/Fibra settings. |
Power supply
| Battery |
4 × CR123A Pre-installed. |
Enclosure
| Dimensions |
75 × 76 × 27 mm |
| Weight |
92 g |
| Operating temperature range |
from −10°C to +40°C |
| Operating humidity |
up to 75% |
| Protection class | IP50 |
Colour
| Available colours | Black, White |
Complete Set
| Contains |
HomeSiren U Jeweller SmartBracket mounting panel with holding screw 2 CR123A batteries (pre-installed) Connector for LED indicator Installation kit Quick start guide |
Warranty
| Warranty Period | 24 months |
