In stock
Product Code
133210.83.WH1
SKU
133210.83.WH1

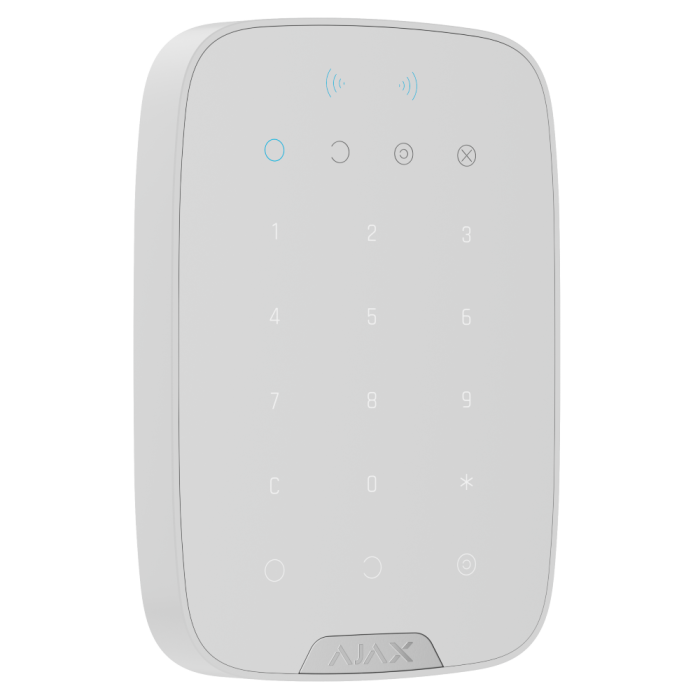

Ajax Keypad Plus Jeweller (8EU) ASP - White
Wireless touch keypad with support for encrypted contactless cards and key fobs
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
Wireless keypad with contactless access support. It lets users control security modes using codes, Tag key fobs or Pass cards. It helps turn a technical security system into something customers can use confidently every day.
Key features:
- Pass and Tag support
- Code-based arming and disarming
- Night Mode and duress functions
- Protected wireless communication
- Jeweller wireless communication
- Simple user control
- Works with Ajax apps and compatible hubs
- Secure encrypted communication
- Fast daily operation for end users
| Approval | Grade 2 (EN 50131), PD 6662:2017 |
|---|---|
| Category Type | Keypad |
| Colour | White |
| System Type | Intruder |
| Clearance | No |
Write Your Own Review
Communication
| Jeweller communication technology |
Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
|
| Frequency bands |
866.0 – 866.5 MHz Depends on the sales region. |
| Maximum effective radiated power (ERP) |
up to 20 mW Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio communication range |
up to 1,700 m Between the range extender and a hub in an open space. |
| Encrypted communication |
All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. |
Key features
| Sensor type |
capacitive |
| Malfunctions and security mode indication |
When KeyPad is active, it notifies with LED indication of the security mode, problems with detectors, or communication loss with the hub. |
| Functional button |
Operates in one of the modes. alarm The system sends an alarm to the central monitoring station and users. It also activates the sirens connected to the system. mute fire alarm Mutes interconnected fire detectors alarms.
The button is disabled. |
| Control |
codes The functionality of the cards/key fobs is the same, but they differ in design. |
| Access via DESFire® |
EV1, EV2 The technology is based on the ISO 14443 international standard and combines 128-bit encryption and copy protection. |
| Access codes |
up to 200 personal codes One code per each user. The number of personal access codes depends on the hub model. 1 keypad code One code per KeyPad |
| Duress codes |
up to 200 personal codes One code per each user. The number of personal duress codes depends on the hub model. 1 keypad code One code per KeyPad. |
| Codes for unregistered people |
up to 99 personal codes For people who are not registered in the system. The number of such codes depends on the hub model. |
| Group security management |
Enter the general keypad code and the group ID to manage group security. |
Sabotage protection
| Protection against code guessing |
KeyPad locks for 3–180 minutes if an incorrect code is entered more than 3 times in a row within 1 minute. PRO or user with admin rights can adjust the lock time in the Ajax app. |
| Tamper alarm |
Notifications on attempts to detach the keypad from the surface or remove it from the mounting panel. |
| Protection against spoofing |
device authentication |
| Communication loss detection |
after 36 s Detection time depends on the Jeweller or Jeweller/Fibra settings. |
Power supply
| Battery |
4 × AAA Pre-installed. |
Enclosure
| Dimensions |
150 × 103 × 14 mm |
| Weight |
197 g |
| Operating temperature range |
from -10 °C to +40 °C |
| Operating humidity |
up to 75% |
Colour
| Available colours | Black, White |
Complete Set
| Contains |
KeyPad Plus Jeweller SmartBracket mounting panel 4 AA batteries (pre-installed) Installation kit Quick start guide |
Warranty
| Warranty Period | 24 months |
