Proprietary wireless communication technology to transmit commands, alarms, and events.

Key features:

• Two-way communication.
• Advanced anti-sabotage.
• Block encryption featuring a dynamic key.
• Instant notifications.
• Remote control and configuration in Ajax apps.

866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz

Depends on the sales region.

up to 20 mW

Automatic power control to reduce power consumption and radio interference.

up to 1,200 m

Between the range extender and a hub in an open space.

All stored and transmitted data are protected by block encryption featuring a dynamic key.

To prevent radio interference and jamming.

Proprietary wireless communication technology to transmit photo verifications.

Key features:

• Two-way communication.
• Advanced anti-sabotage.
• Block encryption featuring a dynamic key.
• Data packages reload in case of transmission errors.
• Photo delivery check.

866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz

Depends on the sales region.

up to 1,700 m

Between the device and a hub (or a range extender) in an open space.

All stored and transmitted data are protected by block encryption featuring a dynamic key.

To prevent radio interference and jamming.

2 × PIR sensor

1 × K-band microwave sensor

Operating frequency: 24 GHz.

up to 15 m

When installed at a height of 2–4 m.

Depends on the sensitivity level adjusted in the device settings.

horizontal — 90°

vertical — N/A

from 0.3 to 2.0 m/s

The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility.

3 levels

Adjusted by a PRO or a user with admin rights in Ajax apps.

weight: not relevant
height: up to 80 cm

LISA

SmartDetect

Software algorithm.

A built-in camera is activated if the detector is armed and motion is detected.

User takes pictures at any time or when the detector is armed (depends on settings). The feature is disabled by default.

A detector camera takes pictures automatically when Ajax fire detectors are triggered. The feature is disabled by default.

The detector automatically takes photos at a specified time. This feature is available for hubs with firmware version OS Malevich 2.19 or higher.

The detector automatically takes photos when the security state is changed.

640 × 480 px

320 × 240 px (default)

Adjusted by a PRO or a user with admin rights in Ajax apps.

horizontal: 115°

vertical: 84°

For night photography and low light conditions.

from 1 to 5 images with a resolution of 320 × 240 px

from 1 to 3 images with a resolution of 640 × 480 px

Adjusted by a PRO or a user with admin rights in Ajax apps.

up to 9 s for 320 × 240 px resolution

up to 20 s for 640 × 480 px resolution

Photo delivery time depends on the image resolution selected in the device settings.

Notifications on attempts to detach the detector from the surface or remove it from the mounting panel.

device authentication

after 36 s

Detection time depends on the Jeweller or Jeweller/Fibra settings.

6 × CR123A

Pre-installed.

Type C

up to 3 years

With Delay when entering feature disabled.

3.8−6.5 V⎓

6 V⎓

45 μA

1,200 mA

4,800 mAh

4.2 V⎓

5.0 V⎓

3.8 V⎓

Device is switched off.

300 mAh

12−24 V⎓

The batteries serve as a backup when an external power supply is connected.

234 × 98 × 230 mm

234 × 98 × 137 mm

1,010 g

620 g

from −25 °C to +60 °C

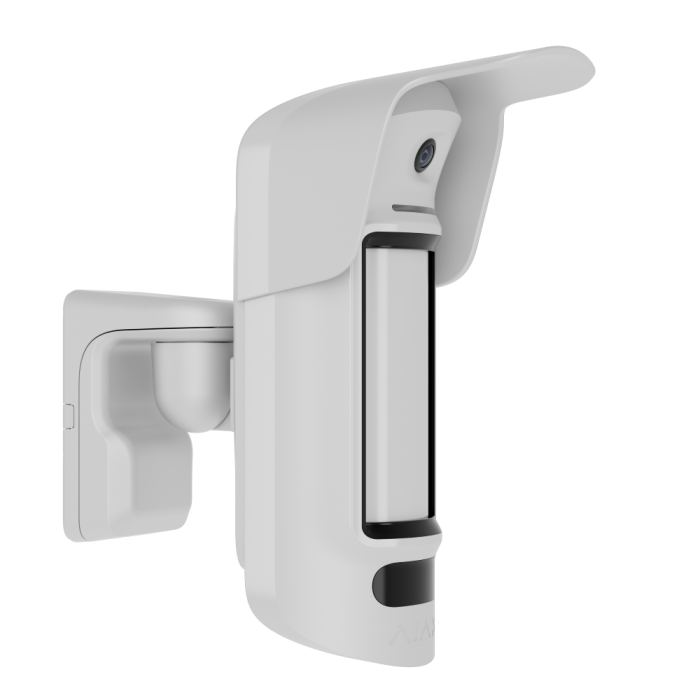

MotionCam Outdoor Jeweller

SmartBracket mounting panel

Hood visor

Installation kit

4 × CR123A battery (pre-installed)

Quick start guide
