In stock
Product Code
39293.121.WH1
SKU
39293.121.WH1

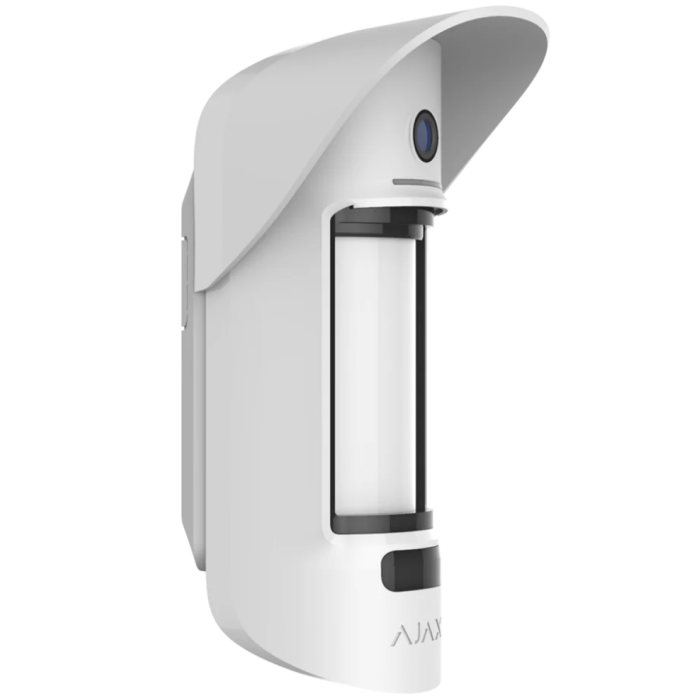

Ajax MotionCam Outdoor (PhOD) Jeweller (8EU) ASP - White
Wireless PIR motion detector with extended photo verification possibilities. For outdoor and indoor use
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
Outdoor wireless motion detector with photo verification. It confirms outdoor alarms with images, helping users understand whether a real threat or a false trigger has occurred. It is aimed at clean, quick installations where reliable detection and simple commissioning matter as much as the device itself.
Key features:
- Outdoor PIR detection
- Photo verification
- Anti-masking protection
- Weather-resistant design
- Jeweller wireless communication
- Tamper protection
- Remote testing and configuration
- Low-maintenance wireless installation
- False alarm reduction features
- Photo verification of alarms
| Approval | Grade 2 (EN 50131) |
|---|---|
| Category Type | Motion detectors |
| Colour | White |
| IP Rating | IP55 |
| System Type | Intruder |
| Clearance | No |
Write Your Own Review
Communication
| Jeweller communication technology |
Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
|
| Frequency bands |
866.0 – 866.5 MHz Depends on the sales region.
|
| Maximum effective radiated power (ERP) |
up to 20 mW Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio communication range |
up to 1,200 m Between the range extender and a hub in an open space. |
| Encrypted communication |
All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. |
| Wings communication technology |
Proprietary wireless communication technology to transmit photo verifications. Key features:
|
| Frequency bands |
866.0 – 866.5 MHz Depends on the sales region. |
| Radio communication range |
up to 1,700 m Between the device and a hub (or a range extender) in an open space. |
| Encrypted communication |
All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. |
Detection
| Sensitive element |
2 × PIR sensor |
| Motion detection distance |
up to 3–15 m When installed at a height of 0.8–1.3 m. Adjusted with a scrollbar on the device enclosure. |
| Motion detection angle |
horizontal — 90° vertical — N/A |
| Motion detection speed |
from 0.3 to 2.0 m/s The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility. |
| Sensitivity |
3 levels Adjusted by a PRO or a user with admin rights in Ajax apps. |
| Pet immunity |
weight: not relevant |
| False alarm prevention |
LISA SmartDetect Software algorithm. |
| Temperature compensation |
Effective motion detection at temperatures from −25°C to +60°C. |
Photo verification
| Photo by Alarm |
A built-in camera is activated if the detector is armed and motion is detected. |
| Photo on demand |
User takes pictures at any time or when the detector is armed (depends on settings). The feature is disabled by default.
|
| Photo by scenario |
A detector camera takes pictures automatically when Ajax fire detectors are triggered. The feature is disabled by default. |
| Photo by schedule |
The detector automatically takes photos at a specified time. This feature is available for hubs with firmware version OS Malevich 2.19 or higher. |
| Photo by arming/disarming |
The detector automatically takes photos when the security state is changed. |
| Photo resolution |
640 × 352 px Adjusted by PRO or user with admin rights in the Ajax app. |
| Camera viewing angles |
horizontal — 105° |
| IR backlight |
For night photography and low light conditions. |
| Series of pictures |
from 1 to 5 images with a resolution of 320 × 240 px from 1 to 3 images with a resolution of 640 × 480 px Adjusted by a PRO or a user with admin rights in Ajax apps |
| Photo delivery time |
up to 9 s for 320 × 240 px resolution up to 20 s for 640 × 480 px resolution Photo delivery time depends on the image resolution selected in the device settings. |
Sabotage protection
| Tamper alarm |
Notifications on attempts to detach the detector from the surface or remove it from the mounting panel. |
| Protection against spoofing |
device authentication |
| Communication loss detection |
after 36 s Detection time depends on the Jeweller or Jeweller/Fibra settings. |
| Anti-masking system |
detects attempts to block the detector view |
Power supply
| Battery |
4 × CR123A Pre-installed.
|
| Type |
Type C |
| Calculated battery life |
up to 3 years With Delay when entering feature disabled. |
| operating voltage range |
4−6.4 V⎓ |
| nominal operating voltage |
6 V⎓ |
| Quiescent current consumption at nominal voltage |
50 μA |
| Maximum current consumption at nominal voltage |
1 A |
| Full capacity |
3,200 mAh |
| Low battery voltage |
4.65 V⎓ |
| Low battery recovery volatage |
5 V⎓ |
| End of life battery voltage |
3.8 V⎓ Device is switched off. |
| End of life battery capacity |
3,080 mAh |
Enclosure
| Detector dimensions |
206 × 108 × 93 mm |
| Weight |
470 g |
| Operating temperature range |
from −25°C to +60°C |
| Operating humidity |
up to 95% |
| Protection class |
IP56 |
Colour
| Available colours | White |
Complete Set
| Contains |
MotionCam Outdoor Jeweller SmartBracket mounting panel Hood visor Installation kit 4 × CR123A battery (pre-installed) Quick start guide
|
Warranty
| Warranty Period | 24 months |
