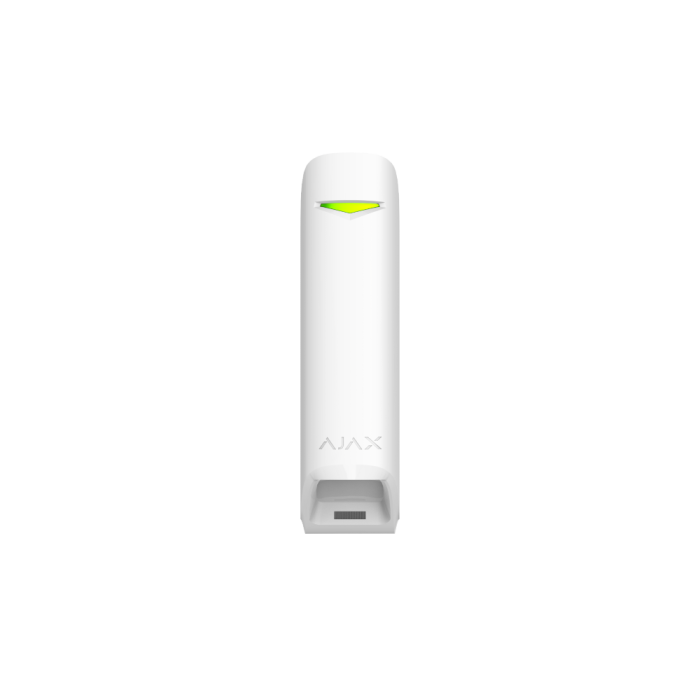

Ajax MotionProtect Curtain Jeweller (8PD) - White
Wireless IR curtain motion detector
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
Wireless curtain-type motion detector for protecting windows, doors and narrow routes. It creates a narrow detection field, making it useful where standard volumetric detection is not suitable. It is aimed at clean, quick installations where reliable detection and simple commissioning matter as much as the device itself.
Key features:
- Curtain motion detection
- Suitable for windows, doors and corridors
- Wireless Jeweller communication
- Adjustable sensitivity
Jeweller wireless communication - Tamper protection
- Remote testing and configuration
- Low-maintenance wireless installation
- False alarm reduction features
- Narrow beam/curtain-style protection
| Approval | Grade 2 (EN 50131), PD 6662:2017 |
|---|---|
| Category Type | Motion detectors |
| Colour | White |
| IP Rating | IP54 |
| System Type | Intruder |
| Clearance | No |
Write Your Own Review
Communication
| Jeweller communication technology |
Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
|
| Frequency bands |
866.0 – 866.5 MHz Depends on the sales region.
|
| Maximum effective radiated power (ERP) |
up to 20 mW Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio communication range |
up to 1,700 m Between the range extender and a hub in an open space. |
| Encrypted communication |
All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. |
Detection
| Sensitive element |
2 × PIR sensors |
| Motion detection distance |
up to 6–15 m When installed at a height of 2.4 m, and the Correlation Signal Processing feature is disabled. It also depends on the sensitivity level adjusted in the device settings. up to 6–8 m When installed at a height of 2.4 m, and the Correlation Signal Processing feature is enabled. It also depends on the sensitivity level adjusted in the device settings. |
| Motion detection angles |
horizontal — 6° vertical — 90° |
| Motion detection speed |
from 0.3 to 2.0 m/s The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility. |
| Sensitivity |
3 levels Adjusted by a PRO or a user with admin rights in Ajax apps. |
| Pet immunity | Install the detector upside down to prevent it reacting to domestic animals. |
| Temperature compensation |
Effective motion detection at temperatures from −10 °C to +40 °C. |
Sabotage protection
| Tamper alarm |
Notifications on attempts to detach the detector from the surface or remove it from the mounting panel. |
| Protection against spoofing |
device authentication |
| Communication loss detection |
after 36 s Detection time depends on the Jeweller or Jeweller/Fibra settings. |
Power supply
| Battery |
1× CR123A Pre-installed. |
Enclosure
| Dimensions |
134 × 44 × 34 mm with bracket 134 × 52 × 41 mm |
| Weight |
118 g |
| Operating temperature range |
from -10 °C to +40 °C |
| Operating humidity |
up to 75% |
| Protection class |
IP54 |
Colour
| Available colours | Black, White |
Complete Set
| Contains |
MotionProtect Curtain Jeweller SmartBracket mounting panel Bracket Installation kit CR123A battery (pre-installed) Quick start guide |
Warranty
| Warranty Period | 24 months |
