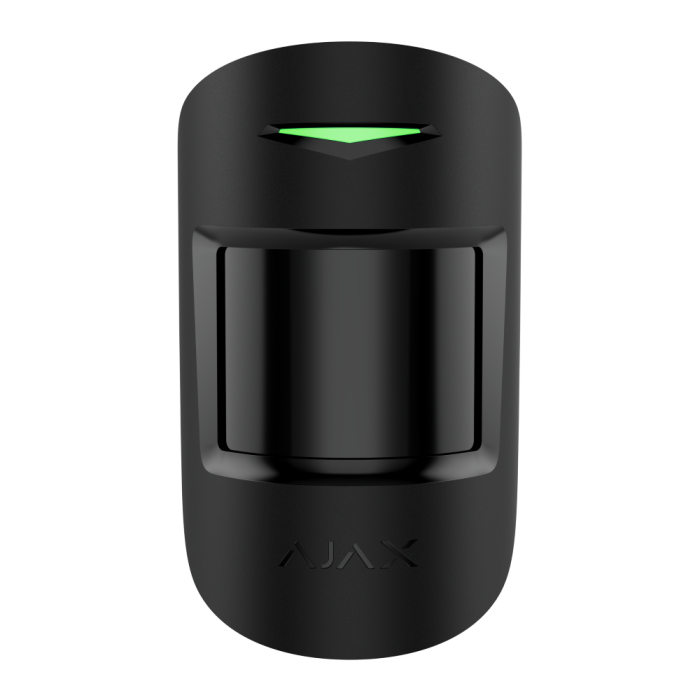

Ajax MotionProtect Plus U Jeweller (8EU) ASP - Black
Wireless PIR motion detector with an additional K-band microwave sensor
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
UK-focused wireless motion detector with PIR and microwave sensors. It is suited to indoor areas where additional filtering is needed to avoid false alarms. It is aimed at clean, quick installations where reliable detection and simple commissioning matter as much as the device itself.
Key features:
- PIR and microwave detection
- UK market version
- Improved false alarm filtering
- Wireless Jeweller communication
- Jeweller wireless communication
- Tamper protection
- Remote testing and configuration
- Low-maintenance wireless installation
- False alarm reduction features
| Approval | Grade 3 (EN 50131), PD 6662:2017 |
|---|---|
| Category Type | Motion detectors |
| Colour | Black |
| IP Rating | IP50 |
| System Type | Intruder |
| Clearance | No |
Write Your Own Review
Communication
| Jeweller communication technology |
Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
|
| Frequency bands |
868.0–868.6 MHz
|
| Maximum effective radiated power (ERP) |
up to 20 mW Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio communication range |
up to 1,200 m Between the range extender and a hub in an open space. |
| Encrypted communication |
All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. |
Detection
| Sensitive element |
1 × PIR sensor Operating frequency: 24 GHz. |
| Motion detection distance |
up to 12 m When installed at a height of 2.4 m. |
| Motion detection angle |
horizontal: 88.5° |
| Motion detection speed |
from 0.3 to 2.0 m/s The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility. |
| Sensitivity |
3 levels Adjusted by a PRO or a user with admin rights in Ajax apps. |
| Pet immunity |
weight: up to 20 kg |
| False alarm prevention |
SmartDetect Software algorithm. |
| Temperature compensation |
Effective motion detection at temperatures from −10 °C to +40 °C. |
Sabotage protection
| Tamper alarm |
Notifications on attempts to detach the detector from the surface or remove it from the mounting panel. |
| Protection against spoofing |
device authentication |
| Communication loss detection |
after 36 s Detection time depends on the Jeweller or Jeweller/Fibra settings. |
| Holding screw |
to secure the detector on SmartBracket |
Power supply
| Battery |
1 × CR123A Pre-installed.
|
| Type |
Type C |
| Calculated battery life |
up to 5 years |
| operating voltage range |
2.1−3.3 V⎓ |
| nominal operating voltage |
3 V⎓ |
| Quiescent current consumption at nominal voltage |
0.019 mA |
| Maximum current consumption at nominal voltage |
2.75 mA |
| Full capacity |
1,600 mAh |
| Low battery voltage |
2.5 V⎓ |
| Low battery recovery volatage |
2.7 V⎓ |
| End of life battery voltage |
2.1 V⎓ Device is switched off. |
| End of life battery capacity | 300 mAh |
Enclosure
| Detector dimensions |
110 × 65 × 50 mm |
| Weight of the white detector |
105 g |
| Weight of the black detector |
95 g |
| Operating temperature range |
from -10 °C to +40 °C |
| Operating humidity |
up to 75% |
| Protection class |
IP50, IK04 |
Colour
| Available colours | Black, White |
Complete Set
| Contains |
MotionProtect Plus U Jeweller SmartBracket mounting panel with holding screw CR123A battery (pre-installed) Installation kit Quick start guide
|
Warranty
| Warranty Period | 24 months |
