In stock
Product Code
38178.07.WH1
SKU
38178.07.WH1

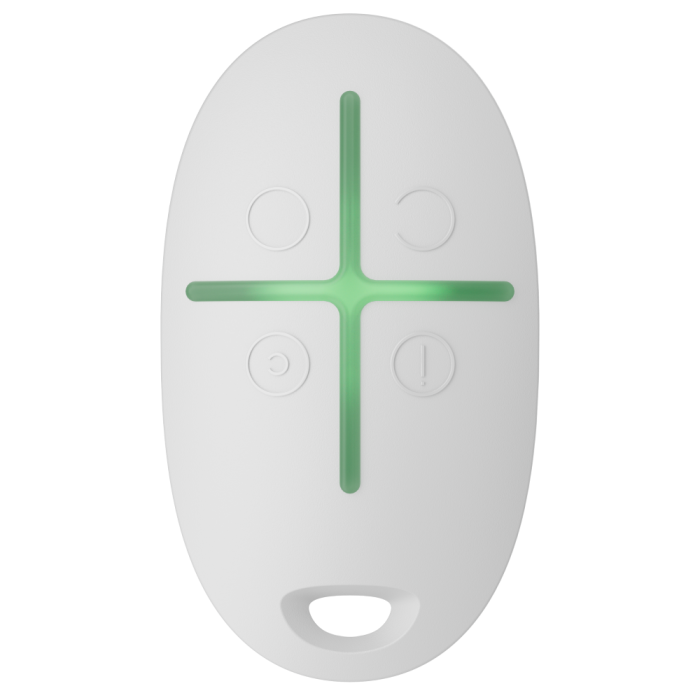

Ajax SpaceControl Jeweller (8EU) ASP - White
Wireless key fob with a panic button and control for security modes
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
Compact key fob for controlling Ajax security modes. It allows users to arm, disarm, activate Night Mode and trigger a panic alarm from a pocket device. It helps turn a technical security system into something customers can use confidently every day.
Key features:
- Arm, disarm and Night Mode buttons
- Panic alarm
- Compact key fob design
- Encrypted Jeweller communication
- Jeweller wireless communication
- Simple user control
- Works with Ajax apps and compatible hubs
- Secure encrypted communication
- Fast daily operation for end users
| Approval | Grade 2 (EN 50131), PD 6662:2017 |
|---|---|
| Category Type | Buttons & key fobs |
| Colour | White |
| IP Rating | IP50 |
| System Type | Intruder |
| Clearance | No |
Write Your Own Review
Communication
| Jeweller communication technology |
Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
|
| Frequency bands |
866.0 – 866.5 MHz Depends on the sales region. |
| Maximum effective radiated power (ERP) |
up to 20 mW Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio communication range |
up to 1,300 m Between the range extender and a hub in an open space. |
| Encrypted communication |
All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. |
Key features
| Number of buttons |
4
|
| Group management |
A user can select a security group that the key fob manages. |
| Assigning to a user |
When a key fob is assigned to a user, its events are sent to Ajax apps under the user’s name. The key fob has the same security mode management rights as the user. |
| Accidental press protection |
long or double press Available on key fobs with the firmware version 5.54.1.0 or higher manufactured from March 19, 2020. |
Power supply
| Battery |
1 × CR2032 Pre-installed. |
Enclosure
| Dimensions |
65 × 37 × 10 mm |
| Weight |
13 g |
| Operating temperature range |
from −25 °C to +50 °C |
| Operating humidity |
up to 95% |
| Protection class |
IP50, IK04 |
Colour
| Available colours | Black, White |
Complete Set
| Contains |
Ajax SpaceControl Jeweller CR2032 battery (pre-installed) Quick start guide |
Warranty
| Warranty Period | 24 months |
