Guardian for doors, windows, and valuables

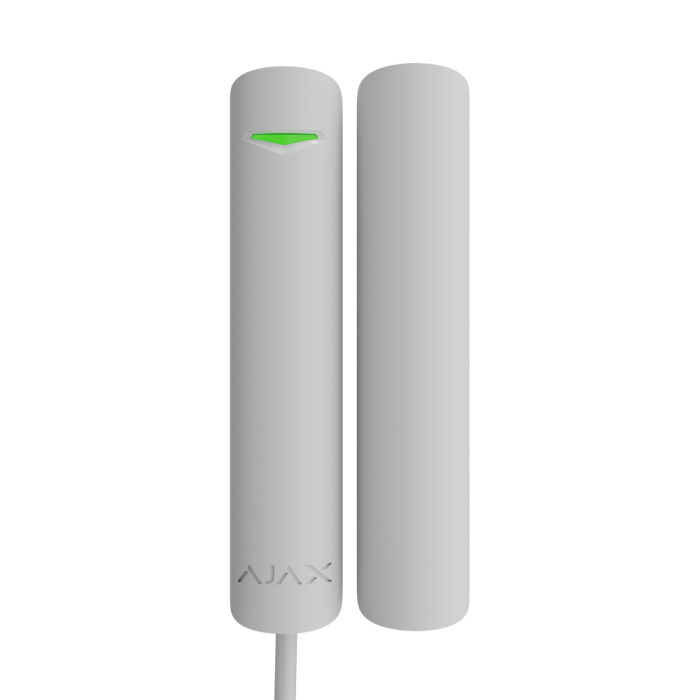

Superior DoorProtect Fibra is designed to detect intrusion and burglary attempts, offering comprehensive coverage for doors, windows, skylights, and vaults. Equipped with two reed switches as opening sensors, the detector features protection against chattering in its operation. Two magnets of different sizes provide more installation options. The device also detects shock and tilt with a built-in accelerometer, protecting the facility even when windows are in airing mode. All in line with the Ajax user experience, ensuring quick and easy device installation.

Discover future-proof hardware

Two reed switches
Accelerometer
Two magnets of different sizes
Tamper against detaching the detector from the surface
Terminals to connect a third-party NC detector
Holding screw to secure the detector

High-end Reed switches for reliable opening detection

Superior DoorProtect Plus Fibra features two durable reed switches, guaranteeing decades of trouble-free operation. Two reed switches allow the magnet to be positioned on either side of the sensor (right or left). Housed in resilient plastic capsules, these switches remain intact even in cases of drops or transportation, ensuring the detector’s effective functionality irrespective of magnet placement.

Magnetometer prevents sabotage

The integrated high-end magnetometer records local magnetic field data during calibration, allowing the sensor to identify and monitor the installed magnet. Immediate alarms are triggered by any changes in the magnetic field, providing protection against magnet spoofing. The straightforward calibration process and adjustment of sensitivity levels in the app ensure precise interference detection and eliminate false alarms. Plastic spacers in the mounting kit reduce the impact of metal surfaces when the detector is installed, for example, on the vault door.

Immediate detection of threats

The built-in accelerometer responds swiftly to shocks, detecting potential burglary attempts such as door forcing and vault breaking. The shock sensor has three levels of sensitivity, which can be adjusted to match the secured facility specifics. The detector can also ignore a single impact to minimize the risk of false alarms triggered by external factors. Whether there are vibrations from neighboring constructions or heavy passing traffic, the installer can choose the most appropriate settings for accurate detection.

Windows protection in an airing mode

The built-in accelerometer is designed to protect open windows, seamlessly adapting to diverse facility requirements. Installers can select a normal tilt angle for doors or windows, ranging from 5 to 25 degrees. The system swiftly detects even the slightest deviations from the usual position and provides customizable tilt detection durations, ranging from 1 second to 1 minute. In case the tilt angle surpasses the specified threshold for an extended period, the system raises an alarm.

Easy integration with third-party detectors

Superior DoorProtect Plus Fibra has terminals for connecting any third-party wired NC detector, enhancing the reliability of the entire system. For example, an installer can integrate an additional detector operating on a different principle, such as a roller shutter motion detector. When connected to Superior DoorProtect Plus Fibra, it promptly responds to alarms from detectors and cable breakage.

Use a detector as a doorbell

The Chime feature transforms the combination of an Ajax opening detector and siren into a shopkeeper’s bell. When the system is disarmed, the siren notifies about door openings with one of four available short sound signals. PRO users can adjust the volume and assign different signals for separate entrances, making it easy to recognize whether someone entered through the main or a back door.

Unique wired technology

Fibra is proprietary Ajax technology for secure two-way communication between devices and a hub or module that extends the Fibra line. Fibra features encryption and device authentication to prevent sabotage, spoofing, and data theft. The Fibra line supports all types of devices, including sirens, keypads, and detectors with photo verification.

Energy efficiency as a priority

Fibra communication requires minimum power consumption, with the detector consuming only up to 0.036 W at its peak. Fibra operates on the TDMA principle. Each device has a short time frame to exchange data with a hub, and its communication module remains inactive the rest of the time. This significantly reduces power consumption and helps avoid interferences even when multiple devices communicate simultaneously.

System supervision

All Ajax devices perform automatic self-diagnosis and report their states to the hub. Essential parameters, such as a tamper state, communication, power supply, and sensor statuses, are continuously monitored. The Ajax Cloud server controls communication between the hub and Ajax apps, ensuring instant notifications for ARCs, security companies, and users. In case of any malfunction or communication failure, an engineer is informed immediately to provide necessary services.

PRO is king

The myth about wired systems being difficult to install is busted. Ajax minimized an expensive, long, and dusty experience for PROs by developing an ultimate set of tools to make the process easy and flexible, from project design to client support and system maintenance. Everything for smooth and quick installation is included. Intuitive Ajax apps help make the device a part of the system, and each device can be reconfigured remotely at any moment. No programming required — everything is available out of the box.
