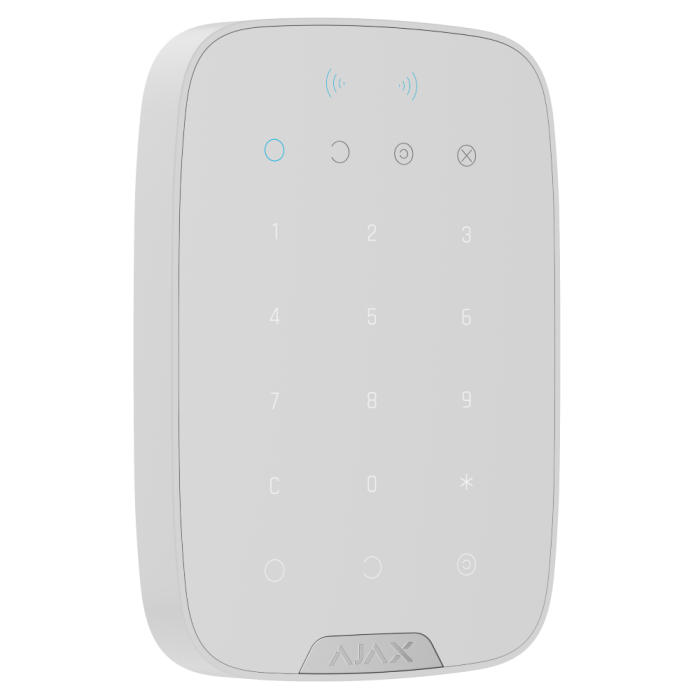

Ajax Superior KeyPad Plus G3 Jeweller (8EU) ASP - White
Wireless keypad with touch buttons, supporting authentication via Pass, Tag, and codes
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
Superior KeyPad Plus G3 Jeweller
Wireless Grade 3 keypad with touch buttons supporting authentication via Pass, Tag, and codes
Contactless control for high stakes. Now wireless.
Superior KeyPad Plus G3 Jeweller is the wireless keypad certified to Grade 3 requirements. Users can arm and disarm the system, activate Night mode, and manage security groups. The keypad supports Pass cards and Tag key fobs with virtually unhackable DESFire® chips, as well as various access codes, ensuring flexible authentication. The device communicates with the hub at a distance1 of up to 3000 m. All settings and updates can be managed remotely via Ajax apps.
Built to stand out
| Easy security mode management for the entire system or separate groups | Panic button, duress codes, protection against code guessing, card or key fob copying, and the use of unauthorized access devices |
| Support for authentication via Pass and Tag contactless access devices and codes | Adding to the system and installation within few minutes |
| Up to 4.5 years of operation on enhanced pre-installed batteries |
Authentication methods
KeyPad S Plus supports contactless access devices, such as Pass cards or Tag key fobs, as well as codes for user authentication. Access-related information is available in Ajax apps. All events, including user activity and authentication details, can be viewed in the app feed. The apps also allow admins to grant, revoke, restrict, or terminate access permissions to particular users in real time.
Сontactless Pass cards and Tag key fobs:
Support for DESFire® technology
Remote configuration of access devices
Protection against authentication via unauthorized access devices
Keypad auto wake up during entry delays
Codes:
Four types of codes: for registered users, for unregistered users, a keypad code, and an RRU code
Auto lock in case of an attempt to guess the code
Duress codes to simulate system disarming while sending a silent alarm to the monitoring station
Remote management: codes can be created, changed, or removed via Ajax apps
Keypad auto wake up during entry delays
Contactless access devices
Both Pass cards and Tag key fobs feature original DESFire® chips and provide identical functionality in different form factors. A single access device can control up to 13 security systems. Pass and Tag devices are sold separately in batches of three, 10, or 100 units.
Automation scenarios
Activation by security mode changes: for the entire system or specific security group
Activation by the panic button
Enhanced wireless technology
Superior Jeweller is a next-generation Ajax radio protocol developed for wireless devices of the Ajax Superior product line. It delivers stronger encryption, advanced frequency hopping, and outstanding energy efficiency. This makes Superior Jeweller the first-ever wireless communication technology to meet Grade 3 requirements.
Long-lasting performance
Up to 4.5 years of autonomous operation
Enhanced batteries from proven manufacturers
Pre-installation battery testing for reliability
Early low battery notifications
Auto wake up during entry delays for battery saving
Hassle-free installation and setup
| Installation | Setup | Configuration | Monitoring |
| Quick installation without enclosure disassembly Ready to operate straight out of the box Up to 4.5 years of operation on pre-installed batteries All necessary fasteners included in the complete set |
Adding to a hub via QR code Setup in minutes in an Ajax app — no programming required Access device connection within two minutes |
Configuration and testing remotely or on-site Remote management of codes, user access rights, and access devices |
Instant notifications about alarms and events Event log that shows who and when changed the security mode Real-time maintenance notifications |
| Approval | Grade 3 (EN 50131), PD 6662:2017 |
|---|---|
| Category Type | Keypad |
| Colour | White |
| IP Rating | IP30 |
| System Type | Intruder |
| Clearance | No |
Write Your Own Review
Communication
| Superior Jeweller data transfer protocol |
Proprietary wireless protocol for transmitting commands, alarms, and events. An upgraded version of the Jeweller radio protocol for Ajax Superior devices, ensuring compliance with Grade 3 (EN 50131). Key features: Two-way communication. Advanced sabotage protection. Enhanced block encryption with a dynamic key. Instant notifications. Remote control and configuration in Ajax apps. |
| Frequency bands |
865.0–868.0 MHz 868.0–868.6 MHz 868.7–869.2 MHz 869.4–869.65 MHz |
| Maximum effective radiated power (ERP) |
up to 20 mW Automatic power control to reduce power consumption and noise interference. |
| Radio signal modulation |
GFSK |
| Radio signal range |
up to 3,000 m Between detector and control panel (or range extender) in an open space. |
| Encrypted communication |
Adjusted by PRO or user with admin rights in the Ajax app. |
| Tilt sensor activation threshold | All the data stored and transmitted are protected by block encryption with a dynamic key. |
| Frequency hopping |
Radio communication uses frequency hopping to prevent interception and jamming. |
Key features
| Sensor type |
capacitive |
| Authentication methods |
access codes Tag key fobs Pass cards |
| Access codes |
keypad code - 1 per each Superior KeyPad Plus G3 Jeweller. user codes - 1 per user. The total number depends on the hub model. unregistered user codes - 1 per user not registered in an Ajax system. The total number depends on the hub model. duress codes - 1 per each Superior KeyPad Plus G3 Jeweller and 1 per each user. The total number depends on the hub model. |
| Contactless access |
DESFire® EV1, EV2, EV3 ISO 14443-А (13.56 MHz) |
| Arming without entering a code |
When enabled, this feature allows users to arm the facility without entering a code or presenting an access device. |
| Group security management |
Users can change the security mode of groups they have access to directly from the keypad. |
| Authorization confirmation with a passcode |
This feature activates two-factor authentication. When enabled, users must first present an access device (Pass or Tag) and then enter a passcode to confirm authorization. |
| Function button |
Operates in one of the following modes: panic - Sends an alarm to the central monitoring station and users. Also activates the sirens connected to the system. mute fire alarm - Mutes alarms triggered by interconnected fire detectors. |
| Indication of malfunctions and security mode |
When enabled, the keypad uses LED indicators to show the current security mode, as well as detector malfunctions or loss of communication with the hub. |
| ACE Type |
type B |
Sabotage protection
| Unauthorized access auto-lock |
The keypad locks if an incorrect code is entered or unverified access devices are used more than 3 times in a row within 1 minute. The lock duration can be adjusted by a PRO or user with admin rights in an Ajax app. |
| Tamper alarm | The system sends notifications about attempts to detach the keypad from the surface or remove it from the mounting panel. |
| Holding screw |
Secures the device on SmartBracket. |
| Protection against spoofing |
device authentication |
| Communication loss detection |
after 36 s Detection time depends on the Jeweller or Jeweller/Fibra settings. |
Power supply
| Battery | 4 × AA Pre-installed. |
| Type | Type C |
| Calculated battery life | Up to 3 years |
| Detector’s operating voltage range | 2.25-333 V= |
| Detector’s nominal operating voltage | 3 V |
| Quiescent detector’s current consumption at nominal voltage | 130 uA |
| Maximum detector’s current consumption at nominal voltage | 10.5 mA |
| Full capacity | 6,000 mAh |
| Low battery voltage | 2.5 V= |
| Low battery recovery volatage | 2.7 V= |
| End of life battery voltage | 2.25 V= |
| End of life battery capacity | 500 mAh |
Enclosure
| Detector dimensions | 165 x 113 x 20 mm |
| Weight of the black device | 270 g |
| Weight of the white device | 252 g |
| Operating temperature range | from -10 °C to +40 °C |
| Operating humidity | up to 75% |
| Protection class | IP30, IK04 |
Colour
| Available colours | Black, White |
Complete Set
| Contains | Superior KeyPad Plus G3 Jeweller SmartBracket mounting panel 4 AA batteries (pre-installed) Installation kit Quick start guide |
Warranty
| Warranty Period | 24 months |
