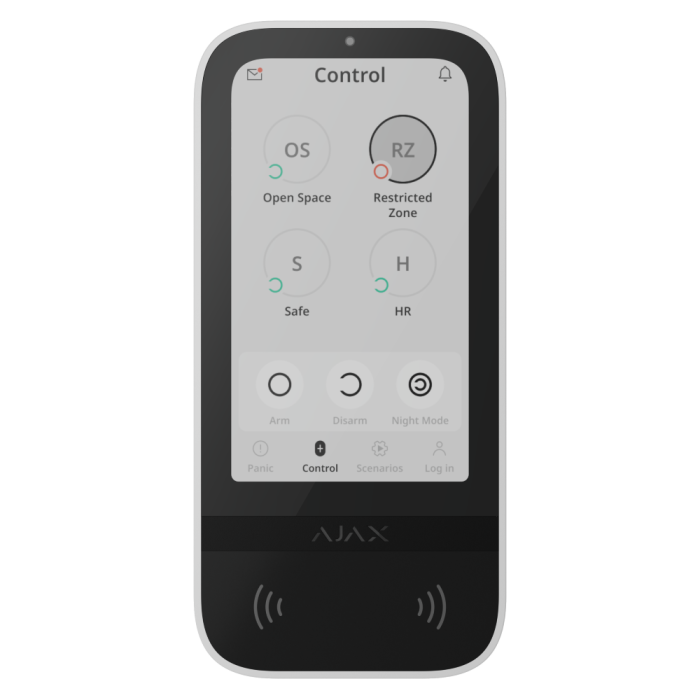

Ajax Superior KeyPad TouchScreen G3 Jeweller (8EU) ASP - White
Wireless keypad with a touch screen, supporting authentication via Pass, Tag, smartphones, and codes
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
Superior KeyPad TouchScreen G3 Jeweller
Wireless keypad with a touch screen, supporting authentication via Pass, Tag, smartphones, and codes
Convenient system control for high-security sites. Now wireless
Superior KeyPad TouchScreen G3 Jeweller combines effortless security and automation device management with professional-grade protection for high-risk facilities. Its intuitive interface resembles an Ajax app and supports multiple languages. A large display, DESFire® and BLE technologies, and various code options ensure both a convenient and secure experience. Users can view the latest alarms and events directly on the keypad screen, staying informed about all activity in the system. The keypad communicates with a hub at a distance1 of up to 2,500 m. All settings and updates can be managed remotely via Ajax apps.Built to stand out
| Security and automation control: state of each group and automation scenario shown on a large display |
Panic button, duress codes, protection against code guessing, card or key fob copying, and the use of unauthorized access devices |
| Support for authentication via smartphones, Pass and Tag contactless access devices, and codes |
Full system awareness — recent events on screen, overall system states, and sound and LED indication |
| Up to 1.5 years of operation on enhanced pre-installed batteries |
One device, three missions
Security managment
Easy group management
Security mode of each group on the screen
Night mode and security mode control of the entire system
Automation control
Separate tab for user convenience
Up to six devices or device groups on one screen
Automation device state visible on the screen
Complete system awareness
Latest alarms and events on the screen
On-screen notification specifying the cause of a malfunction when arming the system
Sound and LED notifications about alarms and events
Instant malfunction notifications
Authentication methods
Contactless Pass cards and Tag key fobs:
Support for DESFire® technology
Remote configuration of access devices
Protection against authentication via unauthorized access devices
Smartphones:
BLE reader for authentication via smartphone
Protection against authentication via unauthorized access devices
Remote configuration of access devices
Codes:
Four types of codes: for registered users, for unregistered users, a keypad code, and an RRU code
Auto lock in case of an attempt to guess the code
Duress codes to simulate system disarming while sending a silent alarm to the monitoring station
Remote management: codes can be created, changed, or removed via Ajax apps
Contactless access devices
Both Pass cards and Tag key fobs feature original DESFire® chips and provide identical functionality in different form factors. A single access device can control up to 13 security systems. Pass and Tag devices are sold separately in batches of three, 10, or 100 units.
Enhanced wireless technologies
Ajax systems use secure two-way communication powered by proprietary radio protocols. Superior Jeweller delivers Grade 3 level reliability with strong encryption, advanced frequency hopping, and outstanding energy efficiency. Wings complements it by ensuring devices always have the latest firmware through regular updates.
Long-lasting performance
Up to 1.5 years of autonomous operation
Enhanced batteries from proven manufacturers
Pre-installation battery testing for reliability
Possibility to connect an external 12 V⎓ power supply
Early low battery notifications
Automatic brightness adjustment for battery saving
Hassle-free installation and setup
| Installation | Setup | Configuration | Monitoring |
| Quick installation without enclosure disassembly Channel raceway that provides a secure 12 V⎓ cable fit Markings on the mounting panel for even installation Up to 1.5 years of operation on pre-installed batteries All necessary fasteners included in the complete set |
Adding to a hub via QR code Fast setup via an Ajax app — no programming required Access device connection within two minutes Code creation in less than two minutes Over-the-air updates |
Configuration and testing remotely or on-site Remote management of codes, user access rights, and access devices |
Instant notifications about alarms and events Real-time maintenance notifications |
| Approval | Grade 3 (EN 50131), PD 6662:2017 |
|---|---|
| Category Type | Keypad |
| Colour | White |
| System Type | Intruder |
| Clearance | No |
Write Your Own Review
Communication
| Superior Jeweller communication technology |
Proprietary wireless communication technology to transmit commands, alarms, and events. Key features: Two-way communication. Advanced sabotage protection. Block encryption featuring a dynamic key. Instant notifications. Remote configuration in the Ajax apps. |
| Frequency bands |
865.0–868.0 MHz 868.0–868.6 MHz 868.7–869.2 MHz 869.4–869.65 MHz |
| Maximum effective radiated power (ERP) |
up to 20 mW Automatic power control to reduce power consumption and noise interference. |
| Radio signal modulation |
GFSK |
| Radio signal range |
up to 2,500 m Between detector and control panel (or range extender) in an open space. |
| Encrypted communication |
Adjusted by PRO or user with admin rights in the Ajax app. |
| Tilt sensor activation threshold | All the data stored and transmitted are protected by block encryption with a dynamic key. |
| Frequency hopping |
Radio communication uses frequency hopping to prevent interception and jamming. |
| Wings communication technology |
Proprietary wireless communication technology to transmit large data packets. Key features: Two-way communication. Block encryption featuring a dynamic key. Advanced sabotage protection. Reloading the data packages in case of transmission errors. |
| Frequency bands |
865.0–868.0 MHz 868.0–868.6 MHz 868.7–869.2 MHz 869.4–869.65 MHz |
| Radio signal range |
up to 1,700 m Between keypad and hub (or range extender) in an open space. |
| Encrypted communication |
All stored and transmitted data is protected with AES-128-GCM encryption, ensuring both confidentiality and integrity. |
| Frequency hopping |
Radio communication uses frequency hopping to prevent interception and jamming. |
Display
| Diagonal |
5″ |
| Matrix type |
IPS |
| Resolution |
480 × 854 px |
| Sensor |
capacitive |
| Brightness settings |
automatic manual If Auto adjust is enabled, the display brightness depends on the light conditions. This saves battery power. |
| Backlight lifetime |
30,000 hours Guaranteed backlight lifetime when the Always active display toggle is enabled. It can be adjusted in Ajax apps and activates only when external power is connected. |
Key features
| Panic buttons |
panic fire auxiliary help Sending an alarm or calling for help from the separate keypad tab. |
| Control |
codes Tag key fobs Pass cards smartphone (Bluetooth) |
| Contactless access |
DESFire® EV1, EV2 ISO14443-А (13.56 MHz) |
| Access codes |
up to 200 personal codes One code per each user. The number of personal access codes depends on the hub model. 1 keypad code Per each Superior KeyPad TouchScreen G3 Jeweller. |
| Duress codes |
up to 200 personal codes One code per each user. The number of personal duress codes depends on the hub model. 1 keypad code Per each Superior KeyPad TouchScreen G3 Jeweller. |
| Codes for unregistered users |
up to 99 codes for unregistered users For people who are not registered in the Ajax system. The number of such codes depends on the hub model. |
| Arming without entering a code |
The enabled feature allows the user to arm the system without entering a code or presenting the access device. |
| Group management |
Changing the security mode of the groups to which the user has access from the keypad’s display. |
| Scenarios management |
A separate keypad tab contains up to 6 buttons, and each one can control one automation device or a group of devices. |
| Indication of malfunctions and security modes |
display logo sound indication If enabled, the logo lights up red continuously or when the system or group is armed. Superior KeyPad TouchScreen G3 Jeweller indication is shown on the display only when it is active. Built-in buzzer notifies about alarms, door openings and entry/exit delays. |
| Fire alarm muting |
Turns off the fire detectors alarm, including the interconnected alarm. |
| User pre-authorization |
When the feature is enabled, viewing the current system status and control screen is unavailable. For access, the user must pre-authorize: enter a code or present a personal access device to the keypad. |
| Contactless authorization with a smartphone |
A smartphone with the installed Ajax app and Bluetooth Low Energy (BLE) support can be used instead of Tag or Pass to authorize a user. BLE is a radio protocol with low power consumption. The keypad supports Android and iOS smartphones with BLE 4.2 and higher. |
| Auto screen wakeup |
The keypad wakes up automatically when approaching it. The approaching distance can be adjusted in the app. |
| Remote firmware update |
When a new firmware is available, an admin or PRO with the rights to configure the system can run the update in Ajax apps. The keypad must be connected to an external power supply to update the firmware. |
| ACE Type |
type B |
Sabotage protection
| Unauthorized access auto-lock |
The keypad locks if an incorrect code is entered or unverified access devices are used more than 3 times in a row within 1 minute. The lock time is adjusted by PRO or user with admin rights in the Ajax app. |
| Tamper alarm | Notifications on attempts to detach the keypad from the surface or remove it from the mounting panel. |
| Holding screw |
To secure the keypad on SmartBracket. |
| Protection against spoofing |
device authentication |
| Communication loss detection |
after 36 s Detection time depends on the Jeweller or Jeweller/Fibra settings. |
Power supply
| Battery | 4 × AA Pre-installed. |
| Type | Type C |
| Calculated battery life | Up to 1.5 years |
| Operating voltage range | 10.5-14 V= |
| Nominal operating voltage | 12 V= |
| Quiescent current consumption at nominal voltage | 46 uA |
| Maximum current consumption at nominal voltage | 1.5 mA |
| Full capacity | 2,650 mAh |
| Low battery voltage | 6.6 V= |
| Low battery recovery volatage | 8.1 V= |
| End of life battery voltage | 4.92 V= |
| End of life battery capacity | 350 mAh |
Enclosure
| Detector dimensions | 172 x 82 x 26 mm |
| Weight | 327 g |
| Operating temperature range | from -10 °C to +40 °C |
| Operating humidity | up to 75% |
Colour
| Available colours | Black, White |
Complete Set
| Contains | Superior KeyPad TouchScreen G3 Jeweller SmartBracket mounting panel 6 АА batteries (pre-installed) Installation kit Quick start guide |
Warranty
| Warranty Period | 24 months |
