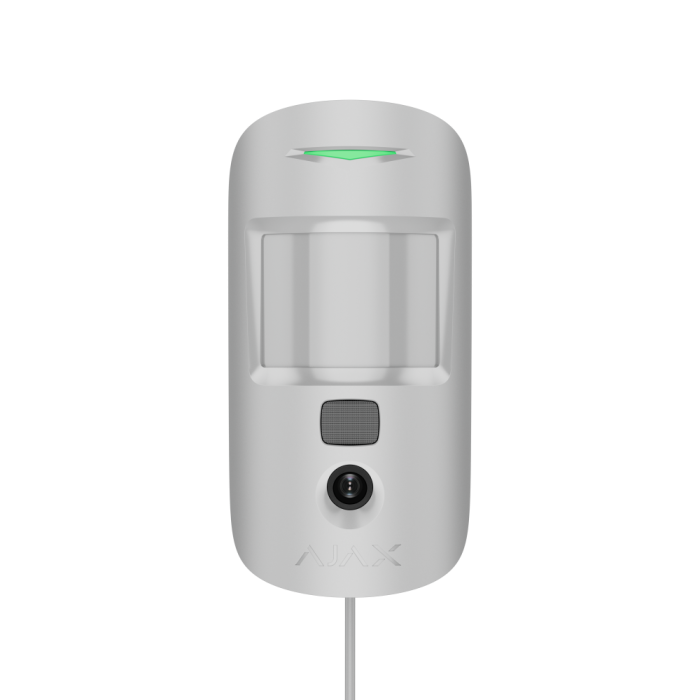

Ajax Superior MotionCam (PhOD) Fibra ASP - White
Wired PIR motion detector with extended photo verification possibilities
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
Superior MotionCam (PhOD) Fibra
Wired PIR motion detector with extended photo verification possibilities
Lightning-fast alarms. Verified.
Superior MotionCam (PhOD) Fibra has a built-in camera that takes photos once the detector is triggered. It needs just 9 seconds to show the actual situation on the scene. With visual evidence available in Ajax apps, the security company can quickly check whether the threat is real to respond accordingly. Photo verification relieves users of unnecessary anxiety and security companies of false patrol calls. It takes one tap for the user to take an on-demand photo at any time to monitor the house's state. Also, the detector can automatically take pictures by an alarm of another device in the system, by a specific schedule, and by arming or disarming.
Peace of mind on demand
Superior MotionCam (PhOD) Fibra needs just a few seconds to show the actual situation on the scene and dispel the user's doubts in case of an alarm. It takes one tap in the Ajax app to take an on-demand photo. The detector can also automatically take pictures at specific times, when security mode changes, or when selected devices in the system activate an alarm.
Privacy first
Strict privacy
MotionCam takes photos only in case of an alarm. The detector software architecture does not support on-demand photos. Only users with access to the event feed in Ajax apps can see the photo.
Encryption and GDPR
Photos are encrypted at every stage of transmission. Only system users can access the virtual Ajax Cloud storage and view photos. While stored, no photos are processed or analysed. The Ajax Cloud service is hosted on geographically distributed servers that meet the General Data Protection Regulation (GDPR) requirements.
Detailed event log
The event log records 500 recent events within the system. The data is explicit with the device, time, and event description. It helps reconstruct the actual event and find the causes to obtain comprehensive information for the police or an insurance company.
No intruder goes unnoticed
| PIR Sensor | All Ajax motion detectors use PIR sensors by Excelitas Technologies — a field-leading American manufacturer specializing in designing and producing optronic components since 1931. Ajax Systems constantly proves the sensor's Superior quality at the production stage: we test 100% of manufactured devices. Wrapped into Ajax technologies, it brings the utmost accuracy of intrusion detection. |
| Special lens | The pattern of the Fresnel lens sections is designed to differentiate between the IR diagrams of a human, animal, and thermal noise. Large lens sections capture radiation at an adult's head and torso level. Smaller sections make the diagram more detailed. The lens provides the detector with accurate information about the thermal object in the detection zone and the nature of its movement. |
| Thermal interferences filter | We processed thousands of thermal patterns caused by humans, animals, and the environment to develop the SmartDetect software algorithm. In armed mode, the detector constantly analyses the thermal diagram from the PIR sensor, including the IR radiation intensity, thermal spot size, movement speed, time spent in the detection zone, and other parameters. The algorithm identifies false alarm markers instantly and with high accuracy. As a result — the detector accurately responds to human motion without false alarms. |
| Temperature compensation | Temperature compensation is a software mechanism keeping the thermal diagram contrast even if the ambient temperature is close to the temperature of the human body. With each ambient temperature measurement, the detector corrects the PIR sensor data according to the coefficient table stored in its memory. The detector is effective over the entire operating temperature range. |
| Sensitivity level | The detector can adapt to the conditions of a particular facility, considering possible thermal interference or pets. The sensitivity setting changes the set of markers by which false alarms are filtered. Low sensitivity makes the detector less likely to respond to an active pet. A high sensitivity will raise the alarm in case of any motion in the detection zone. |
| Professional intallation | With the correct installation at the height of 2.4 m and lens direction perpendicular to an alleged intrusion path, the detector provides an accurate thermal diagram and pet immunity. It instantly responds to a real threat, minimising false alarms caused by animals weighing up to 20 kg and below 50 cm in height. |
Discover future-proof hardware
Fresnel lens
PIR sensor
Camera
IR illumination in low light conditions
Backup battery
SmartBracket mounting panel with removable terminal board
Two tampers
Holding screw to secure the detector on SmartBracket
Unique wired technology
Fibra is proprietary Ajax technology for secure two-way communication between devices and a hub or module that extends the Fibra line. Fibra features encryption and device authentication to prevent sabotage, spoofing, and data theft. The Fibra line supports all types of devices, including sirens, keypads, and detectors with photo verification.
Energy efficiency as a priority
Fibra communication requires minimum power consumption. Also, MotionCam is hardwired with a backup battery to power the sensor, LED indicator, and camera during alarms. The battery has an optimized charging algorithm which uses the minimum energy required to fully recharge without affecting other connected devices.
Sabotage-resistant
All Ajax devices perform automatic self-diagnosis and report their states to the hub. Essential parameters, such as a tamper state, communication, power supply, and sensor statuses, are continuously monitored. The Ajax Cloud server controls communication between the hub and Ajax apps, ensuring instant notifications for ARCs, security companies, and users. In case of any malfunction or communication failure, an engineer is informed immediately to provide necessary services.
Tamper alarm
The enclosure has two tamper buttons, which notify the security company and users once the device is dismantled from the mount.
Data encryption
All data the system stores and transmits is protected by block encryption featuring a dynamic key. Encryption makes it extremely difficult to reprogram the device, replace, or steal the data.
Data-rich notifications
An Ajax system instantly notifies about alarms and events with informative push notifications: security companies and users know exactly which device triggered, when and where it happened.
Regular polling
The device regularly exchanges data with the hub. The system controls each device state and reports if there is a malfunction or connection loss.
Device authentication against spoofing
The hub checks the device’s unique parameters for authentication during each communication session. If any parameter fails the check, the hub ignores device commands.
Data backup in case of connection loss
When the Fibra line breaks during the sabotage attempts, the detector continues to operate from a built-in battery. Alarms with photo verifications will be stored in the detector's buffer memory. Once the connection with the hub gets restored, all data is sent to Ajax apps and CMS.
PRO is king
The myth about wired systems being difficult to install is busted. Ajax minimized an expensive, long, and dusty experience for PROs by developing an ultimate set of tools to make the process easy and flexible, from project design to client support and system maintenance. There is no need to disassemble the device for installation. Intuitive Ajax apps help quickly make the device a part of the system, and each device can always be reconfigured remotely without site visits. No need for programmers — everything is available out-of-box.
| Installation | Setup | Configuration | Monitoring |
| With the SmartBracket panel, an installer can effortlessly mount the device on the wall. The installation kit includes all the necessary fasteners. There is no need to disassemble the device: the board with terminals is placed outside the enclosure under SmartBracket to eliminate hardware damage during installation. The board is removable, which makes the whole process more comfortable. For cable management, there are bracings inside SmartBracket to secure the wires with ties. The detector can be installed sideways: the enclosure has two tampers on the left and right sides. |
The device is paired with the hub automatically via Fibra line scanning. This tool is available in the desktop or mobile PRO apps. An installer only needs to name the device and assign it to the room and security group. The device can also be added by scanning the QR code or entering its ID manually. | Intuitive Ajax apps provide remote set-up and all detector information from anywhere the Internet is available, on a smartphone or PC. An installer can remotely change the settings and provide services in-time. No need to visit the object. | Superior MotionCam Fibra has two-way communication and ultimate informativeness. The security company will receive an alarm notification in less than a second. Notifications include all the necessary information: name of the device, time of the event, and even the exact room where the device is located. CMS also receives photo verification, capturing the reason for the alarm. |
| Approval | Grade 2 (EN 50131), PD 6662:2017 |
|---|---|
| Category Type | Motion detectors |
| Colour | White |
| IP Rating | IP50 |
| System Type | Intruder |
| Clearance | No |
Write Your Own Review
Communication
| Fibra communication technology | Proprietary wired communication technology. Fibra combines the reliability of wires with the freedom of radio connection. It features: Two-way communication. Advanced anti-sabotage. Instant notifications. Remote configuration in the Ajax apps. |
| Line connection |
4-core cable |
| Fibra line length |
up to 2,000 meters When using the U/UTP cat.5 twisted pair cable. |
Detection
| Sensitive elements | PIR sensor |
| Motion detection distance |
up to 12 m When installed at the height of 2.4 m |
| Motion detection angles |
horizontal: 88.5° |
| Motion detection speed |
from 0.3 to 2.0 m/s The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility. |
| Sensitivity |
4 levels Adjusted by a PRO or a user with admin rights in the Ajax app |
| Pet immunity | weight: up to 20 kg height: up to 50 cm |
| False alarm prevention |
SmartDetect Software algorithm. |
| Temperature compensation |
Effective motion detection at temperatures from −10°C to +40°C. |
Photo verification
| Photo by alarm | A built-in camera is activated if the detector is armed and motion is detected. |
| Photo on demand |
The user takes pictures at any time or when the detector is armed (depending on settings). The feature is disabled by default. |
| Photo by scenario |
The detector’s camera takes pictures automatically when other Ajax detectors are triggered. The feature is disabled by default. |
| Photo by schedule |
The detector automatically takes photos at a specified time. This feature is available for hubs with firmware version OS Malevich 2.19 or higher. |
| Photo by arming/disarming |
The detector automatically takes photos when the security state is changed. |
| Adjustable photo resolution | 640 × 480 px 320 × 240 px (by default) 160 × 120 px Adjusted by PRO or user with admin rights in the Ajax app. |
| IR backlight | For night photography and low light conditions. |
| Series of pictures | from 1 to 5 snapshots Adjusted by a PRO or user with admin rights in an Ajax app. |
| Photo delivery time | up to 7 s — 160 × 120 px resolution up to 9 s — 320 × 240 px resolution up to 20 s — 640 × 480 px resolution Photo delivery time depends on the image resolution selected in the device settings. |
Sabotage protection
| Tamper alarm | 2 tamper buttons Both are needed to fasten the left or right side of the detector’s mounting panel. The system receives notifications about attempts to detach the device from the surface or remove it from the mounting panel. |
| Protection against spoofing |
device authentication |
Power supply
| Detector’s operating voltage range |
7−30 V⎓, up to 367 mW The detector is powered by the control panel. |
| Detector’s nominal operating voltage |
24 V= |
| Quiescent detector’s current consumption at nominal voltage |
0.569 mA |
| Maximum detector’s current consumption at nominal voltage |
15.3 mA |
AUX Power supply
| Sealed battery |
LTO AA It is used when the detector takes photos, activates an IR illumination, and transmits an alarm. The battery is charged from the Fibra line. |
| Detector’s nominal operating voltage |
2.4 V⎓ The detector is powered by the sealed battery. |
| Quiescent detector’s current consumption at nominal voltage |
0.001 µA |
| Maximum detector’s current consumption at nominal voltage |
568.7 µA |
Enclosure
| Detector dimensions | 135 x 70 x 66 mm |
| Weight of the black device | 141 g |
| Weight of the white device | 160 g |
| Operating temperature range | from -10 °C to +40 °C |
| Operating humidity | up to 75% |
| Protection class | IP50, IK04 |
Colour
| Available colours | Black, White |
Complete Set
| ContainsSuperior MotionCam (PhOD) Fibra SmartBracket mounting panel Installation kit Quick start guide |
Superior MotionCam (PhOD) Fibra SmartBracket mounting panel Installation kit Quick start guide |
Warranty
| Warranty Period | 24 months |
