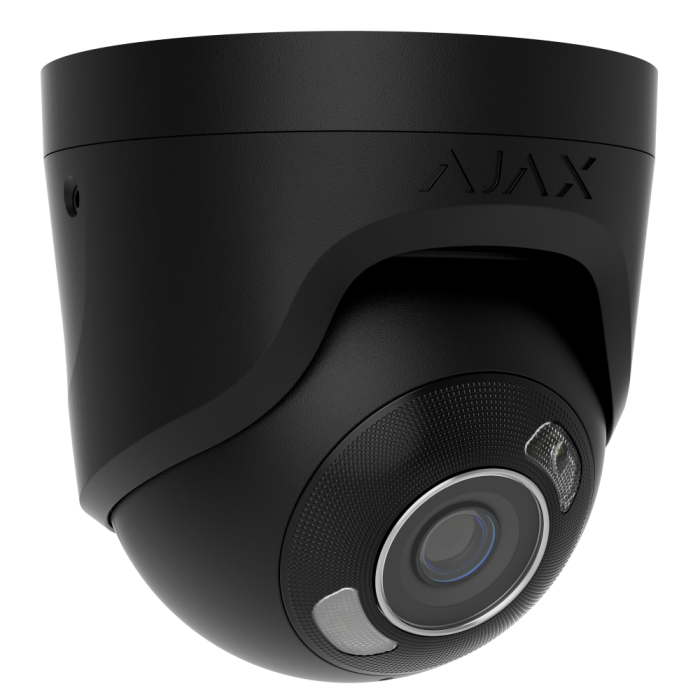

Ajax TurretCam HL (5 Mp/2.8 mm) ASP - Black

In stock
Product Code
126260.197.BL1
SKU
126260.197.BL1

Ajax TurretCam HL (5 Mp/2.8 mm) ASP - Black

Wired AI-powered security IP camera with a 110° viewing angle, hybrid illumination, True WDR, microphone, and PoE/12 V. For outdoor and indoor use.

DELIVERY

We always aim to same day dispatch on all orders received before 2.30pm.

Read more about our delivery policy

TRADE COUNTER

Firesense also offer the ability to collect your order from our trade counter.

Read more about our trade counter

Ajax TurretCam HL (5 Mp/2.8 mm)

  TurretCam HL TurretCam
IR Illumination Yes Yes
White Light Illumination Yes ---



AI-powered surveillance with hybrid illumination for color clarity

TurretCam HL redefines video surveillance with precise motion detection and AI-powered recognition of people, vehicles, and animals. The hybrid illumination technology adapts to lighting conditions, switching from infrared to white light to capture clear, full-color footage even in complete darkness. When triggered, the white light also acts as an active deterrent. As part of the Ajax system, the camera coordinates smoothly with intrusion, fire, and automation devices. Everything is controlled through a single Ajax app, ensuring secure access and data protection.

Full-color visibility even in the dark

Hybrid illumination in TurretCam HL cameras automatically switches between infrared and white light based on object recognition or motion detection. This ensures high image quality in low-light conditions and at night. The feature provides full-color footage that helps identify clothing, vehicle color, or other critical details. The sudden white light can also act as a deterrent, making intruders aware they have been spotted.

Tailored lens for any scene

Select from a variety of lens options to match your installation needs. Use wide-angle lenses for open areas such as building perimeters, or choose a narrower view for corridors and compact spaces. Higher resolution provides better coverage and detail over extensive areas, while lower resolution is ideal for limited spaces where ultra-high detail is not a priority.

Balanced lighting in every frame

Ajax cameras easily adapt to changing lighting conditions thanks to True WDR. This smart technology, involving hardware and software, corrects uneven lighting in complex scenes, frame by frame, in real time. True WDR provides excellent video quality with clear details and is configured in Ajax apps. The process is simple and allows for instant enhancement in video quality.

Camera empowered by AI

Ajax cameras offer AI-powered object recognition for efficient event recording and storage. Users can configure recording based on their needs, from continuous to triggered by motion or AI detection. The settings help capture critical events, such as a vehicle entering a parking area or a person crossing a restricted zone. This helps to reduce unnecessary footage and makes it easier to review recordings.
AI processing takes place directly in the camera, eliminating the need for additional equipment or subscriptions.
Both users and security personnel can easily monitor spaces via a smartphone, receiving instant notifications when movement is detected — no specialized security training required.

Precise video recording with built-in motion detection

Optimize your video archive with intelligent motion detection. Configure movement tracking within specific zones at the pixel level, ensuring that only relevant activity is recorded when movement occurs in the selected area. The strict event filtering helps save storage space and streamlines archive navigation.

Complete awareness with a customizable video wall

Keep the entire site in view on a single screen. The video wall brings together streams from multiple cameras — even across different spaces — so users can monitor several viewpoints at once. Tiles can be rearranged anytime as priorities change. The video wall is available locally on a connected display via Ajax NVR's built-in VMS or remotely via Ajax apps for smartphones, laptops, desktops, and TVs.

Smooth archive navigation

Ajax apps make finding recorded events faster than ever. Thanks to our proprietary JetSparrow technology, the system responds instantly, allowing for smooth playback and effortless navigation through the event timeline. Users may tap any event to jump straight to the relevant footage, filter recordings by date or object type, and export clips in seconds — all within a single, intuitive interface.

Integrated system. Synchronized response.

Ajax video surveillance is effective on its own and becomes even more capable when integrated with other Ajax solutions. Cameras can activate light and sound deterrence, provide instant HD visual verification of alarms, and even perform the role of motion detectors. All devices operate as a unified system, managed through a single app, and respond automatically to events.

Siren activation upon detection

When a video device detects motion or an AI-recognized object, the system can automatically activate sirens added to the hub to sound an alert. Users can enable the feature individually for each video device and configure which specific events will activate sirens per camera.

Passwordless authentication is key]

Ajax video devices do not use default passwords, eliminating a common system vulnerability. Instead, passwordless authentication via the mTLS protocol ensures that TurretCam HL can be connected to only one space.
Each cloud-endpoint interaction is authenticated through encrypted certificates without password-related risks. Adding TurretCam HL via Ajax apps is effortless and makes the installation process seamless and secure.

Protect sensitive areas with privacy zones

Enhance privacy by configuring privacy zones to selectively hide specific parts of the frame. For example, a safe within the camera's view can be excluded from recording, while surrounding activity remains visible. This feature ensures that sensitive and confidential information remains strictly private, which is especially suitable for high-security environments.

Rapid and encrypted data transfer

JetSparrow is the heart and brain of Ajax video transmission, storage, and management. We developed this proprietary video transmission technology to deliver an ultra-fast VMS experience. With JetSparrow, navigating through the local archive feels as smooth as browsing cloud storage. As a result, surfing the archive becomes remarkably efficient, and the live view initiates without delay.

Easy integration through ONVIF® and RTSP

Ajax video devices are ONVIF® conformant and support RTSP. This opens up numerous opportunities to upgrade and retrofit existing video setups with advanced security features. Ajax cameras and NVRs connect to third-party surveillance or video management systems (VMS) in just a few taps — no special tricks, no extra effort. A wizard tool in Ajax apps simplifies the configuration process by automatically retrieving all necessary network data. Enjoy smooth streaming and flexible image configurations, whether building a new setup or expanding an existing one. With Ajax, you're free to design the system your way.

Hassle-free installation and setup

Adding to the system Installation Setup Monitoring
Adding to the system via QR code — no plugins or web interface required Minimal disassembly for quick setup
Complete set with all necessary fasteners
Configuration and testing in Ajax apps — no programming required
Conformance with ONVIF® Profile S
RTSP support
Motion detection zones adjustable via Ajax apps
Remote control via Ajax apps
Real-time system health monitoring with automatic state checks
A complete ecosystem of Ajax apps for any device: smartphone, laptop, desktop, or TV
Customizable video wall for real-time monitoring
Attributes
Approval NDAA
Camera Shape Turret
Category Type Turret Cameras, Wired Cameras
Colour Black
IP Rating IP66
Lens 2.8mm
Megapixel 5MP
Powered By PoE, 12Vdc
System Type CCTV
Clearance No
Write Your Own Review
You're reviewing:Ajax TurretCam HL (5 Mp/2.8 mm) ASP - Black

Camera

Image sensor
5 MP CMOS, 1/2.8" type
Lens focal length
2.8 mm
Maximum aperture
f/1.6
Lens iris type
fixed
Lens focal type
fixed
Field of view
horizontal: 100–110°
vertical: 50–60°
diagonal: 125–135°
DORI distance
Detection: 65 m
Observation: 26 m
Recognition: 13 m
Identification: 6.5 m
Maximum illumination distance
white LED: up to 50 m
IR LED: up to 50 m
Intelligent lighting control automatically adjusts the intensity of IR LEDs in real time to prevent overexposure. This ensures clear visibility of objects at varying distances — whether close to or far from the camera — in low-light conditions.
Minimum illumination
color: 0.005 lx
B/W: 0 lx
Signal-to-noise ratio (SNR)
more than 52 dB



Video

Resolution
5 MP (2880 × 1620)
4 MP (2560 × 1440)
3 MP (2304 × 1296)
2 MP (1920 × 1080)
0.6 MP (1024 × 576)
Frame rate
up to 20 fps (Linear)
up to 15 fps (HDR)
Image rotation
0°, 180°
Video codec
H.265, H.264
Dynamic range
120 dB (True WDR)
Storage microSD
Ajax NVR
Ajax NVR
Camera supports microSD up to 256 GB. The memory card should be Class V30 or faster. The card is not included in the complete set.



Audio

Built-in microphone
With the corresponding settings, the camera can record audio at the scene.
Audio codec
G711-ULAW, G711-ALAW, G726, G722



Intelligent video analytics

Motion detection
The camera detects motion using software image frame analysis.
AI object detection
People
Pets
Vehicles



Network

Port
1 × RJ-45 self-adaptive Ethernet (10/100 Mbps)
Protocol
HTTP, HTTPS, TCP/IP, IPv4, IPv6, SNMP, RTSP, UDP, DHCP, DNS, DDNS
Interoperability
ONVIF® (Profile S)
Ajax cameras and NVRs can be integrated into third-party video management systems (VMS).



Key features

Video protocol

JetSparrow
Fast and encrypted peer-to-peer video protocol developed by Ajax Systems.
Visual verification of Ajax alarms
The system allows you to configure a scenario according to which Ajax detectors trigger selected cameras to start recording. The recorded event is immediately delivered to the mobile or desktop monitoring app.
Privacy Advanced privacy controls ensure a high level of personal data protection. All access rights — including those for mobile app users, installers, and monitoring company operators via Ajax PRO Desktop — are fully configurable by the device owner. This guarantees that only authorized parties can access video streams, event history, or device settings, in accordance with the owner’s preferences.



Sabotage protection

mTLS
Encrypted connection for data protection.
Authentication
via Ajax Cloud
Secure Boot
Protection against firmware spoofing.
OTA signature verification
Secure automatic firmware update.



Power supply

PoE standard
802.3at/af, 36–57 V, Class 3
PoE power consumption
maximum: up to 7.2 W
average: up to 6.9 W
Power supply unit
12 V⎓ ± 20%, 1 А
12 V DC power consumption
maximum: up to 6.3 W
average: up to 6 W



Enclosure

Dimensions
103 × 98 × 98 mm
Weight
475 g
Operating temperature range
from −30 °C to +60 °C
Operating humidity
up to 90%
Protection class
IP65, IK08



Complete set

Contains TurretCam HL (5 Mp/2.8 mm)
Installation template
Installation kit
Quick start guide
