Apollo XP95 Zone Monitor Module Multiple Device Iso

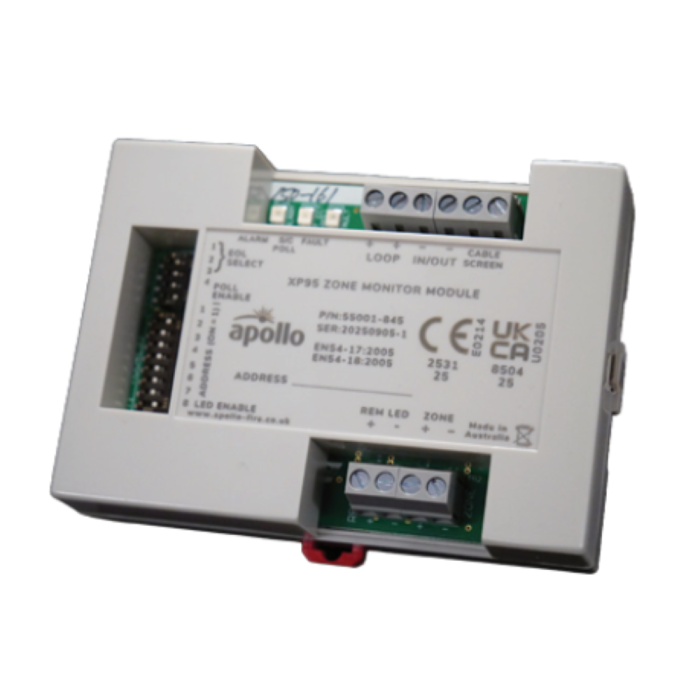

Apollo NEW DIN Rail Zone Monitor 55001-845APO
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
Apollo XP95 Zone Monitor with Isolator and Mounting Box
The XP95 Zone Monitor Module - Multiple Device - Iso (ZMMMD) powers and controls the operation of a zone with up to 40 Orbis/Series 65 detectors** from the Apollo loop. The ZMMMD provides a latching alarm status and a control panel controlled reset function. The ZMM-MD is fitted with a bi-directional short-circuit isolator and will be unaffected by loop short-circuits on either the loop input or loop output. The ZMM-MD three onboard LEDs providing indication for alarm, loop polling/short circuit isolation and fault conditions. The polling LED can be enabled or disabled using switch 4 on the 4-way DIL switch.
Features
- DIN Rail Mount - NO encslosure
- Loop Powered
- Latches in alarm
- Polling LED
- Addressing - DIL Switch
- Open circuit and short circuit zone cable monitoring
- Embedded loop isolator, maintaining product functionality in the event of a single loop short circuit
- Self-test - proof testing of alarm capability
- Earth fault current passed through from zone to CIE
- Local status indication LEDs
- Extended temperature range: -20°C to +70°C
- Supplied with EOLs (Including Active EOLs for UK markets)
| Label / Promotion | New |
|---|---|
| Approval | EN54-17, EN54-18 |
| Category Type | Interface |
| Colour | White |
| Interface Type | Zone Monitor |
| System Type | Addressable |
| Clearance | No |
Write Your Own Review
Specifications
| Supply Voltage |
17 V - 28 Vdc Loop supplied |
| Protocol Voltage |
5 V - 9 V |
| Power-up Surge Current for 250ms |
900 μA |
| Quiescent Current |
500 μA |
| Maximum Alarm Current |
26.7 mA |
| Maximum Zone Cable Impedance |
50 Ω |
| Certified Operating Temperature Range (CPR) |
-20 °C to + 70 °C |
| Humidity (no condensation or icing) |
0% - 95% RH |
| IP Rating (in accordance with IEC60529) |
IP67 (When in 29600-240 enclosure) / IP65 (When in 29600-244 enclosure) |
| Short Circuit Isolator | Please reference Installation Guide 39215-515 (www.apollo-fire.co.uk) |
| Terminal Block Cable Size |
0.1mm² to 2.5mm² CSA |
| Number of Cable Glands |
20 x 20mm |
| Cable Gland Entry Type |
Drill-out |
| Materials - Housing |
Grey flame-retardant Polycarbonate |
| ZMM Dimensions (mm) |
77 (h) x 107 (w) x 26 (d) |
| Enclosure Dimensions (mm) |
150 (h) x 150 (w) x 75 (d) |
| ZMM Weight |
97g |
| Enclosure Weight | 332g |
