CP414VVR
SKU
CT2507PROVVR

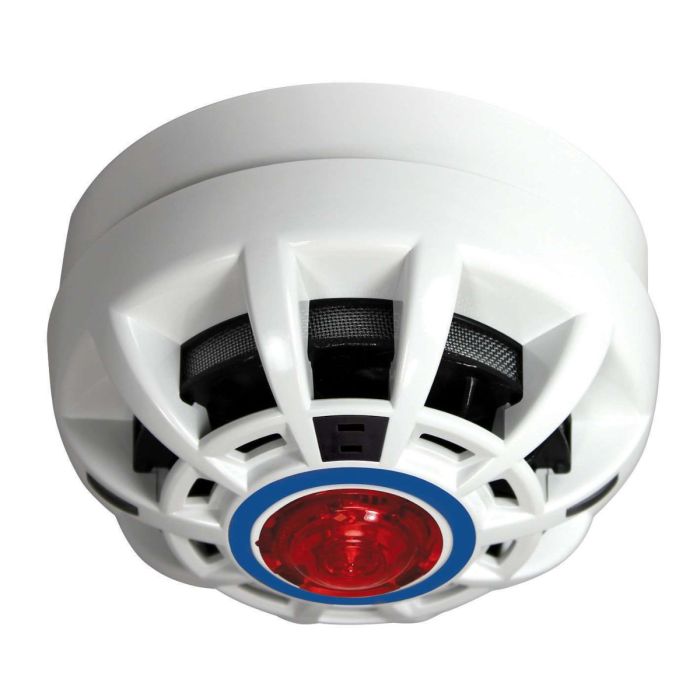

C-TEC CAST-PRO Smoke & Heat Multisensor c/w Voice Sounder & O-C-1.9-4 Red VAD
CAST-PRO Smoke & Heat Multisensor c/w Voice Sounder & O-C-1.9-4 Red Visual Alarm Device
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
Multiple functionality in a single device – smoke & heat multisensor fire detection plus an 86db(A) voice sounder and an O-C-1.9-4 red VAD – detects real fires quickly, reduces false alarms effectively and indicates true alarm conditions decisively.
Features
- Certified to EN54-3, 5, 7, 13, 17, 23, & 29 by Kiwa Telefication.
- Compatible with C-TEC’s ZFP and XFP CAST protocol addressable fire panels.
- MASC™ (Miniature Advanced Smoke Detection Chamber) and AFFIRM™ algorithms provide incredible tolerance to false alarms whilst enhancing the detection of real fire conditions.
- Drift compensation functionality.
- Onboard short circuit loop isolator.
- Includes two 8mm x 2mm ultra-bright red LED indicating strips.
- Multiple detection modes and different sensitivities for different times of the day.
- Six selectable voice messages with tones (2 evacuate, 1 alert, 1 all clear & 2 system test messages).
- 24.9mA max. alarm current (max vol, VAD on).
- 590uA typical quiescent current @ 40V DC.
- Compatible with C-TEC’s CA408 CAST base c/w integrated locking mechanism & ID tag.
| Approval | EN54-3, EN54-5, EN54-7, EN54-17 |
|---|---|
| Category Type | Detector Sounder Visual Alarm Device |
| Colour | White |
| Detection | Optical, Heat |
| IP Rating | IP21C |
| System Type | Addressable |
| Clearance | No |
Write Your Own Review
| Approvals/Certifications | Certified to EN54-13 by Kiwa Telefication, CPR number 0063-CPR-242190011, Kiwa Telefication certified to EN54-3, 5, 7, 17, 23 & 29 |
| Compatibility | C-TEC's XFP/ZFP CAST Protocol addressable fire panels |
| Type | Heat & Smoke Fire Detection plus Voice Sounder & Red VAD |
| Sensitivity | 8 detection Modes (default for this device Mode 7) |
| Supply Wiring | 2-wire, polarity sensitive |
| Supply/operating voltage | 28V to 40V DC |
| Quiescent current | 590uA @40V |
| Alarm current (lmax at Vmin) | 24.9mA (max volume, VAD lit) |
| Alarm current (lavg at Vmin) | 14.6mA (max volume, VAD lit) |
| Sound pressure level (LAFmax) at Vmax at 1m | 86dB(A) |
| VAD category & Coverage | O-C-1.9-4 (2m2/mA efficiency; 0.5Hz Synchronised) |
| Indicators | 2 LED indicator strips, emitting red light when in alarm offering 360° visibility. Optional remote LED |
| Connections | Via CA408 base: 1 +Ve IN (analogue switch); 2 +Ve OUT (analogue switch); 3 Remote LED +Ve; 4 0V; 5 0V; 6 Screen; 7 Screen |
| Dimensions | 105mm Diameter x 51mm deep (detector only); 105mm diameter x 68mm deep (detector in base) |
| IP Rating | IP21C |
| Weight | 131g (not in base); 186g (in base) |
| Operating conditions/temperature | -10°C to +50°C. Max relative humidity: 95% (non condensing) |
| Notes | Requires a CA408 CAST base. CA408R relay base also available) |
