In stock
Product Code
CA470
SKU
CT4501

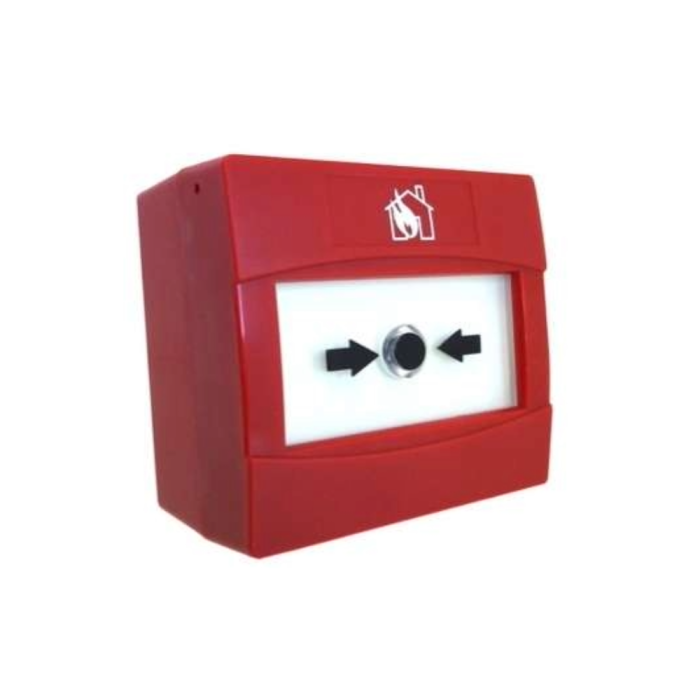

C-TEC CAST Red Manual Call Point, Universal Mounting
CAST Red Addressable Manual Call Point, Universal Mounting
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
A high-quality red manual call point for use with C-TEC’s XFP & ZFP ‘CAST’ protocol Addressable Fire Panels.
Features
- LPCB certified to EN54 Parts 11 & 17 and Kiwa Telefication & DBI certified to EN54-13.
- Also certified to the relevant parts of EN54 with Swedish certification body SBSC.
- Surface or flush mountable.
- Onboard short-circuit loop isolator.
- Smooth-action resettable element mimics the feel of breaking glass.
- Supplied with reset/back box removal key and ‘Not in Use’ label.
- Red LED ‘alarm ring’ illuminates call point face upon activation.
- Photoluminescent operating window remains visible for up to 5 minutes.
- 5mA typical alarm current (370µA typical quiescent @ 22-40V DC.
- IP42 rated
- Yellow, green, blue and white versions also available.
| Approval | EN54-11, EN54-13, EN54-17 |
|---|---|
| Category Type | Call Point |
| Colour | Red |
| Element | Plastic |
| IP Rating | IP42 |
| System Type | Addressable |
| Clearance | No |
Write Your Own Review
| Approvals/Certifications | Certified by SBSC to the relevant parts of EN54, DBI certified to EN54-13, LPCB certified to EN54 Parts 11 & 17 and Kiwa Telefication certified to EN54-13 |
| Compatibility | C-TEC's XFP/ZFP CAST Protocol addressable fire panels |
| Application/Operation | Surface or flush mountable (supplied with a surface back box and flush mount adaptor plate for use in either application.) |
| Supply/operating voltage | 22V to 40V DC |
| Quiescent current | 370uA typical @ 22 to 40V DC |
| Alarm current | 5mA typical (LEDs illuminated) @ 22 to 40V DC |
| Indicators | Red 'alarm ring'. Lit steady red (when activated) and flashing red (when polling) |
| Connections | Loop IN, Loop OUT (x2) |
| Dimensions | 87 W x 88 H x 62 D (includes back box) |
| Construction & Finish | Red ABS polycarbonate; Glass fibre window |
| IP Rating | IP42 |
| Weight | 180g |
| Operating conditions/temperature | -10°C to +55°C. |
