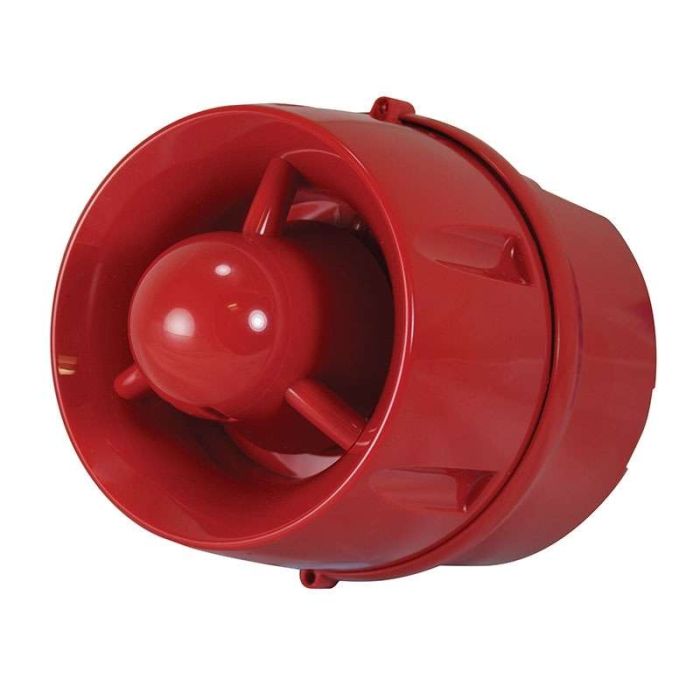

C-TEC CAST Weatherproof Hi-Output 100dB(A) Red Wall Sounder, Deep Base
CAST Weatherproof Hi-Output 100dB(A) Addressable Wall Sounder, Deep Base, Red, IP55
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
An Addressable Weatherproof Wall Sounder LPCB certified to EN54-3 & 17 and Kiwa Telefication & DBI certified to EN54-13.
Features
- Also certified to the relevant parts of EN54 with Swedish certification body SBSC.
- Impressive 100dB(A) sound output @ 1m.
- Onboard short-circuit loop isolator.
- 6.5mA typical alarm current (460μA typical quiescent current) @24-40V DC (Sounder on max).
- Group addressing facility allows multiple devices to be operated simultaneously.
- 4 selectable volume levels and 31 selectable tones.
- IP55C rated.
| Approval | EN54-3, EN54-13, EN54-17 |
|---|---|
| Base | Deep |
| Category Type | Sounder |
| Colour | Red |
| IP Rating | IP55 |
| System Type | Addressable |
| Clearance | No |
Write Your Own Review
| Approvals/Certifications | Certified by SBSC to the relevant parts of EN54, DBI certified to EN54-13, LPCB certified to EN54-3 & 17 and Kiwa Telefication certified to EN54-13 |
| Compatibility | C-TEC's XFP/ZFP CAST Protocol addressable fire panels |
| Application/Operation | Designed to be wall mounted. IP55 rated and suitable for use outdoors |
| Supply/operating voltage | 24V to 40V DC |
| Quiescent current | 460uA typical |
| Nominal SPL (Sound Pressure Level) | 100dB(A) when set to tone 1 |
| Alarm current | 6.5mA @ 24 to 40V DC (Sounder on Max) |
| Indicators | Polling (red LED) |
| Dimensions | 114mm Diameter x 131mm deep |
| IP Rating | IP55C (Weatherproof) |
| Weight | 300g |
| Operating conditions/temperature | -10°C to +55°C. Max 95% RH (non-condensing) |
