Product Code
CA433A/DR/65
SKU
CT9524RWCA

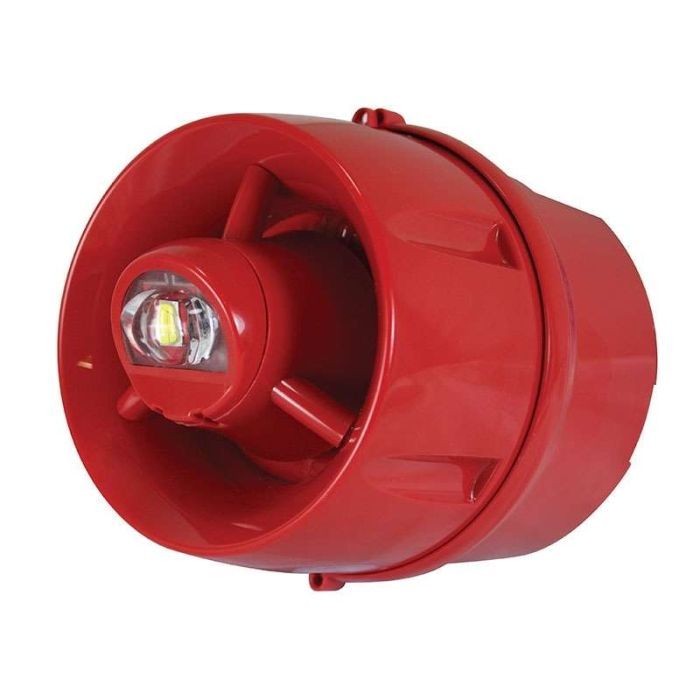

C-TEC CAST Weatherproof Hi-Output W-2.75-9 Wall VAD c/w 103dB(A) Sounder, Deep Base, Red
CAST Weatherproof Hi-Output Addressable W-2.75-9 Wall VAD c/w 103dB(A) Sounder, Red Deep Base, IP55
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
An Addressable Weatherproof Hi-Output Wall Sounder VAD LPCB certified to EN54-3, 17 & 23 and Kiwa Telefication & DBI certified to EN54-13.
Features
- Also certified to the relevant parts of EN54 with Swedish certification body SBSC.
- Provides ‘W-2.75-9’ rated light distribution. Also rated as a W-4-4 VAD.
- Impressive 103dB(A) sound output @ 1m.
- Onboard short-circuit loop isolator.
- 13.5mA typical alarm current (460µA typical quiescent current) @ 27-40V DC (VAD lit, sounder on max).
- Group addressing facility allows multiple devices to be operated simultaneously.
- 4 selectable volume levels and 31 selectable tones.
- IP55 (Type B) rated.
| Approval | EN54-3, EN54-13, EN54-17, EN54-23 |
|---|---|
| Base | Deep |
| Category Type | Sounder Visual Alarm Device |
| Colour | Red |
| IP Rating | IP55 |
| System Type | Addressable |
| Clearance | No |
Write Your Own Review
| Approvals/Certifications | Certified by SBSC to the relevant parts of EN54, DBI certified to EN54-13, LPCB certified to EN54-3, 17 & 23 and Kiwa Telefication certified to EN54-13 |
| Compatibility | C-TEC's XFP/ZFP CAST Protocol addressable fire panels |
| Application/Operation | Designed to be wall mounted. IP55 rated and suitable for use outdoors |
| VAD category & coverage | W-2.75-9 rated light distribution. Also certified as a W-4-4 rated VAD |
| Flash rate & Colour | 0.5Hz / White |
| Supply/operating voltage | 27V to 40V DC |
| Quiescent current | 460uA |
| Nominal SPL (Sound Pressure Level) | 103dB(A) when set to tone 1 |
| Alarm current | 13.5mA typical @ 27 to 40V DC (VAD lit, Sounder on Max) |
| Indicators | Polling (red LED) |
| Dimensions | 114mm Diameter x 131mm deep |
| IP Rating | IP55 (Type B) |
| Weight | 315g |
| Operating conditions/temperature | -10°C to +55°C. Max 95% RH (non-condensing) |
VAD coverage depends on factors such as ambient light and viewing angle (direct or indirect). The table below summarises how the coverage of the CA433A/DR increases or decreases based on these factors. To use the table, calculate the lux level of the area requiring coverage, determine whether the viewing angle will be direct or indirect then read off the coverage in the relevant column.
| Lux Level in area requiring coverage | W-2.75-9 Wall Mounted Direct Viewing | W-2.75-9 Wall Mounted Indirect Viewing | W-4-4 Wall Mounted Direct Viewing | W-4-4 Wall Mounted Indirect Viewing |
| 000-101 lux | 14.30m H x 46.80m W | 4.95m H x 16.2m W | 20.8m H x 20.8m W | 7.2m H x 7.2m W |
| 101-200 lux | 12.10m H x 39.60m W | 4.67m H x 15.3m W | 17.6m H x 17.6m W | 6.8m H x 6.8m W |
| 201-300 lux | 8.80m H x 28.80m W | 3.85m H x 12.6m W | 12.8m H x 12.8m W | 5.6m H x 5.6m W |
| 301-400 lux | 6.32m H x 20.70m W | 3.30m H x 10.8m W | 9.2m H x 9.2m W | 4.8m H x 4.8m W |
| 401-500 lux | 4.95m H x 14.40m W | 2.75m H x 9m W | 7.2m H x 7.2m W | 4.0m H x 4.0m W |
| 501-600 lux | 3.57m H x 11.7m W | 2.47m H x 8.1m W | 5.2m H x 5.2m W | 3.6m H x 3.6m W |
| 601-700 lux | 2.75m H x 9.0m W | 1.92m H x 6.3m W | 4.0m H x 4.0m W | 2.8m H x 2.8m W |
| 701-800 lux | 1.90m H x 6.3W | 1.65m H x 5.4m W | 2.8m H x 2.8m W | not applicable |
