In stock
Product Code
BF367
SKU
CT1002

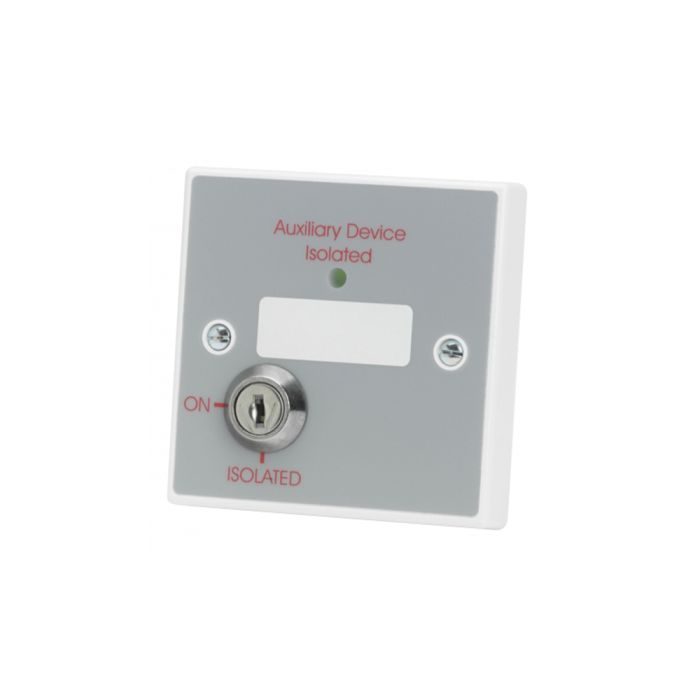

CTEC Auxiliary Device Isolator
Auxiliary Device Isolator
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
- Allows a +24V VDC output from a fire alarm control panel to be remotely isolated to prevent autodialer, water sprinklers, rollershutters from activating
- Designed so that if monitored is used on the +24Vdc output being controlled, a fault condition will show at the fire panel when the device is isolated.
- Label includes a white "write on" area allowing installers to add equipment locations.
Allows a +24 VDC output from a fire alarm control panel to be remotely isolated to prevent autodiallers, water sprinklers, rollershutters, etc., from activating.
Features
- Designed so that if monitoring is used on the +24 VDC output being controlled, a fault condition will show at the fire panel when the device is Isolated.
- Label includes a white ‘write on’ area allowing installers to add equipment locations.
- Fits on standard UK 25mm flush or surface mount back boxes.
| Category Type | Isolator |
|---|---|
| IP Rating | IP40 |
| Clearance | No |
Write Your Own Review
| Activation current | 10mA @ 27.6 VDC required to illuminate the amber Isolated LED |
| Indicators | Isolated LED |
| Connections | V; SW In; SW Out |
| Product dimensions (mm) | 85W x 85 H x 19D |
| Construction & finish | White PVC plate; Grey label; Silver plated brass switch material |
| IP rating | IP40 |
| Weight | TBC |
| Operating conditions/temperature | -10°C to +60°C |
| Notes | Switching resistive load 3A @ 30VDC; Switching inductive load 1.5A @ 30VDC; Non switching current rating 5A absolute Max |
