A simple Master station with 8 buttons for answering calls with the master handset.

Designed for ease of installation and commissioning, the LX228 is a solution for smaller projects, but with built in networking it can form the local control element of complex campus style systems.

The system is suitable for EVCS in addition to Assist Call emergency assistance alarms.

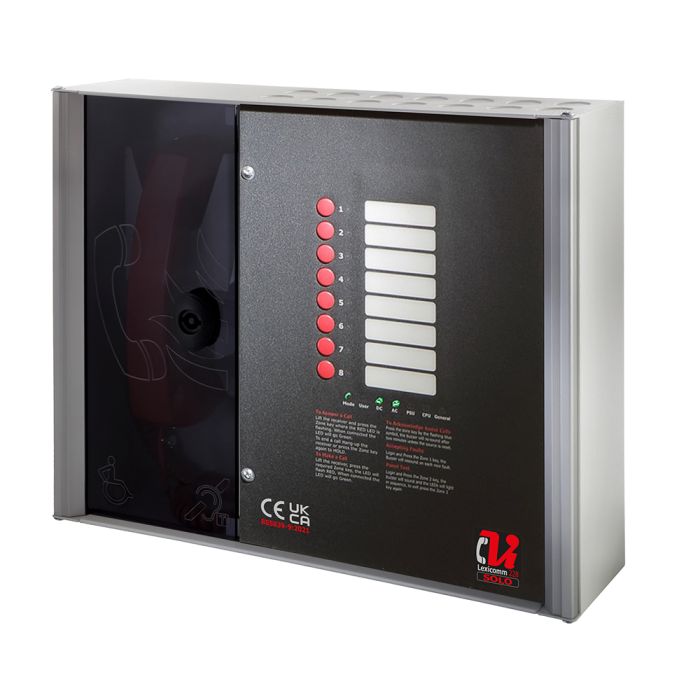

Enhanced engineer functions, such as single engineer test and line identify reduce time and expense for both commissioning engineers and facilities maintenance companies. The Lexicomm LX228 is a self-contained enclosure housing a master handset, one to four dual line cards, an EN54-4:A2 2006 power supply & battery charger and can be surface or flush mounted . The case is made from powder coated Zintec, with a smoked perspex door covering the handset. 20mm cable knock-outs are provided for all necessary cables as well as space for the backup 12V VRSLA battery.

Requires 1x 12v 7AH VRSLA battery for 24hr standby. Includes 1x dual line card fitted.

Key features:

• Compact Design
• Fully Compliant to BS 5839-9:2021
• Integrated Assist Call and acknowledge meeting BS8300
• 5A EN54-4:A2 PSU
• Full Duplex operation
• Wall mount enclosure
• Lockable handset cover
• Expandable from 2 to 8 lines
