In stock
Product Code
EV-3IO (F16-82265)
SKU
NI25183E

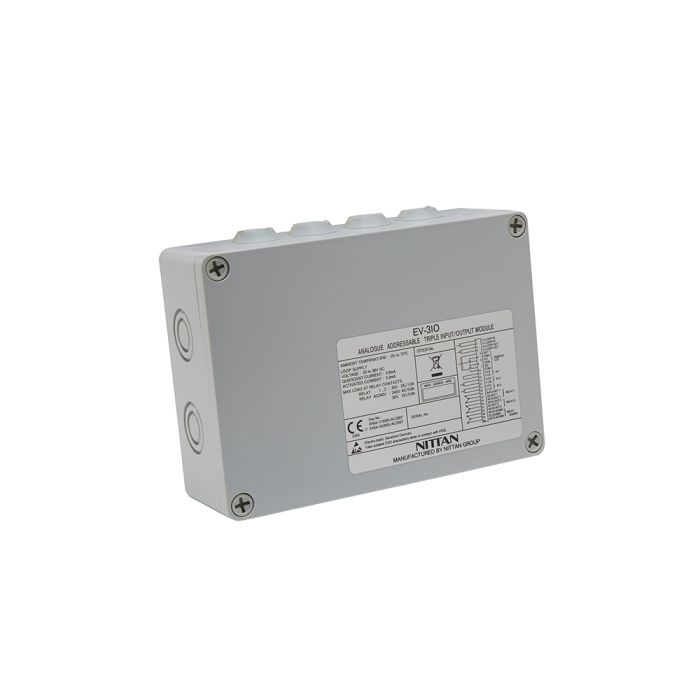

Nittan Evolution Addressable Triple Input/Output Module
Evolution Addressable Triple Input Output Module
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
EV-3IO is a Triple Input / Output Module, with integral –ve line Short Circuit Isolator compatible with Evolution Analogue Addressable system devices. The Module includes setting options for a normally closed contact input and Fail Safe mode for Door release requirement. LEDs are provided to Indicate Input & Output active, Fault and Isolator Open. Remote LED outputs are provided Relay status, Fault and Isolator Open indication.
- Loop Powered
- 3 x Class B Inputs
- 1 x 5A@240Vac Rated Relay
- 2 x 1A@30Vdc Rated Relay
- Integral -ve Isolater
- Failsafe option for Door Release
- EEPROM Addressed (Programmer)
| Category Type | Interface |
|---|---|
| Colour | White |
| Interface Type | Input/Output |
| System Type | Addressable |
