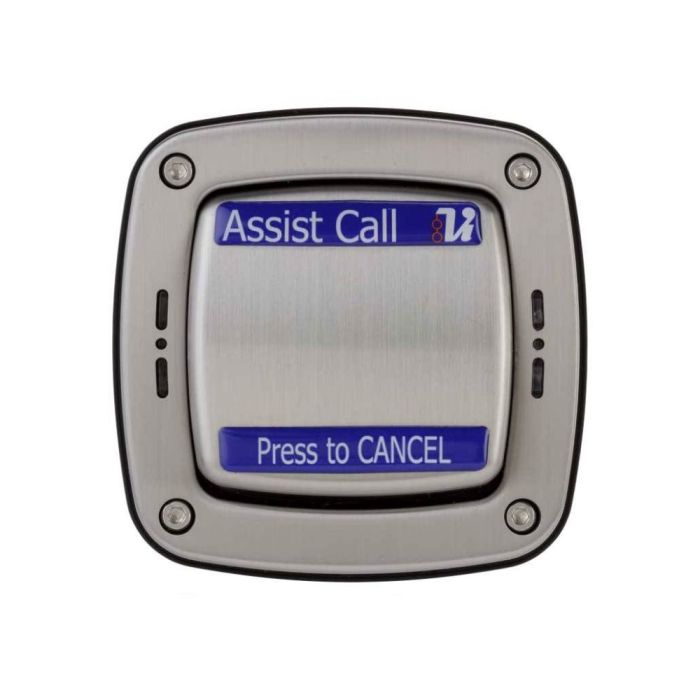

The ViAC-CLP-66 weatherproof call button is fully compatible with the Lexicomm EVC range of equipment and the standalone Assist Call range.

• IP66 weatherproof enclosure
• Ideal for showers/wet areas
• Stainless fascia
• Polycarbonate back box
• Flush or surface mounting
• BS 8300-2:2018 “Acknowledge” feature

Overview

The ViAC-CLP-66 is used to activate the alarm, the call button is recommended for showers and other wet areas where a standard pull cord may be unsuitable. The call button is finished in brushed stainless steel with a blue indicator for the visual alarm.

Operation

The button is a momentary sprung switch which illuminates with a blue indicator to confirm operation.There is a maximum number of 6 call buttons on a single line, with the last one operated registering.

Mounting Information

It should be mounted at between 800mm to 1000mm with a lower call button mounted at 100mm from the floor. There are 5 x 20mm cable entries provided, at top, bottom and side entry, cable entry for the rear via cut-out is also provided. See drawings on the data sheet for full details.

Wiring Information

For simplicity, all wiring is a standard two core cable, the wiring order of the devices is not fixed and therefore can be wired in any order to give total flexibility.
