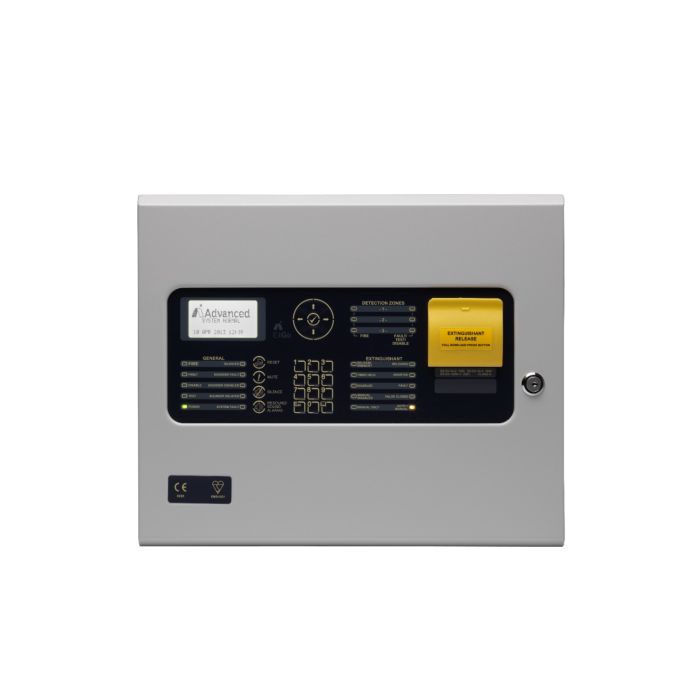

Advanced ExGo Extinguishing Panel, 3 Zone, 1 release output
Extinguishing Panel, 3 Zone, 1 release output
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
The ExGo, three zone automatic extinguishing panel is approved to EN12094-1 (European standard for Fixed Firefighting Systems - Components for Gas Extinguishing Systems) and EN54 - Parts 2 and 4.
The ExGo system detects a fire in the same manner as a fire alarm system, but in addition to sounding alarms, it also controls the release of an extinguishing agent.
The extinguishing agent can take many forms from CO2 through to specialist gasses developed solely for extinguishing purposes. The agent is released into the atmosphere in the area where a fire has been detected, reducing the density of oxygen in the atmosphere around the fire, thus extinguishing the fire.
The ExGo system is used primarily in areas of significant value/strategic importance to businesses e.g. computer suites, telecom switch-rooms etc, providing a cost affective solution to protect your work place.
The ExGo, three zone automatic extinguishing panel is approved to EN12094-1 (European Standard for Fixed Firefighting Systems - Components for Gas Extinguishing Systems) and EN54 - Parts 2, 4 and 13. The ExGo system detects a fire in the same manner as a fire alarm system, but in addition to sounding alarms, it also controls the release of an extinguishing agent.
The extinguishing agent can take many forms from CO² through to specialist gases developed solely for extinguishing purposes. The agent is released into the atmosphere in the area where a fire has been detected, reducing the density of oxygen in the atmosphere around the fire, thus extinguishing the fire.
The ExGo system is used primarily in areas of significant value/strategic importance to businesses e.g. computer suites, telecom switch-rooms etc, providing a cost-affective solution to protect your work place.
Features
- LCD display providing clearer status indication and programming routines
- Multiple languages
- Software for downloading configuration and event logs
- Passcode or optional key switch for Level 2 access
- Time and date-stamped event log and improved diagnostics
- Company logo can be displayed on LCD during normal conditions
- Large LCD/ digital countdown timer
- RS485 for remote status indicators (maximum of 7)
- PC download via USB
| Approval | EN54-2 , EN54-4 |
|---|---|
| Category Type | Panel |
| Colour | Grey |
| IP Rating | IP30 |
| System Type | Extinguishant |
| Clearance | No |
Write Your Own Review
| Base Technology | Flash-based processor |
| Display | Backlit 128 x 64 LCD |
| Remote Status Indicators | Supported via RS485 (maximum of 7) |
| Controls | Alphanumeric keypad, navigation keys and system keys for Reset, Mute, Silence/Resound and Sound alarms |
| Detection Zones | 3 x conventional detection zones (inc. support for I.S. barrier) |
| Extinguishing Zones | 1 x flooding/extinguishing zones. Support for solenoid and metron type actuators |
| Onboard Sounder Circuits | 3 x 1A, 18-28vDC |
| Onboard Relays | 4 x 1A, 30vDC relay outputs (Fire, Fault & 2 x programmable) |
| Auxilliary Supply | 2 x 500mA aux supply outputs 18-28vDC (1 switched) |
| Programmable outputs | Support for 8 additional programmable outputs via Exp-008 |
| Switch Inputs | 4 x programmable, 1 x manual trigger, 6 x release (Mode Select, Valve Monitor, Pressure Monitor, Hold, Abort, Flow) |
| Countdown Timer | On board, large digit |
| Mains Supply | 3A universal switch mode PSU |
| Battery Capacity | 24V 7Ah |
| Charger Current | 1A |
| USB Ports | 1 x USB port for PC connection |
| Event Log | 100 fire/trigger events, 500 general log events |
| Enclosure, Colour | Steel IP30, grey RAL7035 |
| Cable Entry | 17 knockouts in enclosure top, 13 in enclosure back |
| Size ( H x W x D) | 330mm x 400mm x 95mm |
| Weight | 6Kg |
