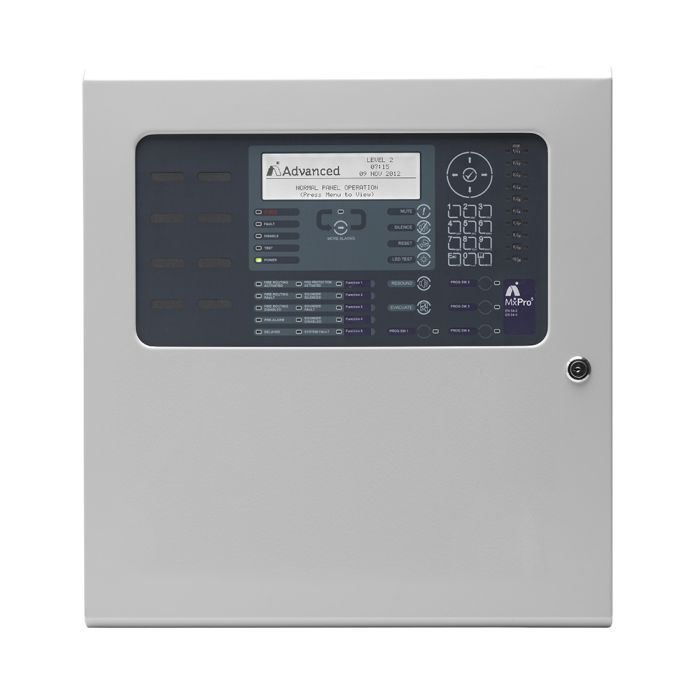

Advanced MxPro 5 1-4 Loop Panel, c/w 1 Loop Card
1-4 Loop Panel, c/w 1 Loop Card
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
The MxPro 5 series control panels are supplied with a single loop driver card, 2 onboard sounder circuits, 20 programmable zonal LEDs with slide-in labels, and 25 system LEDs for information purposes. There are also 4 programmable function buttons with LED indication for confirmation of operation.
The control panel consists of the latest dual flash-based microprocessor technology combined with a high resolution, high contrast, graphical LCD display and tactile keypad providing a simple 'select & click' programming aid for engineer configuration and end user operation.
Powerful cause-and-effect programming coupled with dynamic zoning, and enhanced trace diagnostics makes the panel suitable for a wide range of site applications from small to large complex multi-area systems. Fully programmable on-site via the on-board alphanumeric keypad, or PC-NeT Configuration Software.
An extensive suite of user-friendly Windows based PC software programs has been developed to enhance your experience when using MxPro 5 series fire panels. The suite incorporates a number of different programmes which include configuration, service, logo and virtual panel tools to allow the flexibility of the equipment to be fully explored.
Simply adding a network card allows the panel to communicate with any other MxPro 5 fire panel, remote terminal, or network periferal, such as ipGateway™, BMS or graphical interface. The network operates as a true peer-to-peer system and can be configured in a fault tolerant loop or radial format.
Features:
- 20 programmable zonal / 25 System LEDs
- Apollo, ArgusVega, Hochiki & Nittan Evolution protocol support
- Advanced graphical LCD user interface and support for up to 200 fire zones by default allowing full EN54 compliance without additional hardware
- Dedicated USB & RS232 Serial Port for direct PC or modem connection
- Installer friendly Auto-learn, Loop Detection and Onboard Scope facility
- Graphical display configurable for virtually any language
- Robust removable equipment chassis with plug-inconnectors for simple fixing and cable termination
- Integral P-Bus for system expansion via available option cards
- Ad-NeT peer-to-peer network with up to 2000 zones
- Programmable push buttons
- Rack-mountoptions
- Multiple languages
- Global compliance
- Fully networkable
- 3-year warranty
- Fully programmable
- Installer's logo application
| Approval | EN54-2, EN54-4, EN54-13 |
|---|---|
| Category Type | Panel |
| Colour | Grey |
| IP Rating | IP30 |
| System Type | Addressable |
