Product Code
MX-5807FT
SKU
AD85587FT

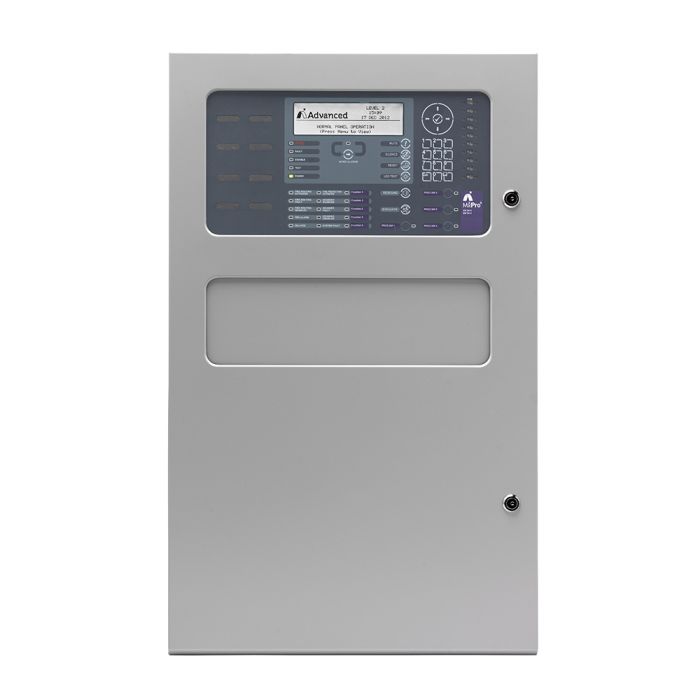

Advanced MxPro 5 2-8 Loop Panel, c/w 7 Loop Cards, Fault Tolerant Network
2-8 Loop Addressable Fire Alarm Control Panel, c/w 7 Loop Cards, Fault Tolerant Network
Apollo/Hochiki Protocol
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
The MxPro 5 series is fully expandable from 2 to 8 loops and supplied with 8 on-board sounder circuits, 20 programmable Zonal LEDs with slide-in labels, and 25 System LEDs for information purposes. There are also 8 programmable function buttons with LED indication for confirmation of operation.
The control panel consists of the latest dual flash-based microprocessor technology combined with a high resolution, high contrast, graphical LCD display and tactile keypad providing a simple select & click programming aid for engineer configuration and end-user operation.
Powerful cause-and-effect programming coupled with dynamic zoning, and enhanced Trace Diagnostics makes the panel suitable for a wide range of site applications from small to large complex multi-area systems. Fully programmable onsite via the on-board alphanumeric keypad, or PC-NeT configuration software. An extensive suite of user-friendly Windows based PC software programs has been developed to enhance your experience when using MxPro 5 series fire panels. The suite incorporates a number of different programmes to include a configuration, service, logo and virtual panel tool to allow the flexibility of the equipment to be fully explored.
Simply adding a network card allows the panel to communicate with any other MxPro 5/MxPro 4 fire panel, remote terminal, or network peripheral, such as, ipGateway™ or BMS/graphical interface. The network operates as a true peer-to-peer system and can be configured in a fault tolerant loop or radial format.
The MxPro 5 series is fully expandable from 2 to 8 loops and supplied with 8 onboard sounder circuits, 20 programmable Zonal LEDs with slide-in labels, and 25 System LEDs for information purposes. There are also 8 programmable function buttons with LED indication for confirmation of operation. The control panel consists of the latest dual flash-based microprocessor technology combined with a high resolution, high contrast, graphical LCD display and tactile keypad providing a simple select & click programming aid for engineer configuration and end-user operation.
Compatible with AdvancedLive (UK&I only), which is the fire panel monitoring solution that enables secure, easy, real-time management of an Advanced fire system. Powerful cause-and-effect programming coupled with dynamic zoning and enhanced Trace Diagnostics makes the panel suitable for a wide range of site applications from small to large complex multi-area systems. Fully programmable onsite via the onboard alphanumeric keypad, or PC-NeT-022 configuration software.
An extensive suite of user-friendly Windows-based PC software programs has been developed to enhance your experience when using MxPro 5 series fire panels. The suite incorporates a number of different programmes to include a configuration, service and logo tool to allow greater flexibility of the equipment to be fully explored.
Simply adding a network card allows the panel to communicate with any other MxPro 5 / MxPro 4 fire panel, remote terminal, or network peripherals, such as BMS or graphical interface. The network operates as a true peer-to-peer system and can be configured in a fault tolerant loop or radial format.
Features
- Connectivity to AdvancedLive (UK&I only), Ethernet on-board
- Fully expandable from 2 - 8 loops via plug-in loop driver cards.
- 20 programmable Zonal / 25 System LEDs with slide-in labels.
- Apollo, Hochiki protocol support.
- Advanced graphical LCD user interface and support for up to 200 fire zones by default allowing full EN54 compliance without additional hardware.
- Dual flash-based microprocessor technology with real-time clock onboard.
- Dedicated USB & RS232 serial port for direct PC or modem connection.
- Installer friendly Auto-learn, Loop Detection and Onboard Scope facility for ease of commissioning and fault finding.
- Fully programmable via the onboard alphanumeric keypad, or PC configuration tools.
- The graphical display can be configured to operate with virtually any language or character set and allow the installer's logo to be applied using the Logo application software.
- Robust removable equipment chassis with plug-in connectors for simple fixing and cable termination.
- Integral P-Bus for system expansion via available option cards.
- Advanced networking, peer-to-peer system, with up to 2000 zones.
| Approval | EN54-4 |
|---|---|
| Category Type | Panel |
| Colour | Grey |
| IP Rating | IP30 |
| System Type | Addressable |
| Clearance | No |
Write Your Own Review
| Base Technology | Dual flash-based processors with real-time clock, trace diagnostics, programmable languages and character sets |
| Display | White backlit 240 x 64 graphical LCD |
| LED Indicators | 22 red (1 x Fire, 1 x More Alarms, 20 x Zonal Programmable), 1 green (Power), 13 amber and 12 bi-colour (Fault & System) |
| Controls | Alpha numeric keypad permitting navigation, Reset, Mute, Silence, Resound, Evacuate, and 4 x programmable push buttons |
| Protocol | Apollo (Soteria / XP95 / Discovery), Hochiki ESP |
| Number of Fire Zones | 2000 when networked (400 max across 8 loops) |
| Number of Loops | Dedicated 2-8 loop control panel, c/w 7 loop cards expandable with MXP-568 |
| Devices per Loop | Protocol dependent |
| Loop Current | 500mA per loop |
| On-Board Sounder Circuits | 8 x 1 Amp programmable |
| On-Board Relays | 4 x 1 Amp 30v AC/DC programmable(10mA, 5v min) - expandable to 8 using 2 x MXP-507 |
| Auxiliary Supply | 2 x 24v 500mA |
| Programmable Input | 2 x On-Board Programmable Input |
| Programmable Key Switch Inputs | 16 x volt free digital inputs |
| Total Available Output Current | 2 x 5A maximum available for loop current + sounder outputs + auxiliary supply |
| Mains Supply | 200 - 240v 47-63 Hz AC (+10%, -15% tolerance) 1.4A Max |
| Battery Capacity | 2 x 24V 4Ah internal (min), 2 x 24V, 18Ah internal (max), or 1 x 24V 45Ah internal (max) and 1 x 24V 45Ah external (max) using optional battery enclosure |
| Charger Current | 2 x 2A temperature compensated |
| Ethernet Port | 10-Base-T, 100-Base-T - providing AdvancedLive connectivity (UK&I only) |
| Serial Port | 2 x on-board RS232 connection for PC, modem, IP, or portable printer |
| USB Interface | 2 x USB B type connection for PC communication |
| Programming | On-board keypad or PC running Windows tools |
| Event Log | 2 x 5000 event & diagnostic + 500 fire |
| Printer (Optional) | On-Board |
| Enclosure / Colour | Steel IP30 / RAL7035 |
| Cable Entry (20mm knockouts) | 30 x top, 6 x rear, 3 x bottom plus 2 x double knockout rear |
| Size H x W x D mm | 750 x 450 x 190 |
| Metalwork Options | Flushing bezel, battery box, utility enclosure, termination enclosure and rack mount |
