In stock
Product Code
38213.78.NC
SKU
38213.78.NC

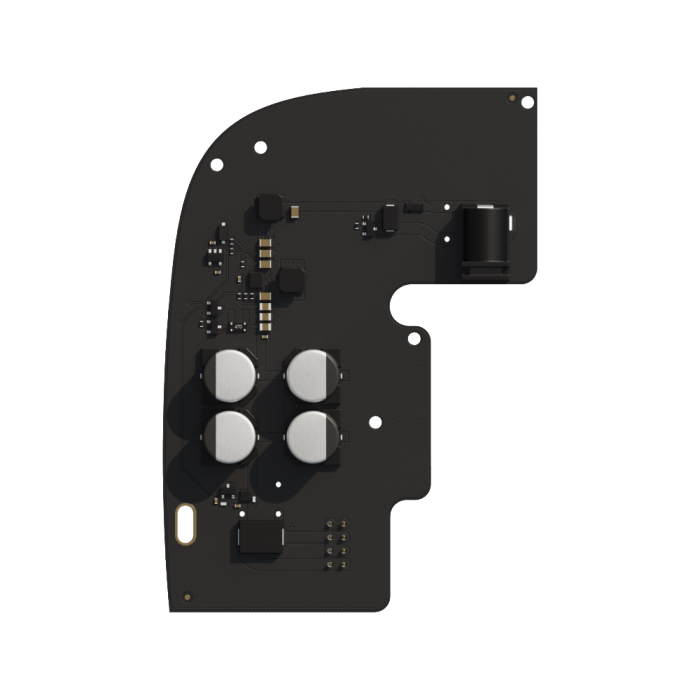

Ajax 6V PSU for Hub 2 ASP
Power supply unit for operation of the device from portable battery
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
With an alternative 6 V⎓ power supply unit, an Ajax hub or a range extender can operate from an external battery for years without being connected to the facility’s power grid. This setup is ideal for protecting buildings in critical condition, construction sites, or abandoned properties from burglars, vandals, and unauthorized occupation.
| Category Type | Power Supply Unit |
|---|---|
| Colour | Black |
| System Type | Intruder |
| Clearance | No |
Write Your Own Review
Input
| Voltage |
4.2–10 V⎓ |
| Current | 2.2 А at 4.2 V⎓ 0.8 А at 10 V⎓ |
| Turn-on voltage |
4.2 V⎓ ± 0.5% |
| Turn-off voltage |
3–3.4 V⎓ Depends on the load |
Output
| Voltage | 4.8 V⎓ ± 3% |
| Current | up to 1.5 A |
Installation
| Installation method |
into the hub or range extender enclosure by replacing the bundled power supply board |
| Operating temperature range |
from -10°C to +40°C |
| Operating humidity |
up to 75% |
Connection to the power supply network
| Connector Slot | 6.5 × 2 mm Power jack (female) |
| Connector | 5.5 × 2.1 mm Power jack (male) |
Board
| Dimensions | 98 × 70 × 17 mm |
| Weight | 26 g |
Colour
| Available colours | N/A |
Complete Set
| Contains | 6V PSU (type A) Terminal adapter Quick start guide |
Warranty
| Warranty Period | 24 months |
