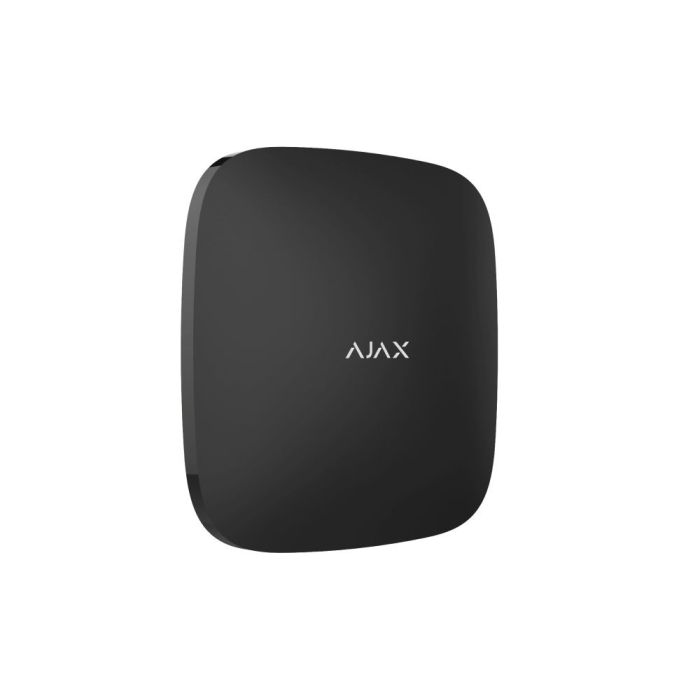

Ajax Hub 2 Plus Jeweller (8PD) - Black
Wireless control panel with support for photo verification. Connectable via Wi-Fi, Ethernet, and two SIM cards (2G/3G/LTE)
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
Ajax control panel for systems that need fast communication, visual alarm verification and higher capacity. It can manage large numbers of MotionCam detectors and deliver photo confirmations quickly. It gives the installer a central platform that can be configured, tested and adjusted through the Ajax app ecosystem, helping reduce time spent on setup and ongoing maintenance.
Key features:
- Photo verification support
- Ethernet, Wi-Fi and dual SIM
- Supports up to 200 connected devices
- Designed for homes, offices and larger premises
- Jeweller wireless communication
- App-based setup and administration
- Remote configuration through Ajax apps
- Alarm transmission to users and monitoring stations
- Encrypted communication with connected Ajax devices
- Higher system capacity for larger projects
| Approval | Grade 2 (EN 50131), PD 6662:2017 |
|---|---|
| Category Type | Hubs |
| Colour | Black |
| IP Rating | IP20 |
| System Type | Intruder |
| Clearance | No |
Write Your Own Review
Capacity
| Wireless Ajax devices |
up to 200 Specifically, up to 10 sirens or keypads with a built-in siren and up to 5 range extenders. |
| Users |
up to 200
|
| Automation scenarios |
up to 64
|
| Security groups |
up to 25 |
| Rooms |
up to 50 |
Wireless Communication
| Jeweller communication technology |
Proprietary wireless communication technology to transmit alarms and events. Key features:
|
| Frequency bands |
866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz 915.85–926.5 MHz 921.0–922.0 MHz |
| Maximum effective radiated power (ERP) |
up to 20 mW Featured automatic power control to reduce power consumption and noise interference. |
| Radio signal modulation | GFSK |
| Radio signal range |
up to 2,000 m Between the hub and connected devices (in an open space). Maximum range depends on the connected device. |
| Polling interval |
from 12 to 300 s Adjusted by PRO or user with admin rights in the Ajax apps. |
| Encrypted communication |
All the data stored and transmitted are protected by block encryption with a dynamic key. |
| Frequency hopping |
To prevent radio interference and radio signal interception. |
| Wings communication technology |
Proprietary wireless communication technology to transmit photo verifications. Key features:
|
| Frequency bands |
866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz 915.85–926.5 MHz 921.0–922.0 MHz |
| Maximum effective radiated power (ERP) |
up to 20 mW Featured automatic power control to reduce power consumption and noise interference. |
| Radio signal range |
up to 1,700 m Between the hub and connected devices (in an open space). Maximum range depends on the connected device. |
| Encrypted communication |
All the data stored and transmitted are protected by block encryption with a dynamic key. |
| Frequency hopping |
To prevent radio interference and radio signal interception. |
Communication channels
| Ethernet |
1 8P8C socket Up to 100 Mbps. |
| Cellular |
2 micro-SIM slots |
| Cellular bands |
2G: PCS1900/DCS1800/GSM850/GSM900 (B2/B3/B5/B8) 3G: WCDMA 2100/1900/1700/850/900 (B1/B2/B4/B5/B8) 4G (LTE): FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B20/B28, TDD B40 Depends on the sales region. |
| Wi-Fi |
802.11 b/g/n module up to 600 Mbps. |
| Automatic switching between communication channels |
Instant switching between Ethernet, Wi-Fi and SIM. Instant switching between 4G (LTE), 3G, and 2G networks of one SIM. Switching between SIMs takes up to 4 minutes. |
| Communication channels prioritization |
Communication channels work in parallel to increase the system’s reliability. Most of the data is transmitted via Ethernet. |
Notifications
| Supported notification types | Push SMS Calls |
| Event types | Alarms Malfunctions Security mode changing System events Non-security alerts Automation devicesʼ events The notification types are configured individually for each user. |
Photo Verification
| Photo verification types |
The Photo by Schedule feature is available for hubs with firmware version OS Malevich 2.19 or higher. |
| Photo delivery time |
up to 9 s by default. |
| Photo resolution |
up to 640 × 480 pixels Depends on the detector. |
| Number of photos in a series |
from 1 to 5 pictures |
Monitoring
| Supported protocols |
|
| Event types |
|
Power Supply
| Main |
110–240 V~, 50/60 Hz Up to 10 W of mains power consumption. |
| Back-Up |
built-in backup rechargeable battery: Li-ion 3 А·h Up to 15 hours of offline operation when Ethernet is disconnected. |
| Alternate |
6 V⎓ Connected via an alternative power supply unit 6V PSU (type A) which is sold separately. 12–24 V⎓ Connected via an alternative power supply unit 12–24V PSU (type A) which is sold separately. |
Anti-sabotage
| Tamper Alarm |
The system receives notifications about attempts to detach the device from the surface or remove it from the mounting panel. |
| Protection against spoofing |
devices’ authentication Proprietary authentication algorithms make it impossible to spoof the hub or connected devices. |
| Frequency Hopping |
The users and the security company receive notifications in case of jamming or when the hub loses connection with the devices. |
Enclosure
| Dimensions |
163 × 163 × 36 mm |
| Weight |
367 g |
| Operating temperature range |
from −10°C to +40°C |
| Operating humidity |
up to 75% |
| Protection class | IP20 |
Colour
| Available colours | Black, White |
Complete Set
| Contains |
Hub 2 Plus Jeweller SmartBracket mounting panel Power cable Ethernet cable Installation kit SIM card (depends on the sales region) Quick start guide |
Warranty
| Warranty Period | 24 Months |
