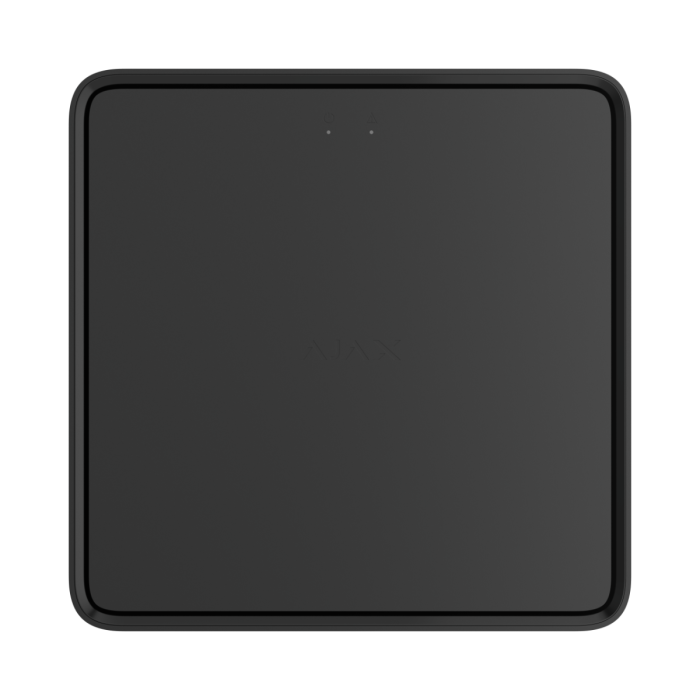

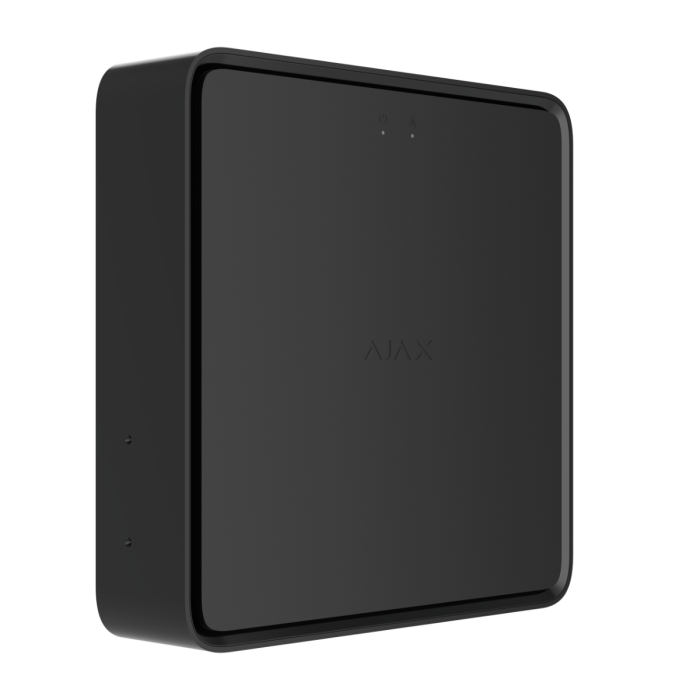

EN54 Fire ReX Jeweller

Wireless addressable radio signal range extender for a fire alarm system, supporting intrusion protection devices

More flexibility for professional installations

EN54 Fire ReX Jeweller expands the range of a wireless network and delivers a stable connection for EN54 Line devices across a large or complex facility. The range extender connects to the control and indicating equipment (CIE) wirelessly or via Ethernet, delivering reliable communication through steel and concrete. Up to 5 range extenders can operate within one Ajax system, and each supports any combination of devices for fire safety, automation, and intrusion protection. Mix devices within the CIE's limit to leverage the benefits of the integrated system, including visual verification of alarms.

Reliable safety for any facility

EN54 Line is suitable for a wide range of facilities: from small restaurants and gas stations to schools and office buildings. With a wireless communication range of up to 1,800 meters between EN54 Fire Hub Jeweller and system devices, it offers reliable performance even across large premises.

To expand the coverage even further, EN54 Fire ReX Jeweller can be added to the setup. Up to 5 range extenders can operate within a single Ajax system, effectively doubling the network size. It's the perfect solution for facilities where devices need to operate at greater distances without compromising reliability.

• Communication range of up to 1,800 m
• Coverage of up to 35 km²
• Up to 5 range extenders within one system
• Support for any device combinations within the CIE limits

Communication through steel and concrete

EN54 Fire ReX Jeweller connects to the CIE both wirelessly and via Ethernet, with the wired channel as the primary. This ensures reliable performance even in the most demanding environments. A single Ajax fire alarm system can cover complex facilities — from business centers with underground parking to large warehouses with metal structures, or historic buildings with thick walls.

Discover future-proof hardware

• Ethernet connection module - for stable CIE connection to the internet
• Jeweller and Wings antenna - for reliable communication with system devices
• Smart Bracket - to install the range extender without disassembling the enclosure
• Internal battery slot - allows for a hot swap without shutting down the device
• LED indications - displays all mandatory system status as well as individual zone status
• Two tamper buttons - to detect and report attempts to detach the device or remove it from the mounting panel.

Communication built in

EN54 Fire ReX Jeweller comes with a built-in radio communicator — no additional modules or wiring needed. Ajax systems use secure two-way communication based on proprietary Jeweller and Wings radio protocols. Devices maintain a stable connection with the CIE at distances of up to 1,800 meters. Alarm delivery is confirmed in line with the EN 54-21 standard. Events reach the CIE in just 3 seconds — more than three times faster than the standard requirement of 10 seconds.

Jeweller communication protocol
To transmit real-time device states, alarms, events, and all measured readings to Ajax apps.

Wings and TurboWings communication protocols
To transfer visual alarm verifications and large data packets, including individual settings such as interface languages and firmware updates.

• Wireless range of up to 1,800 m
• Encrypted two-way radio communication
• Jamming and connection loss alerts
• Automatic packet retransmission in case of errors

Fast, intuitive, error-free setup

EN54 Fire ReX Jeweller comes fully assembled and ready to operate right out of the box. The range extender can be installed in minutes, without opening the enclosure for mounting. Ajax apps help integrate the device into the ecosystem in no time: just scan the QR code, assign a room and zone, and specify the device location for easier maintenance and identification. Device profile parameters are always up-to-date and instantly available in the apps. All settings are configured via toggles in an intuitive interface, eliminating the risk of human error.

Built for fire safety. Ready for much more.

EN54 Fire ReX Jeweller works with all EN54 Line devices, as well as wireless Ajax solutions for intrusion protection and automation. This flexibility makes it possible to deploy both standalone fire detection systems and integrated solutions that combine fire safety with intrusion protection.

Fire alarm system

• Fully compliant with EN 54
• Reliable detection of smoke and rapid temperature rise
• Audible and visual indication that meets strict regulatory requirements
• Automated control of fire protection and evacuation equipment during alarms
• System management via the CIE touch screen or Ajax apps

Fire alarm combined with intrusion protection

• Compliant with EN 54 and EN 50131 (Grade 2) standards
• Fire alarm, intrusion protection, video surveillance, and automation integrated in a single system
• Support for visual alarm verification for faster threat identification and response
• Enhanced system capabilities through automation
• Complete control of all devices via mobile and desktop Ajax apps

Visual verification of alarms

EN54 Fire ReX Jeweller supports both photo and video alarm verification via Ajax MotionCam detectors. Combined with automation scenarios, this makes it possible to create a complete visual verification system for fire and other alarms. An operator can quickly assess the situation, saving users from concerns and monitoring companies from unnecessary dispatches.

Stable performance even in a blackout

Main power supply
EN54 Fire ReX Jeweller connects directly to a 110–240 V, 50/60 Hz mains supply via dedicated power terminals. The power cable is not included, and the device must be wired directly into the electrical network

Backup battery
EN54 Fire ReX Jeweller features a compartment for installing one of the available backup batteries2:
EN54 Internal Battery (24h)
EN54 Internal Battery (72h)
Each battery provides up to 24 or 72 hours of autonomous operation3, respectively.

Batteries can be hot-swapped at any time without shutting down the CIE.

Immunity to lags, freezing, and viruses

EN54 Fire ReX Jeweller runs on OS Malevich, a real-time operating system developed by Ajax Systems. It is immune to viruses, resistant to cyberattacks, and extremely reliable. Action load and execute in less than a second after a smartphone tap, and automation scenarios are executed within the same rapid timeframe.
The range extender regularly receives over-the-air updates using the Wings communication protocol. Each update enhances the overall system performance and introduces new features, ensuring Ajax devices evolve and stay relevant for years.

Sabotage resistance

Informative push notifications
In case of an alarm, the system instantly notifies users via Ajax apps with critical alerts that include alarm type, device name, facility name, and room. Each detector-triggered alarm is also assigned a code, enabling monitoring companies to identify it quickly. The CIE transmits alarms to the Ajax PRO Desktop app or third-party monitoring software using proprietary protocols. Upon receiving an alarm, operators always knows exactly where help is needed.

Jamming detection and frequency hopping
The CIE constantly monitors the quality of wireless communication with system devices. If data packets are lost, it automatically switches to a different frequency within the band and reports the interference. Both the security company and users are notified about jamming attempts, ensuring the system stays one step ahead of sabotage.

Data encryption
All data stored and transmitted by the system is protected with block cipher encryption featuring a dynamic key. This makes it virtually impossible to reprogram the device, substitute, or steal the data.

Tamper alarm
EN54 Fire ReX Jeweller enclosure features two tamper buttons that trigger an alarm if the device is detached from the surface or removed from the mounting panel. To further resist dismantling attempts, the range extender is secured with a lock at the bottom of the enclosure. The lock can only be opened with a special key tool included in the complete set.
