In stock
Product Code
118603.278.BL1
SKU
AJ3601B

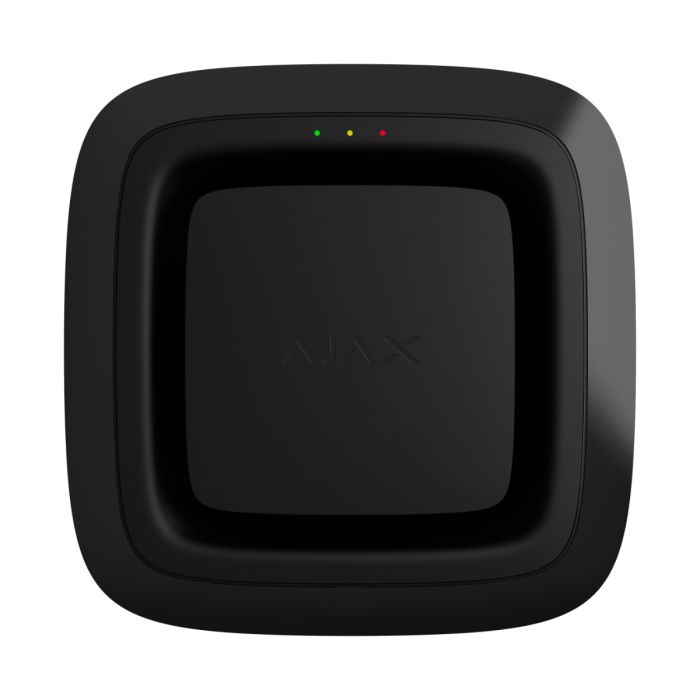

Ajax EN54 FireProtect (Sounder) Jeweller - Black
Wireless addressable fire alarm sounder in black.
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
EN54 FireProtect Jeweller sounders and VADs
Wireless addressable fire alarm sounders and visual alarm devices (VADs)
Product Versions
| EN54 FireProtect (Sounder) Jeweller Wireless addressable fire alarm sounder EN 54-3, EN 54-25, BOSEC, SBSC, DBI |
EN54 FireProtect (VAD) Jeweller Wireless addressable visual fire alarm device (VAD) EN 54-23, EN 54-25, BOSEC, SBSC, DBI |
| EN54 FireProtect (Sounder/VAD) Jeweller Wireless addressable fire alarm sounder combined with a visual alarm device (VAD) EN 54-3, EN 54-23, EN 54-25, BOSEC, SBSC, DBI |
Compare product versions
| EN54 FireProtect (Sounder) Jeweller EN 54-3 EN 54-25 BOSEC SBSC DBI Audible indication No visual indication |
EN54 FireProtect (VAD) Jeweller EN 54-23 EN 54-25 BOSEC SBSC DBI No audible indication Visual indication |
EN54 FireProtect (Sounder/VAD) Jeweller EN 54-3 EN 54-23 EN 54-25 BOSEC SBSC DBI Audible indication Visual indication |
Rules met. Conventions shattered.
EN54 FireProtect Jeweller sounders and VADs are a fusion of signature Ajax user experience and EN 54-certified reliability. Within three seconds of a fire alarm, they deliver audible, visual, or combined alerts. Regardless of the version, the devices are equally suited for wall or ceiling mounting. Installation itself takes just minutes — no disassembly required, with built-in communicators already in place. Maintenance is just as effortless, thanks to real-time monitoring, early low-battery warnings in Ajax apps, and swift battery swap.
Built to stand out
- Versatile installation: wall or ceiling
- Built-in radio communicators
- Hassle-free setup and remote maintenance
- Three versions to cover any need
Discover future-proof hardware
- Compact enclosure - with sleek design
- Two installation options - on wall or ceiling
- Rotatable SmartBracket mounting panel - for optimal device position
- Battery compartment - for tool free battery replacement
- Optional lock on SmartBracket - to limit attempts to remove the device
Unmissable alerts that save time — and lives
Choose a device with the alert type that best suits project requirements: sound only, visual only, or a two-in-one solution. Each option is designed to guarantee effective on-site alarm warning in full compliance with EN 54 standards.
Visual indication
Both EN54 FireProtect (VAD) Jeweller and EN54 FireProtect (Sounder/VAD) Jeweller feature a perimeter LED frame. During an alarm, the frame flashes with intense red light, following a compliant temporal pattern. Each visual alarm device can be mounted either on a wall or ceiling. This removes installation constraints and gives engineers the flexibility to achieve optimal visual coverage with fewer devices.
Sound indication
EN54 FireProtect (Sounder) Jeweller and EN54 FireProtect (Sounder/VAD) Jeweller are equipped with a powerful 100 dB buzzer to ensure alerts are heard even in noisy environments. With 32 selectable tones, installers can choose the sound that meets local regulations and indicates specific types of danger. Configuration is quick and intuitive — just a few clicks in an Ajax app.
- 100 dB buzzer
- 32 selectable tones
Installation experience beyond standards
With Ajax, technological excellence is not only about compliance — it is about design that cuts down on installer workload and makes system setup pleasant, intuitive, and error-free. Ajax sounders and VADs deliver wireless installation as it should be — complete in just minutes.
| Adding to the CIE | Installation | Testing |
| Adding a sounder or VAD to the system is as simple as scanning a QR code and making a few taps in an Ajax app. The installer only needs to set key parameters, including the virtual room, fire zone, and exact device location. Configuration takes just a few toggles — no complex programming or scenario planning required. | The device is mounted easily onto the SmartBracket panel — no need to disassemble the enclosure. Installers can also fine-tune positioning by rotating the device up to 90 degrees. For added security, the complete set includes an optional lock to help prevent unauthorized removal. | The device automatically tests the Jeweller signal strength and alarm annunciation. Installers can initiate the test with a simple tap, and the results appear in the event log within seconds. |
Unique wireless technology
When every second counts, there's no room for delays or dropped connection. That's why Ajax sounders and VADs use the Jeweller two-way radio communication protocol. This proprietary Ajax technology goes beyond the standard and helps activate sounders and VADs in as little as 3 seconds after a fire alarm is triggered.
Devices communicate with the CIE at distances1 of up to 1,700 meters out of the box — no external communicators required. For sites with obstacles, an Ajax range extender can double the coverage or use an Ethernet connection to create a separate radio network.
- Up to 1,700 m of radio communication with the CIE or range extender1
- Built-in communicators
- 3-second alarm delivery
- Frequency hopping and jamming detection
Efficient autonomy for years to come
Pre-installed batteries provide up to 5 years of autonomous operation. Real-time battery status is always visible in Ajax apps, so there is no need for unnecessary maintenance visits. Service companies also receive early low-battery notifications for timely replacements. And when it's time to change the batteries, the installer simply removes the battery cover — no tools or enclosure disassembly required.
- Up to 5 years of operation on pre-installed batteries
- Quick battery replacement without tools and device disassembly
- Early low-battery notifications in Ajax apps
| Approval | EN54-3, EN54-25, SBSC, BOSEC |
|---|---|
| Category Type | Sounder |
| Colour | Black |
| IP Rating | IP54 |
| System Type | Wireless |
| Clearance | No |
Write Your Own Review
Communication
| Jeweller communication technology |
Proprietary wireless communication technology to transmit commands, alarms, and events. Key features: Two-way communication. Advanced sabotage protection. Block encryption featuring a dynamic key. Instant notifications. Remote control and configuration in Ajax apps. |
| Frequency bands |
866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz |
| Maximum effective radiated power (ERP) |
up to 20 mW Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation |
GFSK |
| Radio communication range |
up to 1,700 m Between the device and control and indicating equipment (CIE) or a range extender in an open space. |
| Encrypted communication |
All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. |
Alarm annunciation
| Alarm type |
Acoustic |
| Sound volume |
At a distance of 1 m Tone 1: 970 Hz — min 71, max 100 dB Tone 2: 800 Hz / 970 Hz @ 2 Hz — min 76, max 100 dB Tone 3: 800–970 Hz @ 1 Hz — min 76, max 96 dB Tone 6: 554 Hz, 0.1 s / 440 Hz, 0.4 s — min 72, max 92 dB Tone 7: 500–1200 Hz, 3.5 s / 0.5 s OFF — min 75, max 98 dB Tone 13: 1200–500 Hz @ 1 Hz — min 75, max 98 dB Adjusted by a PRO or user with admin rights in an Ajax app. |
| Current consumption in alarm mode |
55 mA |
| Sound pattern |
32 tones |
| Sound synchronization |
An audible alarm is automatically synchronized on all devices with a sounder connected to the same CIE. |
| Alarm annunciation test |
To check the visual alarm signal to ensure fire alarm signals are visible in the premises. |
Sabotage protection
| Tamper button |
Fault notification when an attempt is made to remove the device from the mounting panel. |
| Lock for SmartBracket |
to secure the device on the SmartBracket mounting panel When locked, the lock secures the device and prevents it from being removed without a special tool. |
| Protection against spoofing |
device authentication |
| Connection loss detection |
after 36 s Detection time depends on Jeweller settings. |
Power supply
| Battery |
4 × CR123A Pre-installed. |
| Tool-free battery replacement |
To replace the batteries, open the lids of the battery compartments. Tool-free battery replacement |
| Reverse polarity protection |
Prevents device damage if the batteries are put in incorrectly. |
| Recommended battery type |
Huiderui CR123A; 3 V; 1,600 mAh, LiMnO₂ |
| Calculated battery life |
up to 5 years |
Enclosure
| Dimensions |
145 × 145 × 51 mm |
| Weight |
527 g |
| Operating temperature range |
from -10 °C to +60 °C |
| Operating humidity |
up to 80% |
| Protection class |
IP54 |
| Flammability | UL 94 V-0 |
Complete set
| Contains | EN54 FireProtect (Sounder) Jeweller 4 × CR123A battery (pre-installed) SmartBracket mounting panel Installation kit Quick start guide |
