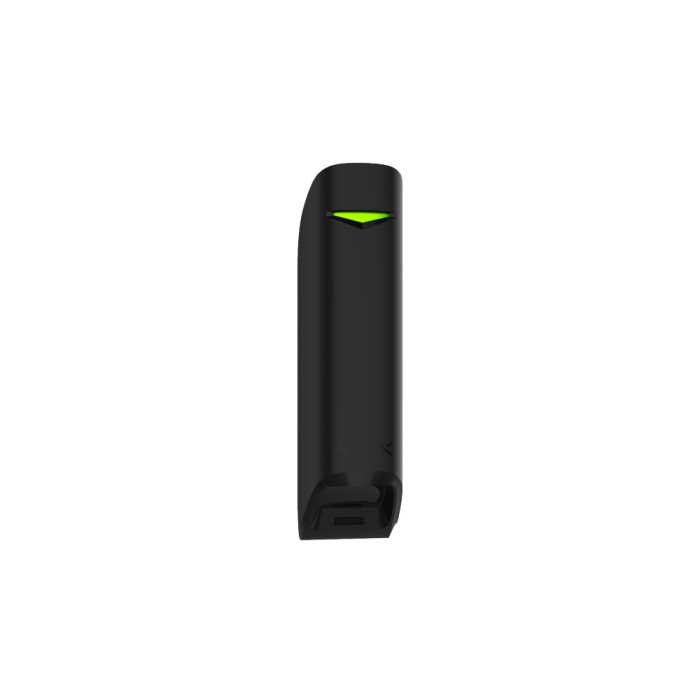

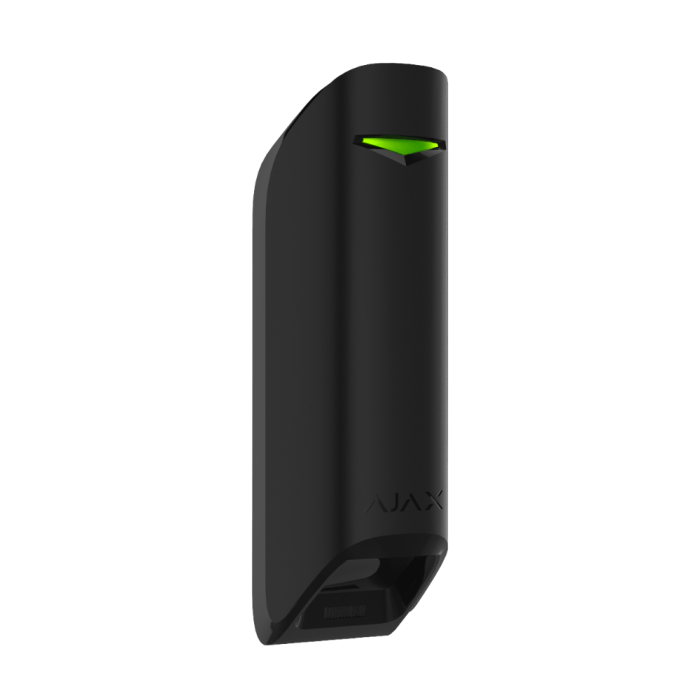

Ajax MotionProtect Curtain Jeweller (8PD) - Black
Wireless IR curtain motion detector
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
MotionProtect Curtain Jeweller
Narrow beam indoor motion detector. Protects windows, doors, and valuables
Key features
Detects motion with a range of up to 15 meters
Works up to 3 years on the pre-installed battery
Transmits alarms at a distance of up to 1,700 meters away from the hub
Reliable perimeter protection
At home
With the MotionProtect Curtain detectors, you can secure the perimeter of your house and freely move indoors. If a stranger breaks in, the system will raise an alarm and call the security company.
In a garage
Burglars won't get through the garage door undetected when MotionProtect Curtain is in action. The curtain detector will continue to operate even if the temperature drops to -10°C.
At a museum
The visitors can stroll the exhibits as they please. But if they cross the line and reach towards an artwork, an alarm will be raised.
In a pet-friendly apartment
When installed correctly, MotionProtect Curtain keeps your private property safe and ignores the pets, even if they are Saint Bernards.
Proprietary optical technology
To create MotionProtect Curtain, we’ve developed an optical system of two infrared sensors and a multifaceted mirror. This system allows the detector to receive twice as much information about what is going on in the protected area and instantly react to human presence.
Rapid reaction to threats
Whether the intruder is running or sneaking — MotionProtect Curtain is always on duty. As soon as they enter its field of view, the detector analyzes signals from both PIR sensors and immediately sends an alert.
Unique wireless technology
Jeweller is Ajax’s proprietary radio protocol for secure two-way communication. It provides block encryption and device authentication during each communication session with an Ajax hub or radio signal range extender. Jeweller prevents sabotage, spoofing, and data theft.
- Up to 1700 m of communication range in an open space
- Data encryption
- Notification of jamming and connection loss
- Automatic power adjustment
2-minute set-up
MotionProtect Curtain connects to the security system via Ajax app: scan the QR code, add the detector to the room, and proceed to installation.
| Adding to the system | Installation using the SmartBracket | Installation using the angle mount | Setup |
| Pairing with the security system via QR code | Effortless installation with the SmartBracket mounting panel | Effortless installation with the Angle bracket mounting panel | Configuring and testing in mobile and desktop apps |
| Approval | Grade 2 (EN 50131) |
|---|---|
| Category Type | Motion detectors |
| Colour | Black |
| IP Rating | IP54 |
| System Type | Intruder |
| Clearance | No |
Write Your Own Review
Communication
| Jeweller communication technology |
Proprietary wireless communication technology to transmit commands, alarms, and events. Key features: Two-way communication. Advanced sabotage protection. Block encryption featuring a dynamic key. Instant notifications. Remote control and configuration in Ajax apps. |
| Frequency bands |
866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz |
| Maximum effective radiated power (ERP) |
up to 20 mW Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation |
GFSK |
| Radio communication range |
up to 1,700 m Between the device and control and indicating equipment (CIE) or a range extender in an open space. |
| Encrypted communication |
All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. |
| Radio communication range |
up to 1,700 m Between the device and a hub (or a range extender) in an open space. |
| Encrypted communication |
All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. |
Detection
| Sensitive element |
2 × PIR sensors |
| Motion detection distance | up to 6–15 m When installed at a height of 2.4 m, and the Correlation Signal Processing feature is disabled. It also depends on the sensitivity level adjusted in the device settings. up to 6–8 m When installed at a height of 2.4 m, and the Correlation Signal Processing feature is enabled. It also depends on the sensitivity level adjusted in the device settings. |
| Motion detection angles | horizontal — 6° vertical — 90° |
| Motion detection speed | 0.3 to 2.0 m/s The direction of the detector lens should be perpendicular to the intended path of entry into the facility. |
| Sensitivity | 3 levels Adjusted by a PRO or user with admin rights in the Ajax app. |
| Pet immunity | Install the detector upside down to prevent it reacting to domestic animals. |
| Temperature compensation | Effective motion detection at temperatures from -10°C to +40°C. |
Sabotage protection
| Tamper alarm |
Notifications on attempts to detach the detector from the surface or remove it from the mounting panel. |
| Protection against spoofing |
device authentication |
| Connection loss detection |
after 36 s Detection time depends on Jeweller settings. |
Main supply
| Battery |
1 × CR123A Pre-installed. |
| Type |
Type C |
| Calculated battery life |
up to 3 years |
Enclosure
| Detector Dimensions |
134 x 44 x 34 mm |
| Weight |
118 g |
| Operating temperature range | from -10 °C to +40 °C |
| Operating humidity |
up to 75% |
| Protection class |
IP54 |
Complete set
| Contains | MotionProtect Curtain Jeweller SmartBracket mounting panel Bracket Installation kit CR123A battery (pre-installed) Quick start guide |
