In stock
Product Code
87531.180.BL1
SKU
87531.180.BL1

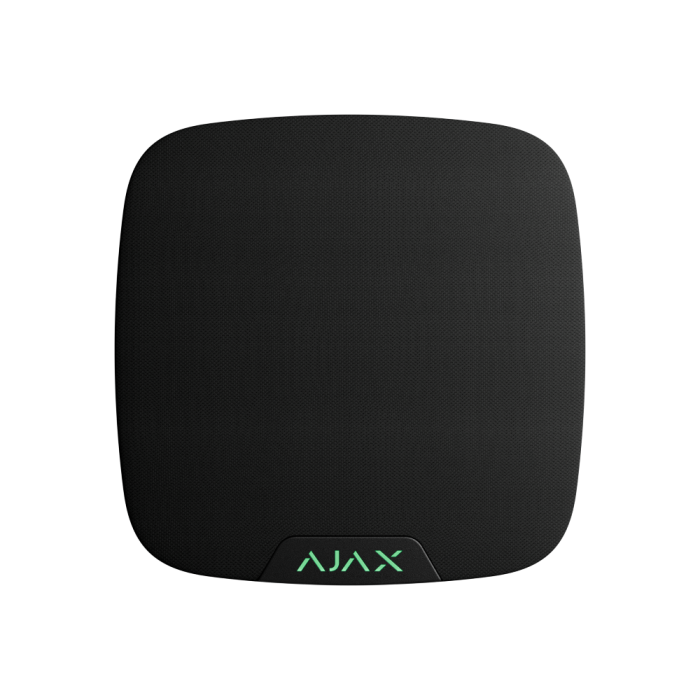

Ajax SpeakerPhone (8EU) ASP (Voice module) - Black
Wireless voice module for alarm verification
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
SpeakerPhone Jeweller is a wireless voice module for audio alarm verification, allowing a monitoring company to speak to people on site, listen to what is happening and deter intruders after an alarm. It helps reduce false dispatches and speeds up decision-making by giving the CMS operator direct two-way voice communication with the protected premises.
Key features:
- Wireless voice module for alarm verification
- Full-duplex two-way voice communication
- Lets the monitoring company contact the site after an alarm
- AI-powered sound optimisation for clearer speech
- Loud built-in speaker for deterrence and announcements
- Supports audio scenarios and recorded messages
- SIP and CMS integration options
- Optional external power supply
| Category Type | Voice modules |
|---|---|
| Colour | Black |
| IP Rating | IP50 |
| System Type | Intruder |
| Clearance | No |
Write Your Own Review
Communication
| VoRF communication technology |
Proprietary wireless audio streaming protocol using time division duplex. Key features:
|
| Radio communication range |
up to 1,700 m Between the device and a hub in an open space. |
| Frequency band |
863.0–865.0 MHz |
|
|
|
| Jeweller communication technology |
Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
|
| Frequency bands |
866.0 – 866.5 MHz Depends on the sales region. |
| Maximum effective radiated power (ERP) |
up to 20 mW Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio communication range |
up to 1,700 m Between the range extender and a hub in an open space. |
| Encrypted communication |
All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. |
| Wings communication technology |
Proprietary wireless communication technology to update firmware. Key features:
|
| Frequency bands |
866.0 – 866.5 MHz Depends on the sales region. |
| Radio communication range |
up to 1,700 m Between the range extender and a hub in an open space. |
| Encrypted communication |
All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. |
Key features
| AI-powered sound optimization |
It provides:
|
| Voice audibility |
up to 10 m Auto adjustment of the microphone sensitivity. |
| Output speaker power |
3 W |
| Speaker volume |
up to 103 dB 83 dB at a distance of 1 m. |
| Frequency range |
from 200 Hz to 16 kHz |
| Audio codec |
Opus |
| Remote firmware update |
When a new firmware is available, an admin or PRO with the rights to configure the system can run the update in Ajax apps. The hub must be connected to Ajax Cloud via Ethernet or Wi-Fi. |
Sabotage protection
| Protection against spoofing | device authentication |
| Tamper alarm |
Notifications on attempts to detach the device from the surface. |
| Communication loss detection | after 36 s Detection time depends on the Jeweller or Jeweller/Fibra settings. |
| Microphone cut-off detection | Notifications of attempts to damage an in-built microphone. |
Power supply
| Battery |
4 × CR123 |
| Optional external power supply |
12 V⎓, 1 A |
Enclosure
| Dimensions |
112 × 112 × 42 mm |
| Weight | 270 g |
| Operating temperature range | from 0 °C to +40 °C |
| Operating humidity | IP50 |
Colour
| Available colours | Black, White |
Complete Set
| Contains | SpeakerPhone Jeweller SmartBracket mounting panel Installation kit Quick start guide |
Warranty
| Warranty Period | 24 months |
