Ajax Superior DoubleButton G3 Jeweller (8EU) ASP - Black

In stock
Product Code
138643.79.BL1
SKU
138643.79.BL1

Ajax Superior DoubleButton G3 Jeweller (8EU) ASP - Black

Wireless hold-up device for high-risk facilities

DELIVERY

We always aim to same day dispatch on all orders received before 2.30pm.

Read more about our delivery policy

TRADE COUNTER

Firesense also offer the ability to collect your order from our trade counter.

Read more about our trade counter

Ajax Superior DoubleButton G3 Jeweller

Wireless hold-up device for high-risk facilities

Engineered for high stakes. Protected against mistakes.

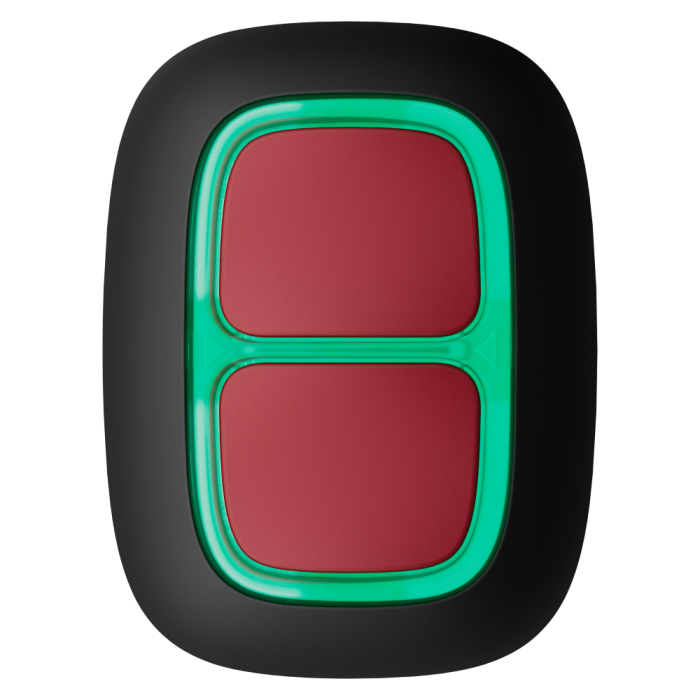

Superior DoubleButton G3 Jeweller іs the first wireless Grade 3 hold-up device. It is designed with maximum protection against false alarms: both buttons must be pressed simultaneously to trigger an alarm, and a plastic divider prevents accidental activation. Confirmed alarm mode can also be enabled, allowing a predefined alarm activation algorithm. The device communicates with a hub at a distance of up to 1,500 m. It can be mounted on a flat surface with a Holder fastener or carried around as a portable device. A durable, IP55-rated enclosure withstands almost any environment, while an enhanced battery powers the device for up to five years. All settings and updates can be managed remotely via Ajax apps.

Built to stand out

Protection against accidental alarm activation Fully wireless device with up to five years of battery life
Compliance with Grade 3 requirements Installation and setup within a few minutes



Triple-level protection against false alarms

Physical
To activate an alarm, both buttons must be pressed simultaneously. They are stiff and parted by a plastic divider.

Software
An alarm is triggered either by a long press on both buttons simultaneously or by two brief presses.

Confirmed alarm
An alarm can be confirmed by pressing one DoubleButton device twice or two different DoubleButton devices in sequence.

Enhanced wireless technology

Superior Jeweller is a next-generation Ajax radio protocol developed for wireless devices of the Ajax Superior product line. It delivers stronger encryption, advanced frequency hopping, and outstanding energy efficiency. This makes Superior Jeweller the first-ever wireless communication technology to meet Grade 3 requirements.

  • Up to 1,500 m of communication range in open space1
  • Instant alarm and malfunction notifications
  • Two-way radio communication with enhanced encryption
  • No wires are required

Long-lasting performance

  • Up to five years of autonomous operation
  • High-performance battery from proven manufacturers
  • Pre-installation battery testing for reliability
  • Minimal impact of threshold temperatures on battery life
  • Early low-battery warnings – after four years of operation
  • Battery charge auto-check once a day

Sabotage resistance

  • Communication loss detection
  • Frequency hopping for radio interference and jamming protection
  • IP55 and IK06 protection
  • Automatic device self-diagnosis with status report
  • Data encryption
  • Anti-sabotage features are compliant with Grade 3 requirements.

Hassle-free installation and setup

Installation Setup Configuration Monitoring
Ready to operate straight out of the box
Up to five years of operation on a pre-installed battery
Effortless and secure mounting on a surface2 or carrying around
Adding to the system via QR code
Setup in minutes in an Ajax app — no programming required
Configuration and testing remotely or on-site
Automation scenario configuration remotely or on-site
Battery charge auto-check once a day
Real-time maintenance notifications
Attributes
Approval Grade 3 (EN 50131)
Category Type Buttons & key fobs
Colour Black
IP Rating IP55
System Type Intruder
Clearance No
Write Your Own Review
You're reviewing:Ajax Superior DoubleButton G3 Jeweller (8EU) ASP - Black
Your Rating

Communication

Superior Jeweller communication technology
Proprietary wireless protocol for transmitting commands, alarms, and events. An upgraded version of the Jeweller radio protocol for Ajax Superior devices, ensuring compliance with Grade 3 (EN 50131).
Key features:
Two-way communication.
Advanced sabotage protection.
Enhanced block encryption with a dynamic key.
Instant notifications.
Remote configuration in the Ajax apps.
Frequency bands
865.0–868.0 MHz
868.0–868.6 MHz
868.7–869.2 MHz
869.4–869.65 MHz
Maximum effective radiated power (ERP)
up to 20 mW
Automatic power control to reduce power consumption and noise interference.
Radio signal modulation
GFSK
Radio signal range
up to 1,500 m
Between detector and control panel (or range extender) in an open space.
Encrypted communication
Adjusted by PRO or user with admin rights in the Ajax app.
Tilt sensor activation threshold All the data stored and transmitted are protected by block encryption with a dynamic key.
Frequency hopping
Radio communication uses frequency hopping to prevent interception and jamming.



Key features

Number of buttons 2
Protection against accidental pressing
both buttons pressing
protective plastic divider
Alarm confirmation
with one DoubleButton or several
To raise a confirmed alarm (hold-up event), you need to perform the selected action.
LED backlight indicating command delivery
The LED brightness is adjusted in Ajax apps.
Alarm scenario
by the DoubleButton pressing
The control mode for automation devices is not supported.



Sabotage protection

Protection against spoofing
device authentication



Power supply

Battery 1 × CR2032
Pre-installed.
Type Type C
Calculated battery life Up to 5 years



Enclosure

Detector dimensions 47 x 35 x 16 mm
Weight  17 g
Operating temperature range from -10 °C to +40 °C
Operating humidity up to 75%
Protection class IP55



Colour

Available colours Black, White



Complete Set

Contains Superior DoubleButton Jeweller
CR2032 battery (pre-installed)
Quick start guide
