In stock
Product Code
140411.11.WH1
SKU
140411.11.WH1
Ajax Superior HomeSiren G3 Jeweller (8EU) ASP - White
Wireless siren with advanced sabotage protection and an LED connector
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.

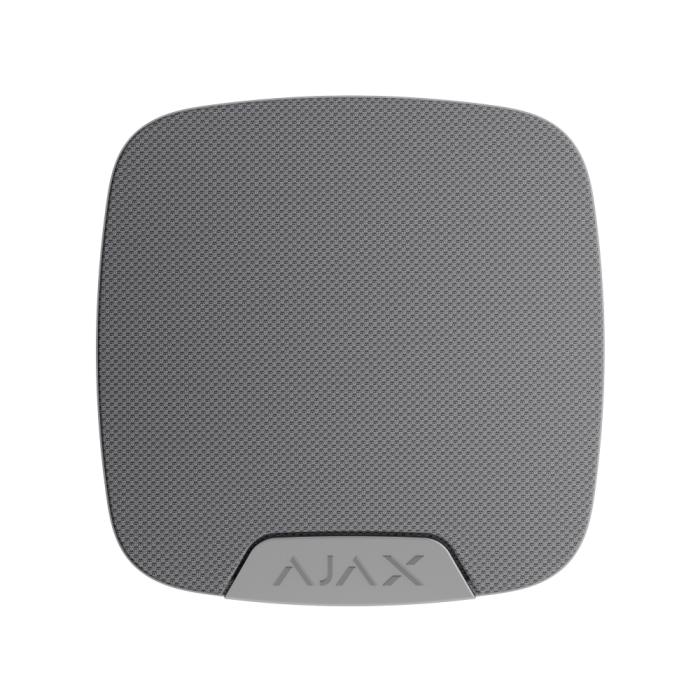

Ajax Superior HomeSiren G3 Jeweller
Wireless siren with advanced sabotage protection and an LED connector
Unmissable alerts for high stakes. Now wireless.
Superior HomeSiren G3 Jeweller is the world's first wireless Grade 3 indoor siren. It alerts users to intrusions, deters trespassers, reports door openings, indicates entry and exit delays, and informs if alarms have occurred in the system. The device is powered by enhanced pre-installed batteries that last up to 4 years1. Using the Superior Jeweller radio protocol, it provides a secure wireless connection to an Ajax hub or range extender at a distance of up to 3,500 m. The siren is protected against sabotage and detects jamming attempts. Its settings can be adjusted remotely via Ajax apps.
Built to stand out
- LED and sound indication2 of alarms, security mode changes, delays, and other events
- Fully wireless device with up to 4 years1 of battery life
- Grade 3 sabotage protection: the siren directly detects jamming
- Installation and setup within a few minutes
One device, five missions
An audible alarm to deter intruders and attract attention
Security state indication to inform users when the system is armed/disarmed
LED and sound indication of entry/exit delays
Chime feature to alert users when opening detectors are triggered
After-alarm LED indication to inform users of any alarms in the system
Adjustable alarms
Adjustable signal volume for alarms and others events
Group mode for responding to alarms only within the assigned group
Adjustable alarm duration - from 3s to 3 mins
Built-in LED indication
Support for connecting an external LED indicator
Enhanced wireless technology
Superior Jeweller is a next-generation Ajax radio protocol developed for wireless devices of the Ajax Superior product line. It delivers stronger encryption, advanced frequency hopping, and outstanding energy efficiency. This makes Superior Jeweller the first-ever wireless communication technology to meet Grade 3 requirements.
Up to 3,500 m of communication range in open space
Instant alarm and malfunction notifications
Two-way radio communication with enhanced encryption
Device polling interval starting from 12 s
Long-lasting performance
Up to 4 years of autonomous operation
High-performance batteries from proven manufacturers
Pre-installation battery testing for reliability
Minimal impact of threshold temperatures on battery life
Early low battery notifications
Easy battery replacement within minutes
Hassle-free installation and setup
| Intallation | Setup | Configuration | Monitoring |
| Ready to operate straight out of the box Up to 4 years1 of operation on pre-installed batteries Easy connection of an external LED via a terminal All necessary fasteners included in the complete set |
Adding to the system via QR code Setup in minutes via an Ajax app — no programming required |
Configuration and testing remotely or on-site | Instant notifications of alarms and events Real-time notifications when maintenance is required Immediate notifications of jamming detection |
| Approval | Grade 3 (EN 50131), PD 6662:2017 |
|---|---|
| Category Type | Sirens |
| Colour | White |
| IP Rating | IP30 |
| System Type | Intruder |
| Clearance | No |
Write Your Own Review
Communication
| Superior Jeweller data transfer protocol |
Proprietary wireless protocol for transmitting commands, alarms, and events. An upgraded version of the Jeweller radio protocol for Ajax Superior devices, ensuring compliance with Grade 3 (EN 50131).
|
| Frequency bands |
865.0–868.0 MHz 868.0–868.6 MHz 868.7–869.2 MHz 869.4–869.65 MHz |
| Maximum effective radiated power (ERP) |
up to 25 mW Automatic power control to reduce power consumption and noise interference. |
| Radio signal modulation |
GFSK |
| Radio signal range |
up to 3,500 m Between the device and a hub (or a range extender) in open space. The maximum range depends on the hub model. |
| Encrypted communication |
All the data stored and transmitted are protected by block encryption with a dynamic key. |
| Frequency hopping |
Radio communication uses frequency hopping to prevent interception and jamming. |
Key features
| Alarm type | acoustic and LED Buzzer and LED. |
| Type of warning device | type W Internal, self-powered. |
| Alarm volume | from 81 to 105 dB at a distance of 1 m Adjusted by PRO or user with admin rights in the Ajax app. 94 dB at a distance of 1 m |
| Alarm duration | from 3 s to 3 min Adjusted by PRO or user with admin rights in the Ajax app. |
| Siren sound frequency | 3.4 ± 0.5 kHz |
| Ability to connect an additional LED | 3 V⎓ An additional LED works in parallel with the built-in LED of the siren and fully replicates its indication. |
| Events indication |
|
| Chime |
The siren emits a special sound to indicate the following events:
|
Sabotage protection
| Tamper alarm | Notifications on attempts to detach the siren from the surface or remove it from the mounting panel. |
| Holding screw |
To secure the keypad on SmartBracket. |
| Protection against spoofing |
device authentication |
| Jamming detection |
The siren detects jamming and then sounds an alarm. |
| Communication loss detection |
after 36 s Detection time depends on the Jeweller or Jeweller/Fibra settings. |
Power supply
| Battery | 2 × CR123A 3 V⎓ Lithium battery Pre-installed. |
| Type | Type C |
| Calculated battery life | up to 4 years in standby mode up to 2.5 years with one 90-second alarm per day |
| Operating voltage range | 1.9−3.3 V⎓ |
| Full capacity |
3,200 mAh |
Enclosure
| Dimensions | 75 × 76 × 27 mm |
| Weight | 92 g |
| Operating temperature range | from -10 °C to +40 °C |
| Operating humidity | up to 75% |
| Protection class |
IP30, IK07 |
Colour
| Available colours | Black, White |
Complete Set
| Contains | Superior HomeSiren G3 Jeweller SmartBracket mounting panel 2 × CR123A battery (pre-installed) Connector for LED indicator Installation kit Quick start guide |
Warranty
| Warranty Period | 24 months |
