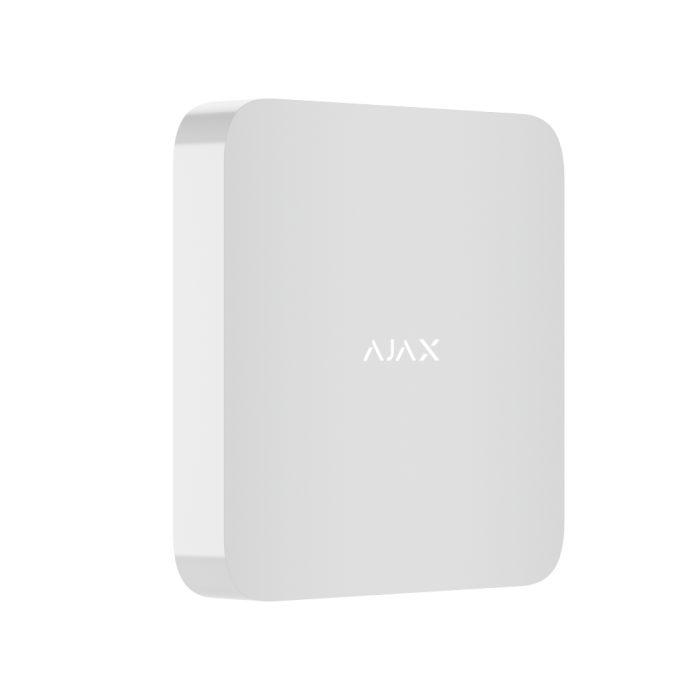

Ajax Superior Hub G3 Jeweller (8PD/UEU) - White
Wireless control panel with support for photo verification. Connectable via Ethernet, Wi-Fi, and two SIM cards (2G/LTE).
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
Superior Hub G3 Jeweller - black
Wireless control panel with support for photo verification. Connectable via Ethernet, Wi-Fi, and two SIM cards (2G/LTE).
High security for high stakes. Now wireless.
Superior Hub G3 Jeweller is the heart of the world's first wireless Grade 3 security system. The hub communicates with Ajax devices using Superior Jeweller and TurboWings protocols. With a range of up to 3,500 m, the wireless connection stays stable even through thick walls and on large sites. The hub maintains internet connectivity through four independent channels — Ethernet, Wi-Fi, and two SIM cards — with automatic switching to always stay online. And with backup1 power, the system can operate for up to 16 or 60 hours during an outage. All this creates solid ground for the unified Ajax ecosystem — combining intrusion protection, fire and life safety, video surveillance, and comfort and automation.
Built to stand out
- One system for every need: fire safety, intrusion protection, video surveillance, and comfort and automation
- Mobile and desktop Ajax apps for end users and security professionals for all-in-one system control
- Hassle-free installation and setup with all communicators and a power supply unit built in — no enclosure disassembly or additional hardware required
- Industry-leading sabotage protection, tested by independent laboratories for compliance with international and local security standards
Grade 3 protection for small and medium-sized sites
- Up to 3,500 m of communication range in open space
- Up to 250 devices
- Up to 200 users
- Up to 25 security groups
- Up to 528 video devices
- Up to 64 automation scenarios
Reliable communication out of the box
- Communication with system devices
- Connection to Ajax Cloud and apps
- Event transmission to monitoring companies
- Superior Jeweller and Jeweller protocols for secure wireless communication with connected devices
- TurboWings and Wings protocols for photo transmission and over-the-air updates
- VoRF protocol for full-duplex audio communication between site and monitoring station
Unique wireless technologies
Ajax systems use secure two-way communication powered by proprietary radio protocols. Superior Jeweller delivers Grade 3 level reliability with strong encryption, advanced frequency hopping, and outstanding energy efficiency. TurboWings complements it by transmitting visual data, large data packets, and firmware updates. It is also used to transmit device backups to the hub in case of connection loss.
- Up to 3,500 m of communication range in open space
- Notifications of jamming and connection loss
- Two-way radio communication with enhanced encryption
- Over-the-air firmware updates
- Enhanced frequency hopping to prevent sabotage
- Alarm visual verification
Sabotage resistance
- Tamper button to detect dismantling or detachment
- Authentication of the hub and connected devices to prevent spoofing
- Detection of communication loss with Ajax devices
- Detection of communication loss with Ajax Cloud
- Detection of communication loss with the monitoring station
- Frequency hopping to prevent radio interference and jamming
- Jamming detection and notification
- Backup power for uninterrupted system operation
Stable performance even during outages
Main power supply
Superior Hub G3 Jeweller uses a 110–240 V, 50/60 Hz mains supply as its primary power source.
Backup battery
The hub can house a hot-swappable battery1 that provides up to 16 or 60 hours of autonomous operation in case of a power outage.
Hassle-free installation and setup for installers everywhere
| Installation | Setup | Configuration | Monitoring |
| Installation without enclosure disassembly All communicators and a power supply unit built in Built-in bubble level Perforated parts for installer-friendly cable management Battery hot swapping |
Adding to a space via QR code Setup in minutes in an Ajax app — no programming required |
Remote control and configuration of parameters and permissions in mobile and desktop apps | Instant notifications of alarms and events Real-time notifications when maintenance is required |
| Approval | Grade 3 (EN 50131), PD 6662:2017 |
|---|---|
| Category Type | Hubs |
| Colour | White |
| IP Rating | IP30 |
| System Type | Intruder |
| Clearance | No |
Write Your Own Review
Capacity
| Ajax devices |
up to 250 Specifically: up to 5 range extenders; up to 10 sirens without Superior Jeweller support; up to 50 keypads with a built-in siren without Superior Jeweller support. |
| Users |
up to 200 Any number of admin users within the hub limit. PRO accounts for installers. PRO accounts for installation and monitoring companies. Access management for users. |
| Automation scenarios |
up to 64 By alarm. By schedule. By arming/disarming. By temperature, humidity, CO2 concentration. By pressing Button. By touching LightSwitch. |
| Security groups |
up to 25 |
| Rooms |
up to 50 |
| Event log |
up to 1000 events Events are saved on the non-volatile onboard flash memory. |
Wireless communication
| Data transfer protocols | Superior Jeweller To transmit commands, alarms, and events. An upgraded version of the Jeweller radio protocol for Ajax Superior devices, ensuring compliance with Grade 3 (EN 50131). If at least one device operates via the regular Jeweller protocol, the system will be limited to Grade 2: encryption remains, but frequency hopping is disabled. Jeweller To transmit commands, alarms, and events from devices without Superior Jeweller support. TurboWings To transmit photos from devices supporting TurboWings. Wings To transmit large data packets, such as firmware updates, and photos from devices without TurboWings support. VoRF Proprietary wireless audio streaming protocol using time division duplex. |
| Frequency bands | 865.0–868.0 MHz 868.0–868.6 MHz 868.7–869.2 MHz 869.4–869.65 MHz |
| Radio communication range | up to 3,500 m Between a hub and a radio signal range extender, or between a range extender and connected devices (in an open space). The maximum range depends on the connected device. |
| Maximum effective radiated power (ERP) | up to 20 mW Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Advanced encrypted communication | The communication between the device and the hub is protected by an advanced encryption scheme that ensures data confidentiality and integrity. |
| Enhanced frequency hopping | To prevent radio interference and jamming. For enhanced hopping to function, all devices in the system must use the Superior Jeweller protocol. If even one device uses the regular Jeweller protocol, hopping will be limited to only 2 frequencies. |
Communication channels
| Ethernet |
1 × 8P8C socket Up to 100 Mbps. |
| Cellular | 2 × micro–SIM slot |
| Cellular bands |
Cellular 2 × micro SIM slot Cellular bands 2G GSM900/DCS1800 (B3/B8) 4G (LTE) FDD B1/B3/B5/B7/B8/B20 Wi-Fi 802.11 b/g/n module Up to 600 Mbps. |
| Automatic switching between communication channels |
Switching between SIM cards — up to 4 minutes. Switching between 4G, 3G, and 2G networks on one SIM card — instantly. Switching between Ethernet and SIM card — instantly. |
| Communication channels prioritization |
Ethernet Wi-Fi Cellular connection Communication channels work in parallel to increase system reliability. Most of the data is transmitted via Ethernet. |
| External antenna connectors |
Jeweller Wings 4G (LTE) The system will notify users if ExternalAntenna is damaged. ExternalAntenna is sold separately. |
| Alarm Transmission System Categories |
SP2, SP5, DP3 |
| Control panel operation method |
Pass-through |
| Signaling security |
S2 Substitution security. |
| Information security |
I2 |
| Encryption algorithm |
AES 128 |
Notifications
| Supported notification types |
Push SMS Calls |
| Event types |
Alarms Video detections Malfunctions Armed modes System events Non-security alerts Automation devices Smart lock events Doorbell ringing Notification types are configured individually for each user. Notifications can be customized for A–F schemes according to EN 50131 requirements |
Photo verification
| Photo verification types |
Types depend on the detector and settings. |
| Photo delivery time |
up to 4.5 s — 320 × 240 px resolution Photo delivery time depends on the detector model and image resolution selected in the device settings. |
| Photo resolution |
up to 960 × 720 pixels Depends on the detector. |
| Number of photos in a series: |
from 1 to 5 pictures |
Monitoring
| Supported protocols |
SIA DC-09 (SIA-DCS) SurGard (Contact ID) ADEMCO 685 Other proprietary protocols |
| Event types |
System alarms and events Photo verifications Panic button coordinates |
Sabotage protection
| Tamper alarm |
The system sends notifications of attempts to open the hub casing lid or detach the casing from the surface. |
| Protection against spoofing |
Device authentication |
| Frequency hopping | The hub sends notifications of jamming or connection loss with the devices to all users and the monitoring company. |
| Jamming alert | Superior Hub G3 analyzes the noise level in the channel and the communication quality with the added devices and sends a notification in 30 seconds. |
Power supply
| Main power supply type |
Type A. |
| Device operating AC voltage range |
100–240 V~, 50/60 Hz From the main power supply. |
| Device operating DC voltage range |
6.0–8.2 V⎓ |
| Low battery voltage |
7 V= |
| Low battery recovery voltage |
8.135 V= |
| End of life battery voltage |
6.0 V= Superior Hub G3 switches off. |
| Minimum backup battery energy level in the charged state |
100% |
Autonomous operation
| On Superior Internal Battery (16h) |
up to 16 hours When Wi-Fi, Ethernet, and cellular (LTE) communication channels are enabled. Superior Internal Battery (16h) is not included in the complete set. up to 100 hours In Battery saving mode. |
| On Superior Internal Battery (60h) |
up to 60 hours When W-Fi, Ethernet, and cellular (LTE) communication channels are enabled. Superior Internal Battery (60h) is not included in the complete set. up to 300 hours In Battery saving mode. |
Current consumption
| Maximum nominal |
120 mA |
| Quiescent at nominal voltage* |
up to 120 mA When Wi-Fi, Ethernet, and cellular (LTE) communication channels are enabled. up to 115 mA When Ethernet and cellular (LTE) communication channels are enabled. up to 28 mA When Ethernet and other communication channels are disabled. * From the backup battery after the loss of the main power supply. |
Casing
| Dimensions |
216 × 216 × 45 mm |
| Weight |
1,200 g |
| Operating temperature range |
from −10 °C to +40 °C |
| Operating humidity |
up to 75% |
| Protection class |
IP30, IK06 |
Complete Set
| Contains |
Superior Hub G3 Jeweller SmartBracket mounting panel Power cable Ethernet cable Installation kit SIM card (depends on the sales region) Quick start guide |
