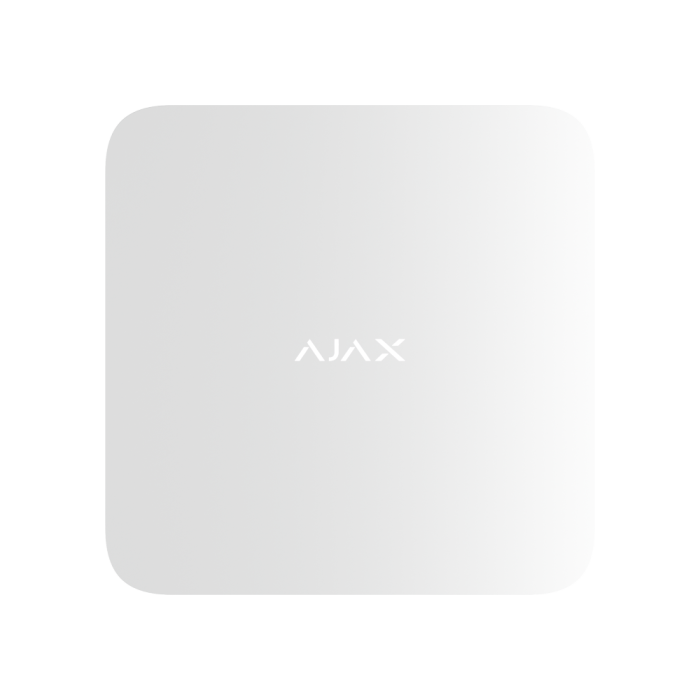

Ajax Superior ReX G3 Jeweller (8EU) plug type G - White
Wireless radio signal range extender with support for photo verification and Ethernet connection
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
Superior ReX G3 Jeweller
Wireless radio signal range extender with support for photo verification and Ethernet connection
More flexibility for wireless Grade 3 installations
Superior ReX G3 Jeweller extends the wireless network, ensuring stable communication between an Ajax hub and connected devices across large facilities. The range extender connects to the hub via radio protocols or Ethernet. A single system can include up to five range extenders, each supporting any device combination. Superior Jeweller and TurboWings deliver up to 3,500 m of radio network coverage in open space. Hot-swappable batteries, available in two versions, provide up to 16 or 60 hours of backup power.
Built to stand out
- Connection to the hub via radio protocols and Ethernet
- Support for visual verification
- Configuration via an Ajax app within two minutes
- Advanced sabotage protection verified by independent laboratories
Guaranteed alarm delivery
- Connection via Ethernet
- Connection via radio protocol
Superior Jeweller radio protocol
Transmits real-time device states, alarms, events, and all measured readings to Ajax apps.
TurboWings radio protocol
Transmits large data packets, such as photos from MotionCam detectors and firmware updates.
Alarm visual verification
The range extender works with wireless MotionCam detectors, which take a series of photos when triggered. By default, the first photo is delivered1 to an Ajax app within just 13 seconds. This helps users quickly assess the situation at the facility and respond appropriately to the threat.
Communication via Ethernet
In a challenging radio signal environment, the range extender connects to the hub via Ethernet, using it as the only or prioritized communication channel. Thus, a single Ajax system can cover an office center with underground parking, a metal hangar, or a multi-building warehouse.
Unique wireless technologies
Ajax systems use secure two-way communication powered by proprietary radio protocols. Superior Jeweller delivers Grade 3 level reliability with strong encryption, advanced frequency hopping, and outstanding energy efficiency. TurboWings complements it by transmitting visual data, large data packets, and firmware updates. It is also used to transmit device backups to the hub in case of connection loss.
- Up to 3,500 m of communication range in open space
- Notifications of jamming and connection loss
- Two-way radio communication with enhanced encryption
- Over-the-air firmware updates
- Enhanced frequency hopping to prevent sabotage
- Alarm visual verification
Stable performance even during outages
Main power supply
The range extender features a built-in PSU that is directly connected to a 110–240 V, 50/60 Hz mains supply.
Backup battery
The range extender has a compartment for a backup battery providing up to 16 or 60 hours of autonomous operation. The battery can be hot-swapped at any time without powering down the device.
Grade 3 sabotage resistance
- Tamper alarm on dismantling or detachment
- Frequency hopping against radio interference and jamming
- Regular device polling4 to control the device state
- Detection of connection loss with the hub and connected devices within 36 seconds
- Communication channel loss detection
- Device authentication to prevent spoofing
- Main power supply loss detection and instant switch to the backup battery
- ExternalAntenna breakage detection
Hassle-free installation and setup
| Installation | Setup | Configuration | Monitoring |
| Installation without enclosure disassembly All communicators and a power supply unit built in Built-in bubble level Perforated parts for installer-friendly cable management Battery hot swapping |
Adding to a space via QR code Setup in minutes in an Ajax app — no programming required |
Remote control and configuration of parameters and permissions in mobile and desktop apps | Instant notifications of alarms and events Real-time notifications when maintenance is required |
| Approval | Grade 3 (EN 50131), PD 6662:2017 |
|---|---|
| Category Type | Range extenders |
| Colour | White |
| IP Rating | IP20 |
| System Type | Intruder |
| Clearance | No |
Write Your Own Review
Connection possibilities
| Number of ReX Jeweller connected to the hub |
up to 5 Depends on the hub model. |
| Number of devices connected to ReX Jeweller | up to 249 |
Communication
| Data transfer protocols |
Superior Jeweller Jeweller Wings |
| Frequency bands | 865.0–868.0 MHz 868.0–868.6 MHz 868.7–869.2 MHz 869.4–869.65 MHz |
| Maximum effective radiated power (ERP) | up to 20 mW Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio communication range | up to 3,500 m Between a hub and a radio signal range extender, or between a range extender and connected devices (in an open space). The maximum range depends on the connected device and the hub model. |
| Encrypted communication | The communication between the device and the hub is protected by an advanced encryption scheme that ensures data confidentiality and integrity. |
| Frequency hopping | To prevent radio interference and jamming. For enhanced hopping to function, all devices in the system must use the Superior Jeweller protocol. If even one device uses the regular Jeweller protocol, hopping will be limited to only 2 frequencies. |
Communication channels
| Ethernet | 1 × 8P8C socket Up to 100 Mbps. |
| External antenna connectors |
Jeweller Wings The system will notify of the damaged antenna. Ajax ExternalAntenna is sold separately. |
Delivery time
| Alarm delivery time to the hub |
0.3 s |
| Photo delivery time to the hub |
18 s Via Superior ReX G3 Jeweller using the Wings channel. Delivery time depends on the settings. 10 s Via Superior ReX G3 Jeweller using the Ethernet channel. Delivery time depends on the settings. |
Sabotage protection
| Tamper alarm | The system receives notifications about attempts to detach the device from the surface or remove it from the mounting panel. |
| Protection against spoofing | device authentication |
| Jamming alert | Superior ReX G3 Jeweller analyzes the channel’s noise level and the quality of communication with added devices and sends an alert in 30 seconds. |
| Communication loss detection | after 36 s Detection time depends on the Jeweller or Jeweller/Fibra settings. |
Power supply
| Main power supply type | Type A. |
| Device operating AC voltage range | 110–240 V, 50/60 Hz From the main power supply. Up to 15 W of mains power consumption. |
| Device operating DC voltage range | 6.0–8.2 V⎓ |
| Low battery voltage | 7.0 V= |
| Low battery recovery voltage | 8.135 V= |
| End-of-life battery voltage | 6.0 V⎓ Superior ReX G3 Jeweller is switched off. |
| Minimum energy level for a backup battery in the charged state | 100% |
Autonomous operation
| On Superior Internal Battery (16h) | up to 16 hours When Ethernet is enabled. Superior Internal Battery (16h) is not included in the complete set. |
| On Superior Internal Battery (60h) |
up to 60 hours When Ethernet is enabled. Superior Internal Battery (60h) is not included in the complete set. |
Current consumption
| Maximum at nominal voltage |
87 mA |
| Quiescent at nominal voltage* |
Quiescent at nominal voltage* up to 87 mA When Ethernet is enabled. up to 29 mA When Ethernet is disabled. * From the backup battery after the loss of the main power supply. |
Enclosure
| Dimensions | 216 × 216 × 45 mm |
| Weight | 1,200 g |
| Operating temperature range | from −10 °C to +40 °C |
| Operating humidity | up to 75% |
| Protection class | IP20 |
Colour
| Available colours | Black, White |
Complete Set
| Contains | Superior ReX G3 Jeweller SmartBracket mounting panel Power cable Ethernet cable Installation kit Quick start guide |
Warranty
| Warranty Period | 24 months |
