In stock
Product Code
143592.111.WH1
SKU
143592.111.WH1

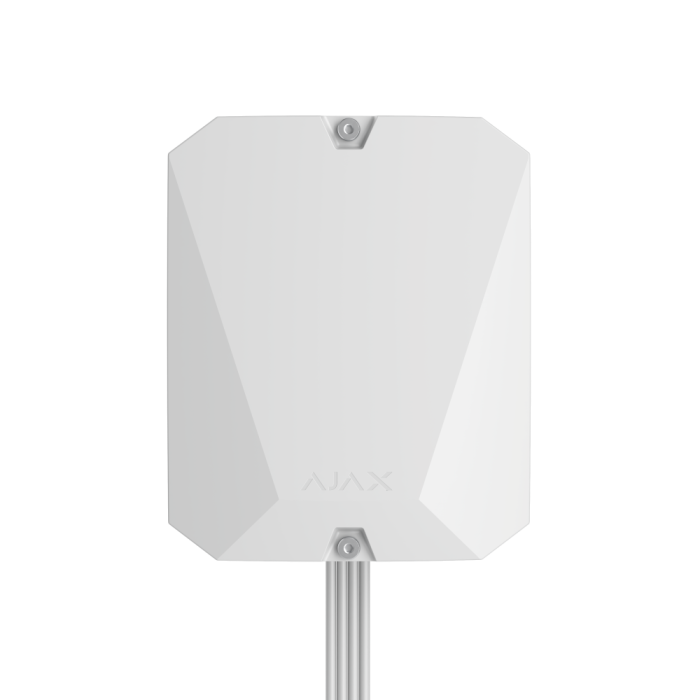

Ajax Superior Hub Hybrid (4G) (8PD/ECG) - White
Hybrid control panel supporting photo verification. Works with Fibra and Jeweller devices. Connectable via Ethernet and two SIM cards (2G/3G/LTE)
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
Superior Hub Hybrid
Hybrid control panel supporting photo verification. Works with Fibra and Jeweller devices. Connectable via Ethernet and two SIM cards.
Explore the differences
| Superior Hub Hybrid (2G) | Superior Hub Hybrid (4G) | Superior Hub Hybrid (4G) (without casing) |
| Shipped with a standard casing 2G support Built-in antennas for radio and cellular communication Built-in tamper button Built-in LED indicators Compliance with Grade 3 (EN 50131), PD 6662:2017, INCERT, NIST, and NFA2P (2 shields @) |
Shipped with a standard casing 2G, 3G, and 4G/LTE support Built-in antennas for radio and cellular communication with support for ExternalAntenna connection to overcome signal interference Built-in tamper button with support for external tamper board connection Built-in LED indicators Compliance with Grade 3 (EN 50131), PD 6662:2017, INCERT, NIST, SSF, and NFA2P (2 shields @) |
Shipped as a board designed for installation into a compatible Ajax Case 2G, 3G, and 4G/LTE support Built-in antennas for radio and cellular communication with support for ExternalAntenna connection to overcome signal interference Built-in tamper button with support for external tamper board connection Comes with an external LED board Compliance with Grade 3 (EN 50131), PD 6662:2017, and NIST |
The synergy of wired and wireless technologies
Superior Hub Hybrid is the first-generation hybrid control panel, supporting both Superior and Baseline devices. It combines wired and wireless technologies to provide comprehensive protection for small and medium-sized facilities. With informative notifications, instant photo verification, real-time control via apps, and automation scenarios, it delivers pure performance that elevates security to a new level.
Discover future-proof hardware
Superior Hub Hybrid comes either in its original casing or as a board for installation into Ajax Case in combination with other devices. In the original casing, the hub's current state is always visible via LED indication. If purchased without a casing, an external LED can be connected to the hub's board and mounted outside Ajax Case. This flexibility enables installers to efficiently combine the hub with other devices and arrange them neatly within a single enclosure.
All communicators built in
Superior Hub Hybrid comes fully equipped with all necessary communicators — no additional modules are needed. Built-in radio modules provide seamless connectivity between the hub and system devices. Alarms and events are sent to the monitoring station via Ethernet or cellular communication.
WIRED
Fibra communication technology allows installers to wire lines2 up to 2,000 m long. A single Superior Hub Hybrid can run up to 8 lines. Ajax modules that split, protect, and power the line can extend the connection distance by dozens of times.
Fibra lines are multifunctional and allow for connecting different types of devices at once. All alarms, events, and visual verification data are delivered over the same line without interference. Fibra also features robust encryption and device authentication to prevent sabotage, spoofing, and data theft.
WIRELESS
Superior Jeweller delivers Grade 3 level reliability with strong encryption and frequency hopping. It provides a radio communication range of up to 2,000 m in open space. The protocol transmits alarms, events, and readings to Ajax apps in just 0.15 seconds.
The protocol uses polling to display current device states, enabling real-time remote system control. Automatic power adjustment makes it energy efficient by avoiding the constant use of maximum transmitter power. This ensures long-lasting operation of wireless devices on pre-installed batteries.
WIRELESS
TurboWings is a wireless technology designed for delivering photo verification data over distances of up to 1,700 m in open space. It also functions as a fallback communication channel that transmits large data packets if the main connection is lost. Once it is restored, TurboWings automatically sends data backups from cameras and detectors to the hub.
WIRELESS
VoRF4 is a proprietary audio communication protocol that ensures seamless and secure data exchange between the hub and devices (e.g., voice modules). It enables reliable voice communication between the secured site and the monitoring station. Based on time division duplex technology, the protocol provides simultaneous two-way communication over distances of up to 1,700 m without requiring on-site activation.
Communication with Ajax server and apps
The hub can be connected to three internet providers simultaneously: one via Ethernet and two via cellular networks. Ethernet serves as the primary channel, while two SIM cards act as backups. If the primary connection is lost, the hub automatically switches to the SIM with the strongest signal — all within seconds.
Stable performance even in a blackout
Mains power supply
Superior Hub Hybrid features a built-in 110–240 V~ power supply that connects to the mains. Wired Ajax Superior devices are highly energy-efficient, consuming significantly less energy than comparable products from other manufacturers. This allows the entire system to operate without additional modules.
Backup battery
The hub can power 30 wired Ajax Superior devices for up to 60 hours while running on a 12 V⎓, 7 Ah backup battery. And when Battery power saver is enabled, the system can operate for 200 hours straight. Meanwhile, wireless Ajax Superior devices require no external power supply, as they are battery-operated.
More freedom in project design
Superior Hub Hybrid supports both Superior Jeweller and Fibra communication protocols, allowing for any combination of wired and wireless devices within a single system. Installers can create the most efficient setups using three wired topologies alongside wireless connectivity. This hybrid flexibility simplifies installation, reduces costs, and ensures reliable performance across sites of any size or complexity.
Wireless connection
Ajax wireless technologies provide up to 2,000 m of communication range in open space. Ajax range extenders can effectively double the wireless coverage and deliver a stable connection across large or complex facilities.
Beam topology
Beam (radial wiring) uses one Fibra line and provides up to 2,000 m of wired communication1 without line extenders. A single hub can support up to eight beams or a combination of beams and other topologies.
Ring topology
Ring uses two Fibra lines to form a hub–device–hub loop. If a line is broken, all devices remain operational — the system automatically splits into two beams. Ring offers up to 500 m of wired communication and can also be combined with other topologies on the same hub.
Tree topology
Tree connection helps create more complex system layouts by branching the line with Fibra accessories. Superior LineSplit Fibra divides one line into four branches and extends each by 2,000 m. Superior LineSupply Fibra provides additional power and extends the line as well.
Reliable cellular communication through any barrier
When the hub is installed in a basement or metal-enclosed space, ExternalAntenna helps overcome cellular signal interference. The 3-meter cable allows for optimal antenna placement for the strongest possible signal. If the cable is cut or damaged, both the security company and users receive an instant alert.
| Approval | Grade 3 (EN 50131), PD 6662:2017 |
|---|---|
| Category Type | Hubs |
| Colour | White |
| IP Rating | IP40 |
| System Type | Intruder |
| Clearance | No |
Write Your Own Review
Capacity
| Ajax devices |
up to 100 Wired and wireless devices in any proportion. 5 range extenders max. 10 sirens max. 50 wired keypads with a built-in buzzer max (with OS Malevich 2.30 and later versions). |
| Users |
up to 50 Any number of admin users within the limit. PRO accounts for installers and monitoring companies. Access management for regular users. |
| Automation scenarios |
up to 32 Alarm reactions. Scheduled actions. Security mode changing reactions. Temperature changing reactions. Humidity changing reactions. Reactions to changes in CO₂ concentration. Reactions to pressing the Button |
| Security groups |
up to 9 |
| Rooms |
up to 50 |
| Event log |
up to 1000 events Events are saved on the non-volatile onboard flash memory. |
Wired communication
| Fibra communication technology |
Proprietary wired communication technology. Fibra combines the reliability of wires with the freedom of radio connection. It features: Two-way communication. Advanced anti-sabotage. Instant notifications. Remote configuration via the Ajax apps. |
| Compatible wire |
4–core cable Bus connection. |
| Input |
8 Fibra lines Compatible with Fibra devices only. |
| Fibra line length |
up to 2,000 m When using the U/UTP cat.5 twisted pair. |
| Power supply of devices |
up to 14.4 W For all connected wired devices. |
| Output voltage range |
19–24 V⎓ |
| Topologies |
Star Ring In the line breakage event, the ring splits into two working segments, the devices continue to operate, and the system notifies a security company and users about the incident. |
| Devices polling interval |
from 12 to 300 s Adjusted by PRO or user with admin rights in the Ajax app. |
Wireless communication
| Jeweller communication technology |
Proprietary wireless communication technology to transmit alarms and events. Key features:
|
| Frequency bands |
866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz 915.85–926.5 MHz 921.0–922.0 MHz |
| Maximum effective radiated power (ERP) |
up to 20 mW Featured automatic power control to reduce power consumption and noise interference. |
| Radio signal modulation | GFSK |
| Radio signal range |
up to 2,000 m Between the hub and connected devices (in an open space). Maximum range depends on the connected device. |
| Polling interval |
from 12 to 300 s Adjusted by PRO or user with admin rights in the Ajax apps. |
| Encrypted communication |
All the data stored and transmitted are protected by block encryption with a dynamic key. |
| Frequency hopping |
To prevent radio interference and radio signal interception. |
| Wings communication technology |
Proprietary wireless communication technology to transmit photo verifications. Key features:
|
| Frequency bands |
866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz 915.85–926.5 MHz 921.0–922.0 MHz |
| Maximum effective radiated power (ERP) |
up to 20 mW Featured automatic power control to reduce power consumption and noise interference. |
| Radio signal range |
up to 1,700 m Between the hub and connected devices (in an open space). Maximum range depends on the connected device. |
| Encrypted communication |
All the data stored and transmitted are protected by block encryption with a dynamic key. |
| Frequency hopping |
To prevent radio interference and radio signal interception. |
Communication channels
| Ethernet |
1 × 8P8C socket Up to 100 Mbps. |
| Audio codec |
G711-ULAW, G711-ALAW, G726, G722 |
| Cellular | 2 × micro–SIM slot |
| Cellular bands |
2G (GSM900/DCS1800 (B3/B8)) 3G (WCDMA 850/900/2100 (B1/B5/B8)) 4G/LTE (FDD B1/B3/B5/B7/B8/B20) |
| Automatic switching between communication channels |
Switching between SIMs — up to 4 minutes. Switching between 4G, 3G, and 2G networks of one SIM — instantly. Switching between Ethernet and SIM — instantly. |
| Communication channels prioritization |
Ethernet Cellular connection Communication channels work in parallel to increase system reliability. Most of the data is transmitted via Ethernet. |
| Alarm Transmission System Categories |
SP2, SP5, DP3 |
| Control panel operation method |
Pass-through |
| Signaling security |
S2 Substitution security. |
| Information security |
I2 |
Notifications
| Supported notification types |
Push SMS Calls |
| Event types |
Alarms Malfunctions Events Security mode changing The notification types are configured individually for each user. Notifications could be customized for A–F schemes according to EN 50131 requirements. |
Photo verification
| Photo verification types |
Photo by alarm Photo by scenario Photo on demand Photo by schedule The Photo by Schedule feature is available for hubs with firmware version OS Malevich 2.19 or higher. |
| Photo delivery time |
up to 9 s By default. |
| Photo resolution |
up to 640 × 480 pixels Depends on the detector. |
| Number of photos in a series: |
from 1 to 5 pictures |
Monitoring
| Supported protocols |
SurGard (Contact ID) SIA (DC-09) Other proprietary protocols |
| Event types |
System alarms and events Photo verifications Panic button coordinates |
Power supply
| Main power supply type |
Type A. |
| Device operating AC voltage range |
100–240 V~, 50/60 Hz From the main power supply. Up to 10 W of mains power consumption. |
| Device operating DC voltage range |
10.5–15 V⎓ From the backup battery (not included). Hub has space in the enclosure and rails for installing batteries with a capacity of 4, 7, or 9Ah. |
| Autonomous operation |
up to 60 hours Superior Hub Hybrid with a 7 Ah backup battery can power a system of 30 wired devices for 60 hours. Wireless devices operate on batteries and do not require additional power supply. The Battery Power Saver feature allows extending the backup battery life. |
| Low battery voltage |
11.7 V= |
| Low battery recovery voltage |
12.9 V= |
| End of life battery voltage |
11 V= Superior Hub Hybrid is switched off. |
| Maximum output peak-to-peak ripple battery voltage |
220 mV= |
| Minimum backup battery energy level in the charged state |
100% |
Current consumption
| Maximum rated output |
0.53 A |
| Maximum at nominal voltage |
200 mA |
| Quiescent at nominal voltage |
130 mA |
| Average* |
up to 93 mA When GSM and Ethernet are enabled. up to 72 mA When Ethernet is disabled. * From the backup battery after the loss of the main power supply. |
Casing
| Dimensions |
197 × 240 × 100 mm |
| Weight of the white device |
837 g |
| Weight of the black device |
765 g |
| Operating temperature range |
from −10 °C to +40 °C |
| Operating humidity |
up to 75% |
| Protection class |
IP30, IK06 |
Complete Set
| Contains |
Superior Hub Hybrid (4G) Power cable Screw terminal block Adapter (only for INCERT compliance) Battery connection cable Ethernet cable Casing Installation kit Eight 120 Ω termination resistors Quick start guide |
