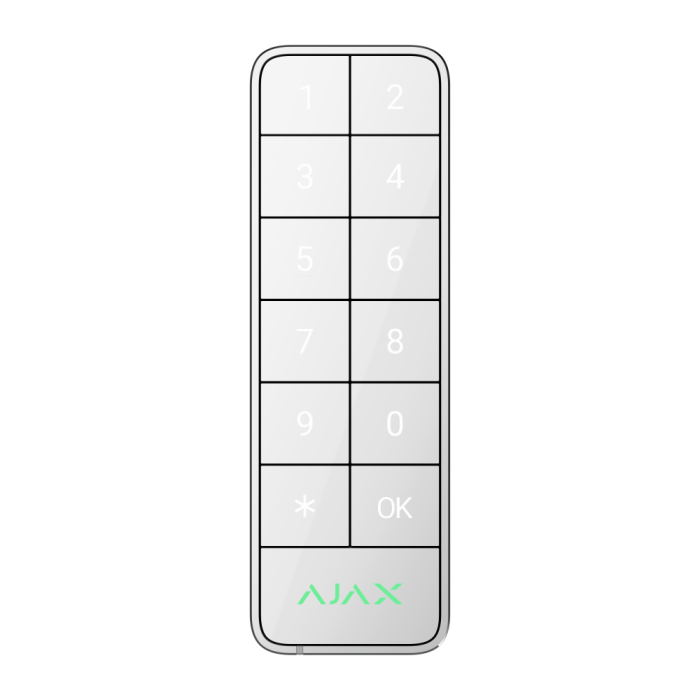

Superior KeyPad Outdoor Fibra

Wired keypad supporting authentication via Pass, Tag, smartphones, and codes. For outdoor and indoor use.

Control your space, rain or shine

Meet the all-weather key to security and automation. Control security modes, activate Night Mode, manage specific groups, and run scenarios with one keypad. Use classic passcodes or go contactless. The ultra-narrow enclosure fits anywhere and still has big, glove-friendly mechanical buttons with sleek feedback. The durable enclosure is built to withstand any operating conditions and maintain full functionality even after being hit or physically damaged. Uncompromisingly secure keypad that gives intruders a hard time to hack it open.

Key Features

• Support for contactless access devices - Pass cards and Tag key fobs featuring DESFire technology
• Contactless control via smartphone - using Bluetooth Low Energy (BLE)
• Two operating modes:

  • Security
  • Automation
• easy mode switching with a long press of the OK button
• Bypass mode - the keypad starts an entry delay to confirm a security mode change
• Duress codes - when a user is forced to disarm a system
• Code guessing protection
• Four types of access codes:

  • Main keypad code
  • Personal code
  • Codes for unregistered users
  • RRU codes
• Big mechanical buttons - sleek feedback even if a user wearing gloves or mittens
• Built-in panic button
• Tamper alarm
• IK08 protection against physical impacts
• IP66 protection against dust, water, and harsh temperatures
• 60 dB buzzer for sound notifications
• Up to 2,000m of wire communication
• Fibra wired connection
• Up to 0.6W - Ultra low power consumption
• informative push notifications
• Remote control and configuration

Three missions, one device

Security management
Easily manage the security of an entire site, separate groups, or activate Night Mode using just one device. It additionally features a Function button, which can be configured as a panic button or to mute fire alarms. KeyPad Outdoor can also operate in bypass mode: it starts an entry delay for users to confirm the security mode change via the main keypad, for example, with another Ajax keypad installed inside the facility.

• Security management of an entire site or separate groups
• Night Mode activation
• Bypass mode to start an entry delay to confirm a security mode change

Automation device control
The keypad can control one or multiple automation devices, such as switches, relays, sockets, outlets, and shut-off valves. For example, a user can open garage doors and turn on outdoor lights when arriving home (or close the garage and turn the lights off when leaving). Just one press of an OK button will set a scenario in motion. The buttons’ backlight indicates the automation device state2: red for off and green for on.

• Control over one or multiple automation devices with OK button
• Indication of an automation device state with backlight

Sound and LED indication
The glove-friendly keypad has backlit digits that do not fade. The built-in buzzer notifies you of alarms, doors being opened (Chime), arming/disarming, and entry/exit delays. The LED brightness and buzzer volume can be adjusted via Ajax apps.

• Sound notifications of alarms and events
• Mechanical buttons with backlit digits that are not fading off
• Adjustable sound volume and LED brightness

Fast and secure authentication

There are three easy ways to control the keypad, giving users the flexibility to choose what suits them best. Ajax apps display all events, including user activity and authentication details.

Pass card and Tag key fob
With Ajax Pass or Tag, the system can be armed or disarmed with one move of a hand: just present the access device to the keypad reader. Each use of a contactless access device is recorded in the Ajax app event feed. The admin can revoke, restrict, or temporarily suspend the access devices at any time. Administrators can also modify users’ rights by granting or limiting access to specific groups.

Smartphone
Get granted access rights by the system admin and pre-authorize your smartphone via Ajax apps for contactless control of the keypad using Bluetooth Low Energy (BLE).

Passcode
The keypad supports several types of access passcodes:

• Keypad code (one per keypad): a general code set up for the keypad.
• Personal codes: individual access codes configured personally by each system user in their Ajax app.
• Codes for unregistered users: codes created by an admin for cleaning personnel or real estate agents who don't have Ajax accounts. They use the keypad but have no access to the system
• info.
• RRU code: the access code configured by an admin for the rapid response units (RRU) to access the premises after receiving an alarm when the owner is not home. The code is activated only after an alarm and is valid for a specified period.

Contactless access devices

Pass and Tag are equipped with original DESFire® chips and share the same functionality but in a different shape of enclosures. One Tag or Pass can control up to 13 security systems. Access devices are sold separately in batches of 3, 10, or 100 pieces.

Remote access control

Change access rights and codes in real time via the Ajax apps. Lost access devices and compromised codes can be remotely altered within minutes. An installer doesn’t need to visit the facility.

• Remote code management
• Remote user access rights management
• Remote blocking of cards, key fobs, and smartphones

Access for unregistered users

With a simple assignment in the hub settings, a PRO can create a temporary access code for office employees, cleaning company staff, or other verified visitors.

Ready to assist in emergencies

The keypad has a panic button that triggers an alarm when pressed. The panic button can be configured to alert users about the alarm, activate sirens, or even run an automation scenario. If the user is forced to let in intruders, they can use a duress code to fake disarm: the keypad simulates regular disarming and immediately sends an alarm to the security company, notifying them about the emergency. Meanwhile, Ajax apps and sirens installed at the facility remain silent to prevent revealing a user.

Unique wired technology

Fibra is proprietary Ajax technology for secure two-way communication between devices and a hub or module that extends the Fibra line. Fibra features encryption and device authentication to prevent sabotage, spoofing, and data theft. The Fibra line supports all types of devices, including sirens, keypads, and detectors with photo verification.

Energy efficiency as a priority

Fibra communication requires minimum power consumption: the keypad consumes only up to 0.6 W at its peak. Fibra also follows the TDMA principle. Each device has a short time frame to exchange data with a hub, and its communication module is inactive the rest of the time. This significantly reduces power consumption and helps avoid interferences even when multiple devices communicate simultaneously.

Advanced system supervision

The keypad is a part of the Ajax ecosystem, which makes it a genuine IoT device. Each element of the ecosystem is constantly supervised. The keypad exchanges data with a hub via Fibra protocol. The hub has two-way communication with Ajax Cloud which provides real-time information to Ajax apps. The Ajax system supervises device state every minute. If a keypad has an issue, you will receive a notification.

PRO is king

The myth about wired systems being difficult to install is busted. Ajax minimized an expensive, long, and dusty experience for PROs by developing an ultimate set of tools to make the process easy and flexible, from project design to client support and system maintenance. There is no need to disassemble the device for installation. Intuitive Ajax apps help quickly make the device a part of the system, and each device can be reconfigured remotely at any moment. No programming required — everything is available out of the box.
