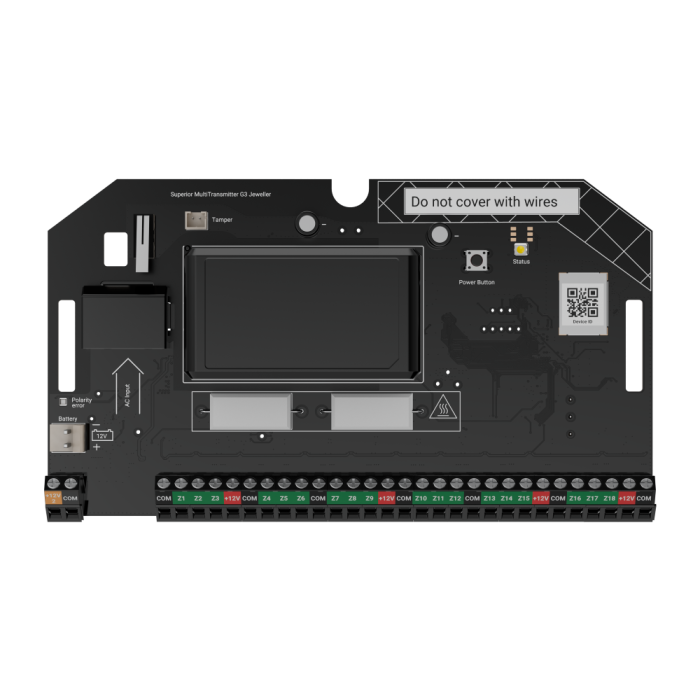

Ajax Superior MultiTransmitter G3 Jeweller (without casing) (8EU) plug type G
Wireless module to integrate up to 18 third-party devices into an Ajax system
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
Ajax Superior MultiTransmitter G3 Jeweller
Wireless module to integrate up to 18 third-party devices into an Ajax system
Pushing the boundaries of high security
Superior MultiTransmitter G3 Jeweller adds flexibility to Grade 3 installations. On the one hand, the integration module can modernize an existing security setup. It brings all the benefits of the Ajax ecosystem — centralized management in an Ajax app, informative notifications, integration with video surveillance and fire safety, and automation scenarios — without altering the existing layout, wiring, or devices. On the other hand, the module can expand an Ajax system with almost any security device outside the Ajax portfolio. In both cases, the device helps build a complete Grade 3 security solution tailored to projects of any complexity.
Built to stand out
| Seamless integration of up to 18 third-party wired devices into the Ajax ecosystem | Broad compatibility with devices of various connection types and operating modes |
| Built-in power supply lines for intrusion devices and fire detectors | Effortless integration via Ajax apps with automatic EOL scanning and customizable event types |
One device. Two missions.
Turn outdated into innovative
- In-app EOL resistor scanning for time-efficient installation of third-party devices without enclosure disassembly
- Hassle-free upgrade of an existing system with no setup changes
- Bringing full Ajax functionality and benefits to third-party devices
Empower Ajax systems to do more
- Integration of devices outside the Ajax portfolio
- Over ten selectable event types for connected devices
- Turning existing equipment into a native part of the Ajax ecosystem
Maximum compatibility with third-party devices
- Support for NC, No, EOL, 2EOL and 3EOL connection types
- Pulse and bistable operating modes
- KeyArm Zone for system arming/disarming with third-party devices
- Automation scenarios trigged by connected devices
- Transmission of alarm and sabotage events form connected devices
- Support for resistors from 1k to 30k
- Four 12 V= power supply outputs for intrusion devices and one for the fire detectors
Informative notifications and in-app control
- Instant alarm and event delivery to users and monitoring stations
- Complete situational awareness of on-site activity
- Over ten selectable event types for connected devices
- Integration into the Ajax ecosystem within a single app
- Remote configuration without third-party device disassembly2
- Setup and adjustment of automation scenarios for connected devices in Ajax apps
Enhanced wireless technologies
Ajax systems use secure two-way communication powered by proprietary radio protocols. Superior Jeweller delivers Grade 3 level reliability with strong encryption, advanced frequency hopping, and outstanding energy efficiency. Wings complements it by ensuring devices always have the latest firmware through regular updates.
Long-lasting performance
- Support for rechargeable backup batteries with a capacity of up to 7 Ah
- Up to 24 hours of operation on a 12 V⎓ backup power
- Four 12 V⎓ power supply outputs for connected devices
- Regular polling to display the backup battery state
- Main power supply: 100–240 V, 50/60 Hz
- One 12 V⎓ power supply output for fire detectors
Hassle-free installation and setup
| Installation | Set-up | Configuration | Monitoring |
| Versatile setup options: in the original casing or as a board for installing in an Ajax casing1 All necessary fasteners included in the complete set Effortless cable management and battery placement Up to 400 m of wired connection with connected devices |
Adding the integration module to the system via QR code Adding and configuring third-party devices via Ajax apps In-app EOL resistor scanning for time-efficient installation In-app configuration and adjustment of automation scenarios |
Configuration of the integration module and connected devices remotely or on-site | Instant notifications of alarms and events for the integration module and connected devices Real-time notifications when maintenance for the integration module is required |
| Approval | Grade 3 (EN 50131), PD 6662:2017 |
|---|---|
| Category Type | Integration modules |
| System Type | Intruder |
| Clearance | No |
Write Your Own Review
Communication
| Superior Jeweller data transfer protocol |
Superior Jeweller data transfer protocol Key features:
|
| Frequency bands |
865.0–868.0 MHz 868.0–868.6 MHz 868.7–869.2 MHz 869.4–869.65 MHz |
| Maximum effective radiated power (ERP) |
up to 25 mW |
| Radio signal modulation |
GFSK |
| Radio communication range |
up to 3,500 m Between the device and a hub (or a range extender) in open space. The maximum range depends on the hub model. |
| Encrypted communication |
All stored and transmitted data is protected with advanced encryption, ensuring both confidentiality and integrity. |
| Frequency hopping |
To prevent radio interference and jamming. |
| Wings communication technology |
Proprietary wireless communication technology for uploading firmware updates.
|
| Frequency bands |
865.0–868.0 MHz 868.0–868.6 MHz 868.7–869.2 MHz 869.4–869.65 MHz |
| Radio communication range |
up to 3,000 m Between the device and a hub (or a range extender) in an open space. The maximum range depends on the hub model. |
| Encrypted communication |
All stored and transmitted data is protected with advanced encryption, ensuring both confidentiality and integrity. |
| Frequency hopping |
To prevent radio interference and jamming. |
Wired device connection
| Number of zones | 18 wired zones Multiple devices can be connected to one zone. The number of connected devices depends on their power consumption. |
| Cable length | up to 400 m When a copper signal cable with a 0.22 mm2 cross-sectional area of the conductor is used. |
| Type of connection | NC, NO, EOL, 2EOL, 3EOL With EOL resistance from 1 kΩ to 30 kΩ in increments of 100 Ω. |
| EOL resistor scanning | Allows automatic measurement of EOL resistance. |
| Operating mode of connected sensors |
|
| Event types | configurable event types for wired device alarms Adjusted by a PRO or a user with admin rights in an Ajax app. |
Sabotage protection
| Tamper alarm | The system sends notifications about attempts to open the integration module casing lid or detach the casing from the surface. |
| Protection against spoofing |
Ensures integration module authentication when it communicates with a hub. |
| Communication loss detection |
after 36 seconds of no signal Detection time depends on Jeweller or Jeweller/Fibra settings. |
| Instant detection of wired connection loss, short circuits, and malfunctions |
when the 2EOL/3EOL connection is used depends on the connection type. |
| Instant detection of short circuits at power outputs |
After detection, the system stops supplying power and sends a notification to the user. |
Power supply
| Main |
100–240 V~ |
| Backup |
12 V⎓, up to 7 Ah capacity, with a full charge cycle of up to 24 hours |
| Type | type A Used inside protected premises. |
| Operating AC voltage range |
100–240 V~, 50/60 Hz Main power supply. |
| Operating DC voltage range |
10.5–15 V⎓ Backup power supply. |
Enclosure
| Dimensions | 178 × 99 × 38 mm |
| Weight | 220 g |
| Operating temperature range | from -10 °C to +40 °C |
| Operating humidity | up to 75% |
Colour
| Available colours | N/A |
Complete Set
| Contains | Superior MultiTransmitter G3 Jeweller Power cable Battery connection cable Casing Installation kit Quick start guide |
Warranty
| Warranty Period | 24 months |
