Ajax Superior MultiTransmitter IO (4X4) Fibra

Wired module with 4 inputs and 4 outputs. Designed to integrate third-party devices into an Ajax system.

Security and automation powered by Ajax

Superior MultiTransmitter IO (4X4) Fibra makes almost any wired security device a part of the Ajax ecosystem. Breathe new life into outdated equipment and connect devices outside the Ajax portfolio to create a smart security system for projects of any complexity. Four inputs receive alarms from connected detectors, while four outputs control third-party devices such as bolt locks, blocking elements, and sirens. It makes the module an ideal solution for setting up robust door protection on the unavoidability principle (German: Zwangsläufigkeit). Bring the unmatched Ajax experience to third-party products with in-app security control, automation scenarios, and informative notifications.

Key features

• 4 inputs
• 4 outputs (2 logical and 2 relay outputs)
• All connexion types supported- NO, NC, EOL, 2EOL, 3EOL
• Easy integration of door locking systems
• Two operating modes of inputs and outputs
• Numerous event types

  • Intrusion
  • Panic button
  • Fire
• Time-efficient installation
• KeyArm Zone and roller shutter modes
• 12 V=, up to 500 mA power supply for connected devices
• Instant detection of wired connection loss for EOL devices
• Up to 7.5W power consumption from the Fibra line
• Up to 2,000m of communication with an Ajax Hub
• Up to 400m of wired connection between devices and the module
• Informative push notifications

Discover future-proof hardware

• Four input zones
• Two relay outputs
• Two logical outputs
• Three power supply outputs

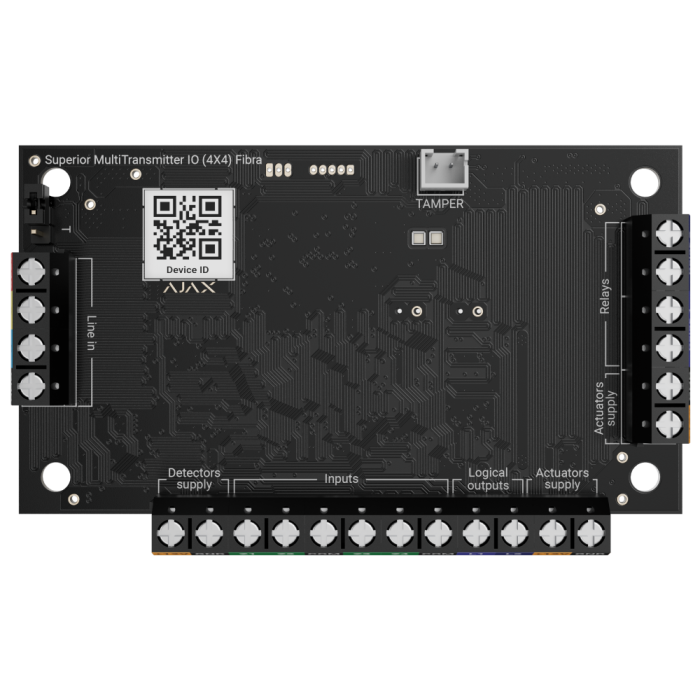

• Connector for an Ajax Case tamper board
• Terminal for connecting Superior MultiTransmitter Fibra to the hub
• LED indicator

Easy to mount into Case

Superior MultiTransmitter IO (4X4) Fibra is installed into a compatible Case. Ajax casings have an optimal arrangement of wire channels, special holders for the module, and a tamper.

Several Case versions are available. Choose a smaller one for the integration module only or larger options to accommodate multiple devices in a single casing. The variety of Case sizes allows installers to find the perfect fit for their project.

Turn outdated into innovative

With Ajax integration modules, there is no need to spend a fortune on replacing an old alarm setup. Superior MultiTransmitter IO (4X4) Fibra helps build a modern security and automation system based on outdated yet operative equipment.

With four inputs and four outputs, this integration module is a perfect solution for small- and medium-scale setups. Say a small store already has a few third-party detectors and a keypad. Integrate them into an Ajax system along with door locks, sirens, and strobe lights to arrange high-profile intrusion protection. A single integration module makes the existing setup work hand in hand with the latest Ajax devices, take part in automation scenarios, and send detailed notifications to Ajax apps.

Less hassle with automated security

Connect third-party devices to Superior MultiTransmitter IO (4X4) Fibra through its outputs to make them part of a safe and smart automation system. With two relay outputs with potential-free (dry) contacts, the module turns sirens, strobe lights, and other electrical devices on and off. Two logical outputs are designed to integrate door protection, such as bolt locks and blocking elements, which is suitable for building a secure door-locking system on the unavoidability principle.

Ajax apps offer outstanding setup and management flexibility. Installers can specify settings for each output and choose between the pulse and bistable operating modes. Connected devices can be controlled via an Ajax app or can operate by automation scenarios. To enhance security and minimize human error, installers can disable in-app control.

Unfettered potential of an Ajax system

Superior MultiTransmitter IO (4X4) Fibra expands the capabilities of an Ajax system even to the most complex and niche projects. The module’s inputs and outputs allow installers to integrate almost any device outside the Ajax portfolio, including infrared or microwave motion detectors, household gas sensors, thermostats, float sensors, door lockers, strobe lights, keypads with biometric authentication, and roller shutters. Connect them to an Ajax hub via the integration module, set an event type for each device, and get notified of any threat or activity in an Ajax app. Devices with a custom event type do not trigger alarms but send an event notification and can activate non-alarm automation scenarios.

Always in the loop with informative notifications

Third-party devices connected via Superior MultiTransmitter IO (4X4) Fibra notify security companies and users of events in the system on par with Ajax products. Specify the connected device’s name and security group and assign it a virtual room. Choose from over 10 available event types, such as intrusion, fire, or auxiliary alarm. Then, once an alarm is triggered, the CMS and users receive detailed notifications indicating what occurred and where. Superior MultiTransmitter IO (4X4) Fibra also alerts users about malfunctions such as communication loss.

Maximum compatibility with third-party devices

Superior MultiTransmitter IO (4X4) Fibra does not limit the selection of wired devices that can be added to an Ajax system. The integration module supports all the most common connection types, including NC, NO, EOL, 2EOL, and 3EOL with resistance from 1 to 15 kΩ. Installers can connect both pulse and bistable devices, set the default state of each contact as normally open or normally closed, and assign one of many event types. Moreover, KeyArm and roller shutter modes are also available. The entire configuration process takes just a few taps in an Ajax app.

Unique wired technology

Fibra is proprietary Ajax technology for secure two-way communication between devices and a hub or module that extends the Fibra line. Fibra features encryption and device authentication to prevent sabotage, spoofing, and data theft. The Fibra line supports all types of devices, including sirens, keypads, and detectors with photo verification.

Energy efficiency as a priority

Superior MultiTransmitter IO (4X4) Fibra is powered by the Fibra line and supplies energy to connected devices. The module provides 12 V⎓ power with a total output of up to 500 mA for integrated third-party equipment. The complete setup of the integration module and connected devices consumes up to 7.5 W from the line.

Superior MultiTransmitter IO (4X4) Fibra uses Fibra communication following the TDMA principle. The device exchanges data with the hub in a short time frame. The rest of the time, its communication module remains inactive. This significantly reduces power consumption and minimizes interference even when multiple devices communicate simultaneously.

System supervision

Superior MultiTransmitter IO (4X4) Fibra performs automatic self-diagnosis and reports its status to the hub. Essential parameters of the integration module, such as tamper state, communication, and power supply, are continuously monitored. The Ajax Cloud server controls communication between the hub and Ajax apps, ensuring instant notifications for the CMS, security companies, and users. In the event of a malfunction or communication failure, an engineer is promptly informed to provide necessary services.

Complex sabotage protection

Tamper alarm
The Superior MultiTransmitter IO (4X4) Fibra board has a connector for an Ajax Case tamper board. It detects any attempt to open the casing where the integration module is installed. In case of this sabotage attempt, security companies and users receive a tamper alarm in Ajax apps. If the system has sirens, they deter intruders and alert to the threat with a sound signal.

Protection against Fibra line short circuits
The Fibra protocol and a special digital algorithm provide reliable protection against undetected short-circuiting of the module or the Fibra line. If someone tries to short-circuit it, the system immediately notifies both the CMS and users of the incident.

Data encryption between the hub and the module
All data the system stores and transmits is protected by block encryption featuring a dynamic key. Encryption makes it extremely difficult to connect to the module with the intention of sabotage.

Protection against module spoofing
During each communication session, the hub authenticates Superior MultiTransmitter IO (4X4) Fibra by checking the module’s unique parameters. If any parameter fails the check, the hub ignores the device commands.

Regular polling of the integration module
Superior MultiTransmitter IO (4X4) Fibra regularly exchanges data with the hub. The system controls the module state and reports any malfunction and connection loss.

Informative notifications
An Ajax system instantly delivers informative notifications of alarms and events. Security companies and users receive precise details about an incident, including time, location, and the triggered device.

Sabotage protection for connected devices
Superior MultiTransmitter IO (4X4) Fibra supports all connection types from NC/NO to 3EOL and identifies all events of connected devices. Therefore, users and the CMS are immediately notified of tamper alarms, masking attempts, or any other malfunction or sabotage related to connected third-party devices.

Protection of integrated devices’ wired connection
Thanks to EOL connection support, Superior MultiTransmitter IO (4X4) Fibra instantly detects cable breakage or short circuits between the module’s alarm zones and the connected device. Additionally, the integration module detects short circuits in the power supply line of third-party devices, ensuring that every sabotage attempt is immediately noticed.

PRO is king

Installing a wired system has always been a challenge. Ajax offers an ultimate set of tools to make the process easy and flexible, from project design to client support and system maintenance. When connecting wired devices via Superior MultiTransmitter IO (4X4) Fibra, there is no need to measure each device’s resistance manually. It is done automatically, which is more time-efficient and accurate. Intuitive Ajax apps help quickly make the integration module and third-party equipment a part of the system, and each device can be reconfigured remotely at any moment. No programming is required — everything is available out of the box.
