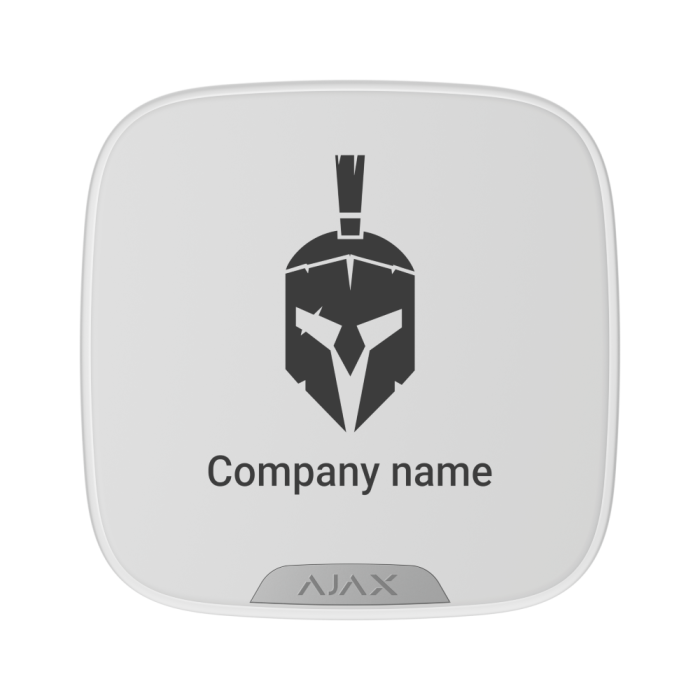

Ajax Superior StreetSiren DoubleDeck Jeweller
Wireless siren with a clip lock for a branded faceplate. For outdoor and indoor use.
Alerts on time. Advertising all the time.
Superior StreetSiren DoubleDeck Jeweller is designed to inform users and monitoring companies about alarms while also advertising security services. It is equipped with an LED frame and a piezoelectric alarm indicator that produces sound volumes of up to 113 dB. The siren alerts users to entry/exit delays and system security state and can even notify them when a door opens. The siren is flexible in its settings, making it suitable for both quiet gated communities and loud industrial areas. With its easy-to-install Brandplate faceplate, monitoring or installation companies can display their logo, name, phone number, or website. This serves as additional advertising visible to passersby and neighbors.
Built to stand out
- Brandplate faceplate to enhance brand visibility
- Long-range communication and advanced sabotage protection
- LED and sound indication of alarms, security mode changes, delays, and other events
- Installation and setup in a few minutes
Boost your company visibility with Brandplate
The Brandplate faceplate allows monitoring companies to display their branding and contact information, promoting their services to passersby. Available in black or white, the panel is compatible with both wired and wireless StreetSiren DoubleDeck devices.
Faceplates are sold separately in batches of 10 units. When ordering four batches or more, one design is printed on all panels free of charge. To place an order, contact your Firesense account manager.
One device, five missions
- An audible alarm to deter intruders and attract attention
- Security state indication to inform users when the system is armed/disarmed
- LED and sound indication of entry/exit delays
- Chime feature to alert users when opening detectors are triggered
- After-alarm LED indication to inform users of any alarms in the system
Adjustable alarms
- Adjustable signal volume for alarms and others events
- Group mode for responding to alarms only within the assigned group
- Adjustable alarm duration - from 3s to 3 mins
- Bright LED frame
- Flexible LED indication
Weather resistance
Superior StreetSiren DoubleDeck Jeweller is resistant to heat, cold, and rapid temperature changes. Its hermetically sealed enclosure has been rated IP54 level of ingress protection. The outdoor siren is ready to withstand exposure to rain or snowfall and can be installed on exterior walls without a canopy.
- Withstands heat up to +60 °C
- Withstands cold down to –25 °C
- Waterproof and dust-resistant enclosure IP54-rated
Enhanced wireless technologies
Ajax systems use secure two-way communication powered by proprietary radio protocols. Superior Jeweller delivers Grade 3 level reliability with strong encryption, advanced frequency hopping, and outstanding energy efficiency. Wings complements it by ensuring devices always have the latest firmware through regular updates.
- Up to 3,500 m of communication range in open space4
- Two-way radio communication with enhanced encryption
- Instant alarm and malfunction notifications
- Over-the-air updates
Long-lasting performance
- Up to five years of autonomous operation
- High-performance batteries from proven manufacturers
- Pre-installation battery testing for reliability
- Option to connect an external 12 V⎓ power supply
- Minimal impact of threshold temperatures on battery life
- Early low battery notifications
- Easy battery replacement in minutes
Sabotage resistance
- Accelerometer to detect dismounting
- Jamming detection by the siren
- Holding screw for better siren fixation on the mounting panel
- Enhanced frequency hopping for radio interference and jamming protection
- Device authentication against spoofing
- Communication loss detection5 within 36 seconds
- IP54-protected enclosure
- Enhanced signal attenuation test
- Regular polling to control the device states
- Enhanced data encryption
- Tamper button to detect enclosure opening
Hassle-free installation and setup
| Installation | Setup | Configuration | Monitoring |
| Quick installation without enclosure disassembly Fast Brandplate mounting Ready to operate straight out of the box Up to five years of operation on pre-installed batteries Option to connect an external 12 V⎓ power supply All necessary fasteners included in the complete set |
Adding to the system via QR code Setup in minutes via an Ajax app — no programming required |
Configuration and testing remotely or on-site Advanced notification settings |
Instant notifications of alarms and events Real-time notifications when maintenance is required Immediate notifications of jamming detection |
| Approval | Grade 2 (EN 50131), PD 6662:2017 |
|---|---|
| Category Type | Sirens |
| Colour | White |
| IP Rating | IP54 |
| System Type | Intruder |
| Clearance | No |
Communication
| Superior Jeweller data transfer protocol |
Proprietary wireless protocol for transmitting commands, alarms, and events. An upgraded version of the Jeweller radio protocol for Ajax Superior devices, ensuring compliance with Grade 3 (EN 50131). Superior Jeweller data transfer protocol is supported when the siren with firmware version 10.66.4.1 or later is added to a hub supporting the Superior Jeweller protocol and running OS Malevich 2.30 or later. All the other sirens work via the Jeweller communication protocol. Key features: Two-way communication. Advanced anti-sabotage. Enhanced block encryption with a dynamic key. Instant notifications. Remote control and configuration in Ajax apps. |
| Frequency bands |
868.0 – 868.6 MHz |
| Maximum effective radiated power (ERP) |
up to 25 mW Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation |
GFSK |
| Radio communication range |
up to 3,500 m Between the device and control and indicating equipment (CIE) or a range extender in an open space. |
| Encrypted communication |
All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. |
| Wings communication technology |
Wings communication technology Proprietary wireless communication technology to transmit photo verifications. Key features: Two-way communication. Advanced anti-sabotage. Block encryption featuring a dynamic key. Data packages reload in case of transmission errors. Photo delivery check. |
| Frequency bands |
868.0 – 868.6 MHz |
| Radio communication range |
up to 2,000 m Between the device and a hub (or a range extender) in an open space. |
| Encrypted communication |
All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and jamming. |
Key features
| Alarm type |
acoustic and LED Buzzer and LED frame. |
| Type of warning device |
type X External, self-powered, and remote power source compliant with EN 50131-6. |
| Alarm volume |
from 85 to 113 dB at a distance of 1 m Adjusted by PRO or user with admin rights in the Ajax app. |
| Alarm duration |
from 3 s to 3 min Adjusted by PRO or user with admin rights in the Ajax app. |
| Siren sound frequency |
1.60−4.5 kHz |
| Events indication |
Alarms. Delays when entering/leaving. Security mode. Security mode changing. After-alarm indication. |
| Chime |
The siren makes a special sound to notify that the opening detectors are triggered when the system is disarmed. |
| Jamming detection |
The siren detects jamming and alarms about it. |
| Remote firmware update |
An admin or a PRO with the rights to configure the system can run the update in Ajax apps. Available when the siren with firmware version 10.66.4.1 or later is added to a hub running OS Malevich 2.30 or later. |
Customized branded faceplate
| Brandplate | Security service providers can print their logo and contact information on the siren’s front panel. **Brandplate is sold separately from street sirens. |
Sabotage protection
| Tamper alarm |
Notifications on attempts to open the siren’s enclosure. |
| Protection against spoofing |
device authentication |
| Connection loss detection |
after 36 s Detection time depends on Jeweller settings. |
Main supply
| Battery |
4 × CR123A Pre-installed. |
| Type |
Type C |
| Calculated battery life |
up to 5 years |
Optional power supply
| Remote power supply’s operating voltage |
6−20 V⎓ |
| Remote power supply’s nominal voltage |
12 V⎓ |
Enclosure
| Detector Dimensions |
200 x 200 x 55mm |
| Weight |
517 g |
| Operating temperature range | from -25 °C to +60 °C |
| Operating humidity |
up to 95% |
| Protection class |
IP54 |
Complete set
| Contains | Superior StreetSiren DoubleDeck Jeweller SmartBracket mounting panel Installation kit Quick start guide |
