Ajax Superior StreetSiren Plus Fibra

Wired siren with advanced sabotage protection and an extended list of compliance certificates. For outdoor and indoor use.

Tiny gear to boost regular into Ajax

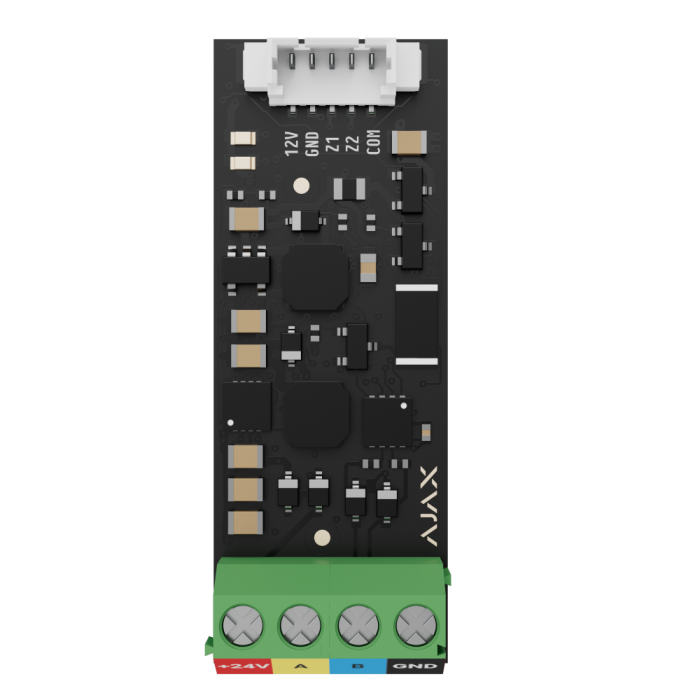

Superior Transmitter Fibra serves two primary purposes: first, to connect functional third-party devices to the Ajax system, enhancing their capabilities; and second, to сonnect specific devices not yet included in the Ajax portfolio. Superior Transmitter Fibra can be easily installed with any third-party device. The module supports all connection types, including 3EOL, provides numerous event types for the connected device, can be remotely configured, and regularly reports its state to the hub.

Key features

• Any connection type with NO, NC, EOL, 2EOL or 3EOL connection
• Instant detection of wired device connection loss
• Installation inside the device enclosure
• KeyArm feature
• Integration of roll shutter motion detector
• Numerous event types for connected devices

  • Intrusion
  • Panic button
  • Fire
• 12 V=, 50 mA power supply for the integrated device
• Fast connection to wired devices by measurement of EOL resistors
• Up to 2,000 m of communication between Hub
• Convenient wire connection due to accessory 5-pin cable
• Remote control and configuration
• Informative in-app notifications

Turns outdated into innovative

After integrating a third-party device via Transmitter, this device can be managed and configured remotely. PRO’s will get remote settings management and scenario setup; end-users will receive push notifications and have in-app security management. This will breathe new life into the devices already installed at the facility or enhance the functionality of new third-party devices that need integration into the Ajax system. The best Ajax user experience will be extended to third-party devices in both directions.

Ajax experience for third-party devices

Roller shutter motion detectors, IR detectors, household gas sensors, thermostats, float sensors, and other devices are ready to expand the Ajax areas of use. Connect them to a hub via Transmitter and manage the combined solution in the Ajax app.

Moreover, alarms or other events from connected devices can be used as automation triggers. Nothing stops to set up a custom automation scenario. Automation scenarios are intended to enhance security or to automate a routine. Their triggering can be alarms or service events — an ideal solution for security and automation.

Versatile security management with KeyArm

A third-party keypad or others access control devices can be connected to the Ajax system. This opens up almost unlimited integration, renovation, and system management possibilities. Thus, the user will be able to control the security of the entire facility, night mode, or even individual groups using a third-party device.

An EOL connection can be used to lock the security management when the tamper of a third-party device is triggered. Only a verified user with the appropriate rights can unlock. This will make it almost impossible to sabotage the system.

Compatible with any third-party device

Superior Transmitter Fibra can handle almost any third-party device. Due to its small size, the module can fit into the enclosure of most devices. Transmitter supports NC, NO, EOL, 2EOL, and 3EOL connection types. It operates with pulse and bistable devices. Also it has the function of choosing a normal contact state and supports numerous event types for the connected device. The module has two inputs (Z1 and Z2), which allows connecting one device by the AATT scheme or two devices simultaneously. Transmitter also can provide a 12 V⎓ power supply for the connected device, which is a standard for most solutions on the market.

Security via smartphone and PC

With Transmitter, system users get security control via app, data-rich notifications, and automation scenarios. An installer can set up the system or device in the PRO-app, both while on-site and remotely. And for monitoring companies, we provide free software for monitoring all events and alarms in Ajax systems.

Data-rich alarms and events

With Transmitter, you can specify the device name, the type of alarm, and a room for a connected wired device. This makes notifications more informative — you know what happened and where. This information is displayed using push notifications and SMS and sent to the security company's monitoring station. Numerous types of alarms are available: intrusion, fire, auxiliary alarm, panic button, gas alarm, tamper alarm, malfunction, leakage, custom, and roller shutter alarm etc. Transmitter also notifies about its and the connected device’s faults if they occur. For example, if the connection is lost.

Less hassle with automated security

With Transmitter, even an old third-party device becomes part of a safe and smart home. An integrated device's alarms or events can trigger automation scenarios. Use automation scenarios so that the security system instantly responds to threats without waiting for response group or police. Ajax will turn on the light upon the motion detector alarm, switch off potential ignition sources at the first sign of fire, or close the roller shutter and gate in case of an attempt to break the front door.

Unique wired technology

Fibra is proprietary Ajax technology for secure two-way communication between devices and a hub or module that extends the Fibra line. Fibra features encryption and device authentication to prevent sabotage, spoofing, and data theft. The Fibra line supports all types of devices, including sirens, keypads, and detectors with photo verification.

Sabotage resistance

Instant detection of short circuits or breakage of connected device
Due to EOL connections support, the Transmitter can instantly detect a breakage or short circuit on the cables between alarm zones of the Transmitter and the connected device. Additionally, the Transmitter detects short circuits of the power supply line of a third-party device. Therefore, every sabotage effort will be noticed.

Anti-sabotage detection of connected device
The Transmitter supports all connection types from NC/NO to 3EOL and identifies all events of the connected device. Therefore, users and the CMS are immediately notified in case of tamper alarm, masking, or any other malfunction or sabotage attempts.

Protection against short circuits
Fibra protocol and a special digital algorithm provide reliable protection against unnoticed short-circuiting of the module or Fibra line. If someone tries to short-circuit it, it notifies of a malfunction. Hub informs both the Central Monitoring Station (CMS) and users about the incident.

Communication failure detection
The Transmitter regularly exchanges data with the hub. With minimal polling settings (3 data packages in 12 seconds), it takes 36 seconds to identify communication loss and notify the security company and users about the incident.

Encryption of transmitted between Transmitter and hub data
All data the system stores and transmits is protected by block encryption with a dynamic key. Encryption makes it extremely difficult to connect to the module with the intention of sabotage.

Event notifications
The monitoring station instantly receives notifications on events. The information includes time, device type and name, event type, and location room.

PRO is king

The myth that wired systems are difficult to install has been busted. Ajax has transformed what used to be an expensive, lengthy, and dusty experience for PROs by developing an ultimate set of tools to make the process easy and flexible, from project design to client support and system maintenance. Intuitive Ajax apps ensure the device can be integrated into the system quickly, and each device can be reconfigured remotely without the need for site visits.
