Ajax TurretCam (5 Mp/2.8 mm) (8EU) ASP - Black

In stock
Product Code
64924.197.BL1
SKU
64924.197.BL1

Ajax TurretCam (5 Mp/2.8 mm) (8EU) ASP - Black


DELIVERY

We always aim to same day dispatch on all orders received before 2.30pm.

Read more about our delivery policy

TRADE COUNTER

Firesense also offer the ability to collect your order from our trade counter.

Read more about our trade counter

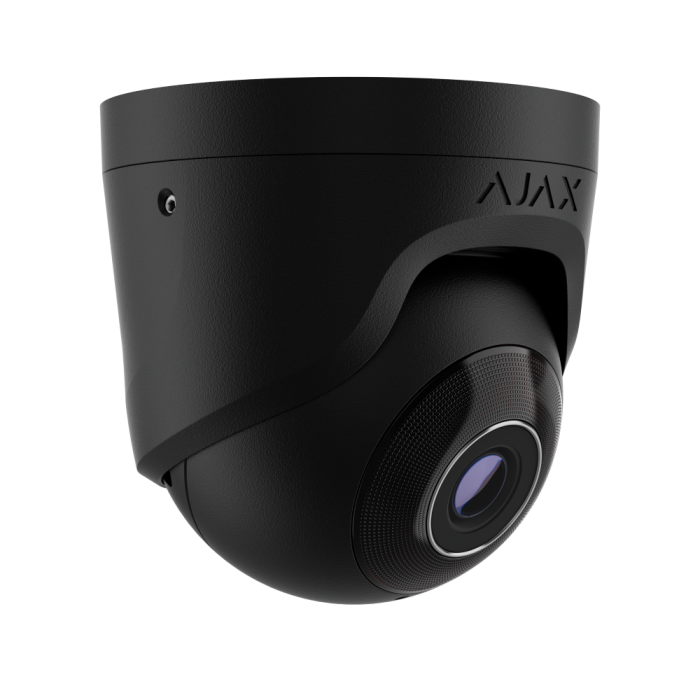

Ajax TurretCam (5 Mp/2.8 mm) (8EU) ASP

Wired IP turret camera for Ajax video surveillance. It offers a compact all-round camera style for indoor and outdoor CCTV projects. It supports a cleaner security package where detection, video and alerts are managed from the Ajax platform.

Intelligence and privacy built-in

Get full control over the camera stream with precise privacy settings for each system user. Enjoy smooth and fast navigation with an intuitive interface empowered by state-of-the-art streaming technology. NDAA-compliant hardware — utilizing cutting-edge software and AI — delivers a clear image right when you need it.

Complete awareness with a customizable video wall

Keep the entire site in view on a single screen. The video wall brings together streams from multiple cameras — even across different spaces — so users can monitor several viewpoints at once. Tiles can be rearranged anytime as priorities change. The video wall is available locally on a connected display via Ajax NVR's built-in VMS or remotely via Ajax apps for smartphones, laptops, desktops, and TVs.

Smooth archive navigation

Ajax apps make finding recorded events faster than ever. Thanks to our proprietary JetSparrow technology, the system responds instantly, allowing for smooth playback and effortless navigation through the event timeline. Users may tap any event to jump straight to the relevant footage, filter recordings by date or object type, and export clips in seconds — all within a single, intuitive interface.

Instant event-to-video alarm verification

With the app's system notifications, you can easily navigate to the specific camera and view the incident1. This makes the app a comprehensive solution for both security and video surveillance.
Set up a scenario in which Ajax detectors activate specific cameras and initiate video recording1. Configure the video settings to immediately receive high-resolution visual alarm confirmations.

Camera empowered by AI

Ajax cameras offer AI-powered object recognition for efficient event recording and reduced storage usage. This helps the surveillance system record only important events, like someone coming into a room or a car going through a parking lot.
Cameras can be armed selectively, and all processing occurs on the camera itself, minimizing infrastructure load. Efficiently searching for people and cars significantly accelerates incident processing at monitoring centers.

Built-in motion detection

Optimize your video archive by setting up the pixel movement detection feature. Define specific zones to ensure recordings are triggered only when movement occurs in the selected area. This conserves space and streamlines archive navigation.

Keep sensitive info in the private zone

Enhance privacy by setting up privacy zones. This feature allows hiding parts of the frame. For instance, if a safe is in view, activity around it can be recorded without revealing its contents by setting up the right zone. This option ensures that personal and sensitive information remains private, especially in a highly secure environment.

Verified evidence with no effort

Ajax provides secure video export with digital signature verification. Each exported recording comes with a built-in digital signature. Ajax Media Player automatically verifies the file's integrity and authenticity. If anyone attempts to alter the video file, the digital signature validation will fail, and Ajax Media Player will reject the file with a clear explanation.

Passwordless authentication is key

Our cameras do not have default passwords, eliminating a potential system weakness. Passwordless authentication via mTLS ensures that the camera can be connected to one space only.
Each cloud-endpoint interaction is authenticated through encrypted certificates, eliminating password risks. Adding a camera is effortless via the Ajax app, ensuring a seamless and secure installation process.



Easy integration through ONVIF® and RTSP

Ajax video devices are ONVIF® conformant and support RTSP. This opens up numerous opportunities to upgrade and retrofit existing video setups with advanced security features. Ajax cameras and NVRs connect to third-party surveillance or video management systems (VMS) in just a few taps — no special tricks, no extra effort. A wizard tool in Ajax apps simplifies the configuration process by automatically retrieving all necessary network data. Enjoy smooth streaming and flexible image configurations, whether building a new setup or expanding an existing one. With Ajax, you're free to design the system your way.

Hassle-free installation and setup

Adding to the system Installation Setup Monitoring
Adding to the system via QR code — no plugins or web interface required Minimal disassembly for quick setup
Complete set with all necessary fasteners
Configuration and testing in Ajax apps — no programming required
Conformance with ONVIF® Profile S
RTSP support
Motion detection zones adjustable via Ajax apps
Remote control via Ajax apps
Real-time system health monitoring with automatic state checks
A complete ecosystem of Ajax apps for any device: smartphone, laptop, desktop, or TV
Customizable video wall for real-time monitoring
Attributes
Approval NDAA
Camera Shape Turret
Category Type Turret Cameras, Wired Cameras
Colour Black
IP Rating IP65
Lens 2.8mm
Megapixel 5MP
Powered By PoE, 12Vdc
System Type CCTV
Clearance No
Write Your Own Review
You're reviewing:Ajax TurretCam (5 Mp/2.8 mm) (8EU) ASP - Black

Camera

Image sensor
5 MP CMOS, 1/2.7" type
Lens focal length
2.8 mm
Maximum aperture
f/1.6
Lens iris type
fixed
Lens focal type
fixed
Field of view
horizontal: 100–110°
vertical: 50–60°
diagonal: 125–135°
DORI distance
Detection: 65 m
Observation: 26 m
Recognition: 13 m
Identification: 6.5 m
Maximum illumination distance
IR LED: up to 50 m
Intelligent lighting control automatically adjusts the intensity of IR LEDs in real time to prevent overexposure. This ensures clear visibility of objects at varying distances — whether close to or far from the camera — in low-light conditions.
Signal-to-noise ratio (SNR)
more than 52 dB



Video

Resolution
5 MP (2880 × 1620)
4 MP (2560 × 1440)
3 MP (2304 × 1296)
2 MP (1920 × 1080)
0.6 MP (1024 × 576)
Frame rate
up to 20 fps (Linear)
up to 15 fps (HDR)
Image rotation
0°, 180°
Video codec
H.265, H.264
Dynamic range
120 dB (True WDR)
Storage microSD
Ajax NVR
Camera supports microSD up to 256 GB. The memory card should be Class V30 or faster. The card is not included in the complete set.



Audio

Built-in microphone
With the corresponding settings, the camera can record audio at the scene.
Audio codec
G711-ULAW, G711-ALAW, G726, G722



Intelligent video analytics

Motion detection
The camera detects motion using software image frame analysis.
AI object detection
People
Pets
Vehicles



Network

Port
1 × RJ-45 self-adaptive Ethernet (10/100 Mbps)
Protocol
HTTP, HTTPS, TCP/IP, IPv4, IPv6, SNMP, RTSP, UDP, DHCP, DNS, DDNS
Interoperability
ONVIF® (Profile S)
Ajax cameras and NVRs can be integrated into third-party video management systems (VMS).



Key features

Video protocol

JetSparrow
Fast and encrypted peer-to-peer video protocol developed by Ajax Systems.
Visual verification of Ajax alarms
The system allows you to configure a scenario according to which Ajax detectors trigger selected cameras to start recording. The recorded event is immediately delivered to the mobile or desktop monitoring app.
Privacy Advanced privacy controls ensure a high level of personal data protection. All access rights — including those for mobile app users, installers, and monitoring company operators via Ajax PRO Desktop — are fully configurable by the device owner. This guarantees that only authorized parties can access video streams, event history, or device settings, in accordance with the owner’s preferences.



Sabotage protection

mTLS
Encrypted connection for data protection.
Authentication
via Ajax Cloud
Secure Boot
Protection against firmware spoofing.
OTA signature verification
Secure automatic firmware update.



Power supply

PoE standard
802.3at/af, 36–57 V, Class 3
Average power consumption
8.5 W
Power supply unit
12 V⎓, 1 А



Enclosure

Dimensions
103 × 98 × 98 mm
Weight
475 g
Operating temperature range
from −30 °C to +60 °C
Operating humidity
up to 90%
Protection class
IP65, IK08



Complete set

Contains TurretCam (5 Mp/2.8 mm)
Installation template
Installation kit
Quick start guide
