In stock
Product Code
55400-894APO
SKU
AP4101N

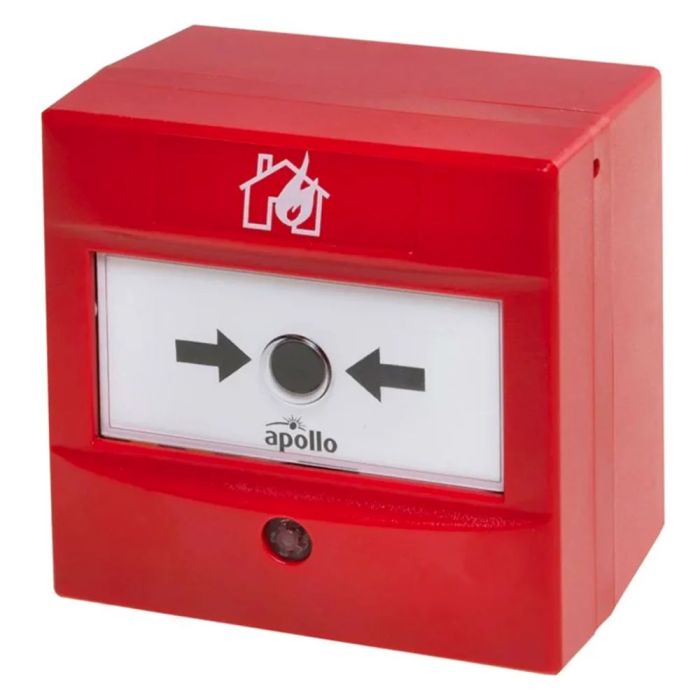

Apollo AlarmSense Manual Call Point
Apollo 55400-894APO Alarmsense Manual Call Point
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
The AlarmSense Manual Call Point has been designed to operate on a loop of AlarmSense compatible two wire fire alarm systems. An alarm is initiated by pressing the resettable element. The manual call point signals to the Control and Indicating Equipment using zene voltages. An alarm status is indicated through the rotation of the resettable element, displaying and yellow and black indication bars and a solid red LED. The manual call point can be easily reset from the front using the supplied reset key.
Key Features:
- Resettable operating element
- Easy access, front reset mechanism
- Ergonomic reset key
- EN 54-11 Certified
- 170° viewable LED
- Suitable for semi flush or surface mounting
The AlarmSense Manual Call Point has been designed to operate on a loop of AlarmSense compatible two wire fire alarm systems. An alarm is initiated by pressing the resettable element. The manual call point signals to the Control and Indicating Equipment using zene voltages. An alarm status is indicated through the rotation of the resettable element, displaying and yellow and black indication bars and a solid red LED. The manual call point can be easily reset from the front using the supplied reset key.
Key Features:
- Resettable operating element
- Easy access, front reset mechanism
- Ergonomic reset key
- EN 54-11 Certified
- 170° viewable LED
- Suitable for semi flush or surface mounting
| Approval | EN54-11, CPR, LPCB |
|---|---|
| Category Type | Call Point |
| Colour | Red |
| Element | Plastic |
| IP Rating | IP44 |
| System Type | Two Wire |
| Clearance | No |
Write Your Own Review
General
| Warranty | 10 year |
Mechanical
| Colour | Red |
| Weight | 156g |
| Materials Housing | Polycarbonate |
| Product Length | 90mm |
| Product Width | 90mm |
| Product Depth | 63mm |
| Detection Principle | Operation of a switch |
| Key type | Apollo Manual Call Point Reset Key |
Conformance
| Standards | EN54-11 |
| Approvals | LPCB, CPR |
Electrical
| Quiescent current | 50μA |
| Quiescent current tested at | 24Vdc |
Environmental
| Humidity (max) | 95% RH |
| Humidity (Min) | 0% RH |
| Humidity | 0% to 95% (no condensation or icing) |
| Humidity Notes | No condensation or icing |
| IP Rating | IP44 |
