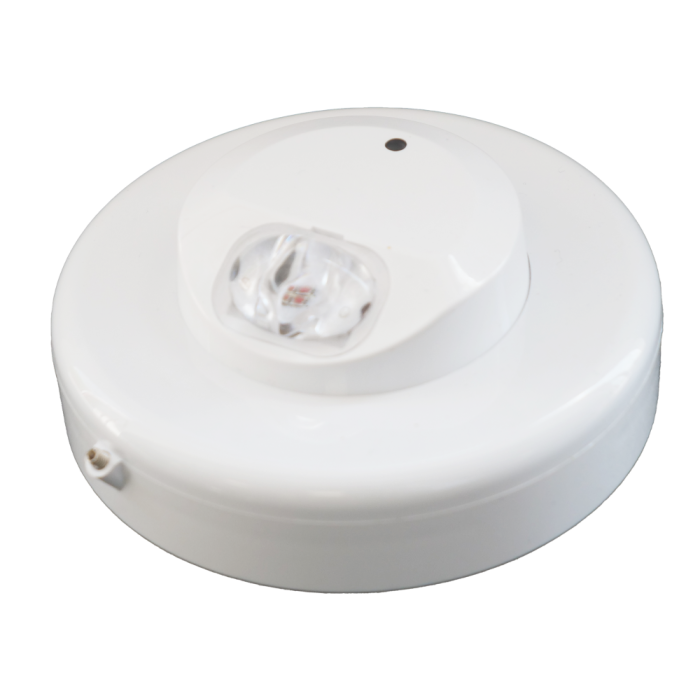

Apollo Intelligent Open-Area VAD Cat. W - White Body (Red Flash) (W-3.1-9)
Apollo Cat W. Wall VAD White Body, Red Flash
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
The Intelligent Open-Area Visual Alarm Devices (VADs) have been developed as primary or supplementary alarm devices and can be connected to CoreProtocol, Discovery and XP95 systems. VADs may be used in situations where there is a risk that sounders will not be heard, for example where there is high background noise such as in a workshop or machine room. They may also be required where deaf or hearing-impaired persons may be present. The Intelligent Open-Area VADs are approved EN 54-23 Cat W. devices in both the High and Low Power settings.
Features
- EN 54-23 Compliant Category W VADs
- Built-in controllable isolator (when used with XPERT 8 Base)
- Configurable coverage volume, High and Low setting
- Available in Red or White Flash
- Wide angle of visibility
- Easy installation on Apollo XPERT 7 or 8 Base
| Label / Promotion | New |
|---|---|
| Approval | EN54-17, EN54-23 |
| Category Type | Visual Alarm Device |
| Colour | White |
| IP Rating | IP21C |
| System Type | Addressable |
| Clearance | No |
Write Your Own Review
| Supply voltage | 17 V - 35 V dc |
| Digital communication | CoreProtocol, Discovery and XP95 |
| Quiescent current | 1.2mA |
| Alarm current, LED on, High Coverage | 14 mA |
| Alarm current, LED on, Low Coverage | 9.5 mA |
| Flash rate | 0.5 Hz |
| Weight | 470g (AlertBuddy unit); 260g (portable pillow pad) |
| Operating temperature | -10 ºC to +55ºC |
| Storage temperature | -10 ºC to +55ºC |
| Humidity | 0% to 95% RH (no condensation or icing) |
| IP Rating | IP21C |
| Standards | EN 54-23, EN 54-17 |
| Dimensions | 100 mm diameter x 40 mm deep |
| Weight | 118 g |
| Materials, Housing | White flame-retardant polycarbonate |
| Materials, Terminals | Tin-plated stainless steel |
