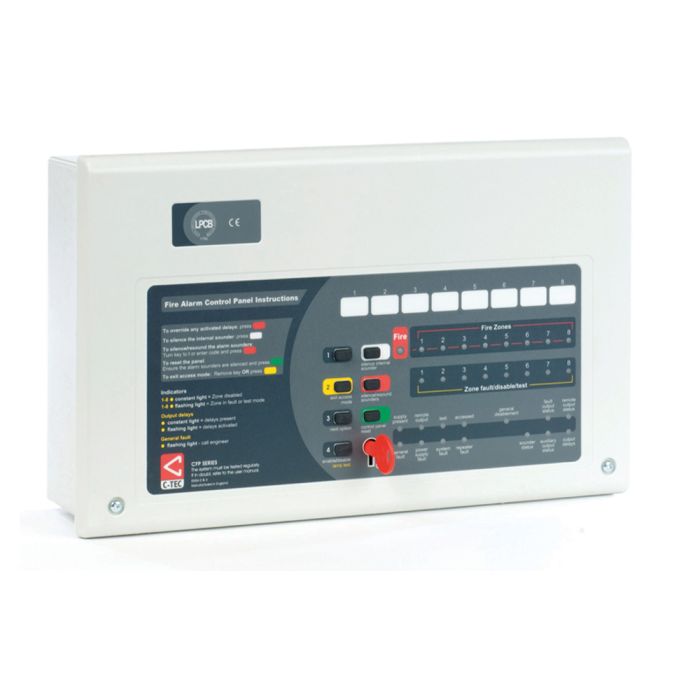

Certified to EN54 parts 2, 4 and 13, C-TEC’s CFP 2 zone conventional fire alarm panel offers an array of user and installer-friendly features at a very competitive price.

Supplied in an attractive flush or surface mountable plastic enclosure, it includes two detector zones, four conventional sounder circuits, class change and alert inputs, on-board fire and fault relays and combined keypad/keyswitch entry.

A wide range of engineering functions are also provided including selectable zone delays, coincidence and non-latching zone facilities. Comprehensive test and fault finding facilities are also provided.

Optional repeaters and relay expansion boards also available.

Features

• Third-party certified to EN54 parts 2 and 4 by the Loss Prevention Certification Board (LPCB) and EN54 part 13 certified by Kiwa Telefication.
• Intuitive user-friendly interface with colour-coded buttons and combined keypad/keyswitch entry.
• Manufactured by C-TEC in the UK.
• Two detector zone circuits.
• Four conventional sounder circuits*
• Integral 1.5A EN54-4/A2 compliant switch mode PSU.
• Wide range of engineering functions including zone test, coincidence, zone delay and non-latching zones.
• Two on-board relays (Fire and Fault).
• Two open-collector outputs (Remote and Reset).
• ‘Class change’ and alert inputs.
• Installer-friendly design.
• Attractive flush or surface mountable plastic lid and enclosure – no bezel required.
• Low 25mA quiescent current.
• Multiple indicators.
• System expansion connections provided for up to eight two-wire repeaters (one CFP761 network card required per system) and optional CFP relay boards.
• Space for two x 12V 3.3Ah VRLA batteries.
• Fully compatible with C-TEC’s ActiV fire detectors, sounders and visual alarm devices.
