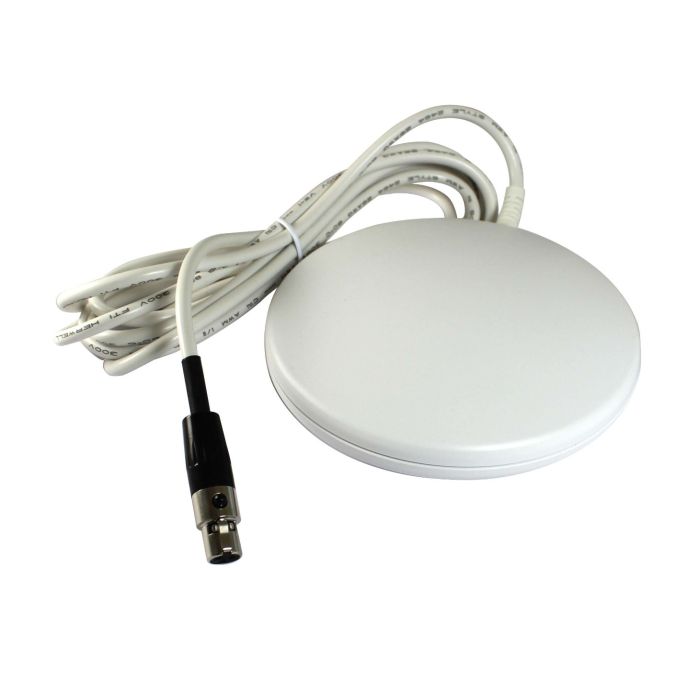

C-TEC 24V BS 5446-3 Vibrating Pillow Pad
24V BS5446-3 Vibrating Pillow Pad
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
Can be used in conjunction with a BF320JP connection plate to warn the hearing impaired of a potential fire alarm or evacuation alert condition.
Features
- Vibrates and pulses on and off when triggered as per the requirements of BS 5446-3 (2015).
- Designed to be placed under a pillow to supplement the audible and/or visual indication alerts provided by a system’s sounders and/or VADs.
- Wide 10-30V DC voltage range means it can also be connected to many third-party connector plates (subject to testing).
- Includes a 2m connection lead with a locking mini-XLR connector to prevent accidental removal.
- Includes a 6K8 end-of-line monitoring resistor for fire alarm system use – see instructions for monitoring options on other systems.
- Supersedes C-TEC's old BF363 pillow pad.
| Category Type | Accessory |
|---|---|
| Colour | White |
| System Type | Conventional |
| Clearance | No |
Write Your Own Review
| Approvals/certifications | Complies with the requirements of BS 5446-3 |
| Application/operation | Designed to connect to a BF320JP connection plate. The pad is typically placed under a pillow to warm the hard of hearing of an emergency situation |
| Supply/operating voltage | 10V-30V via BF320JP plate |
| Activation current | 65mA @ 24V DC / 110mA @ 10V DC |
| Product dimensions (mm) | 100mm diameter x 34 D; Connection lead measures 2m |
| Construction & finish | PC White RAL90003 |
| Weight | 162g |
| Operating conditions/temperature | -10°C to +60°C |
| Notes | The responsible person must ensure the pad's location is satisfactory to wake the user when in alarm. Note that on a C-TEC Eva-Alert System, power should be derived from a mains powered CA737 |
