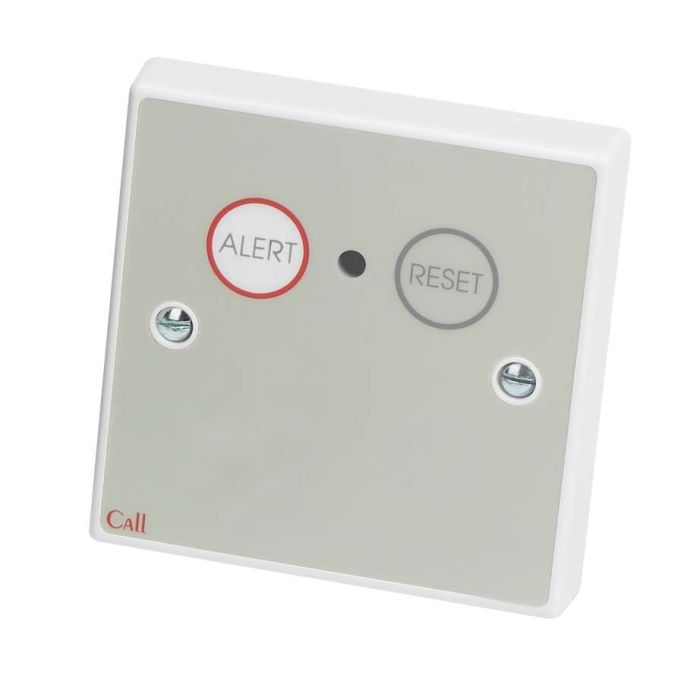

C-TEC 800 Series Emergency Only Call Point, Button Reset

In stock

Product Code

NC804DE

SKU

CT080402E

Emergency only call point button reset

DELIVERY

We always aim to same day dispatch on all orders received before 2.30pm.

Firesense also offer the ability to collect your order from our trade counter.

Onboard reset button cancels Emergency calls made from the NC804DE and Standard calls made from other devices wired on the same zone (such as ceiling pull units in Ensuite areas).
Ideal for use as a reset point for ceiling pull units that will allow a more urgent Emergency call to be made if additional assistance is required.
Red reassurance LED confirms a call has been made.
Mounts on a standard UK 25mm single gang flush or surface back box.

Write Your Own Review

Product Attachments

Quiescent Current	0mA (none)
Alarm Current	Determined by the type of control equipment and number / type of field devices connected to the system
Indicators	Red reassurance LED (lit intermittantly for Emergency Calls made on the NC804DE and constantly for standard call madefrom other devices on the same zone)
Controls	Alert button (generates Emergency calls); reset button (cancels emergency calls from the NC804DEor standard calls from devices wired on the same zone)
Connections	SIG (Signal); -Ve (Negative); +Ve (Positive)
Onboard 6.5mm Remote Jack Socket	No
Onboard Infrared Receiver	No
Product Dimensions (mm)	87 W x 87 H x 24 D mm. Mounts on a UK 25mm single gang back box.
Construction & finish	Plastic
IP Rating	IP40
Weight	58g
Operating Conditions/temperature	-5°C to +40°C. Max relative humidity 95% non condensing
