In stock
Product Code
CA431A/W
SKU
CT3513CA

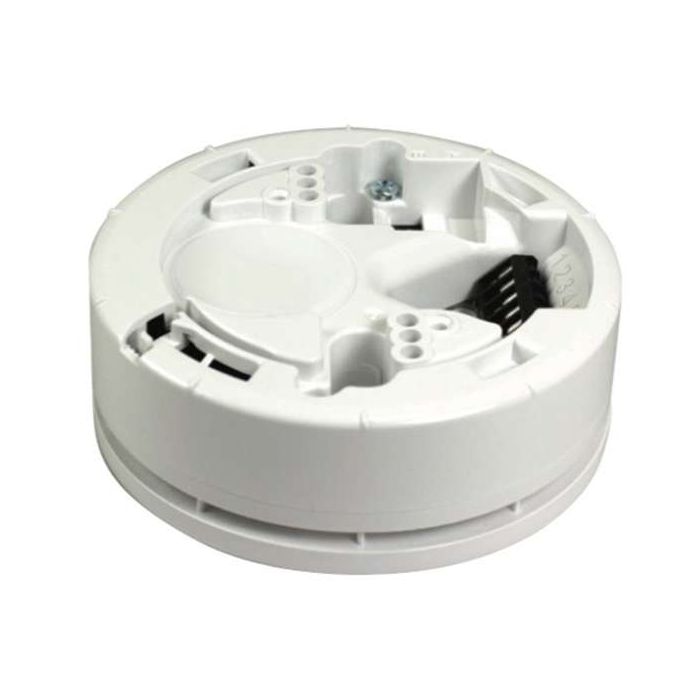

C-TEC CAST 92dB(A) Base Sounder
CAST 92dB(A) Addressable Base Sounder
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
An addressable base sounder LPCB certified to EN54-3 & 17 and Kiwa Telefication & DBI certified to EN54-13. Also certified to the relevant parts of EN54 with Swedish certification body SBSC.
Features
- Impressive 92dB(A) sound output @ 1m.
- Onboard short-circuit loop isolator.
- 5.5mA typical alarm current (460µA typical quiescent current) @ 24-40V DC.
- Group addressing facility allows multiple devices to be operated simultaneously.
- 4 selectable volume levels and 31 selectable tones.
- Optional BF330CTLIDW white or BF330CTLIDR red cap available for stand-alone use.
- IP21C rated.
- White ceiling fixing plate & detector spur wires included.
| Approval | EN54-3, EN54-13, EN54-17 |
|---|---|
| Category Type | Base Sounder |
| Colour | White |
| IP Rating | IP21C |
| System Type | Addressable |
| Clearance | No |
Write Your Own Review
| Approvals/Certifications | Certified by SBSC to the relevant parts of EN54, Certified to EN54-13 by Kiwa Telefication & DBI, Certified to EN54-3 and 17 by the LPCB. |
| Compatibility | C-TEC's XFP/ZFP CAST Protocol addressable fire panels |
| Application/Operation | Designed to be ceiling mounted -either stand alone with a red or white cap or as part of a stackedSounder/Detector Base combination |
| Supply/operating voltage | 22V to 40V DC |
| Quiescent current | 460uA typical @ 24 to 40V DC (typical) |
| Nominal SPL (Sound Pressure Level) | 92dB(A) when set to tone 1 |
| Alarm current | 5.5mA @ 24 to 40V DC (typical, sounder on max) |
| Indicators | Polling (red LED) |
| Dimensions | 122mm Diameter x 46mm deep (not including optional CAST detector and base) |
| IP Rating | IP21C (Type A) |
| Weight | 170g |
| Operating conditions/temperature | -10°C to +55°C. Max 95% RH (non-condensing) |
