C-TEC CAST Base Voice Sounder

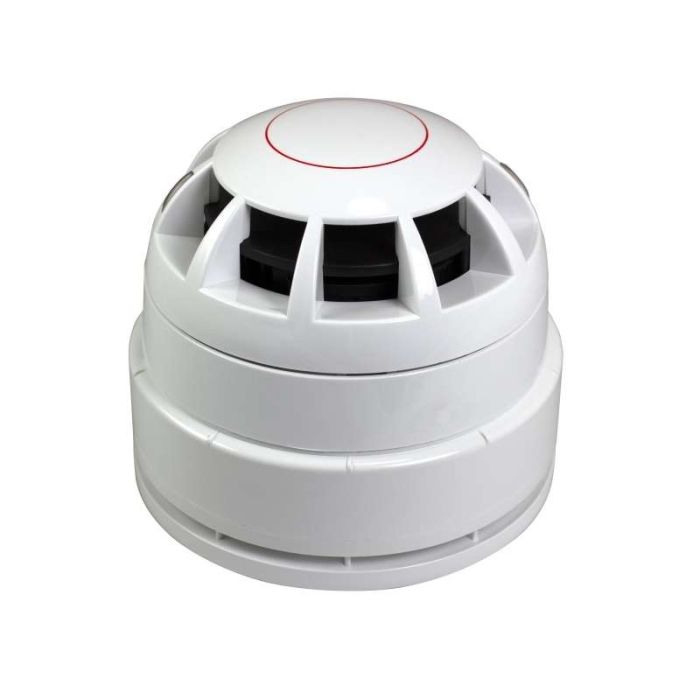

CAST Addressable Base Voice Sounder
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
An Addressable Base Voice Sounder
Features
- Superb sound intelligibility.
- Onboard short-circuit loop isolator.
- Four selectable volume levels
- Six selectable messages with tones (2 evacuate, 1 alert, 1 all clear & 2 system test messages).
- 15.5mA typical alarm current (470µA typical quiescent current) @ 24-40V DC (max volume & brightness).
- Group addressing facility allows multiple devices to be operated simultaneously.
- Optional BF330CTLIDW white or BF330CTLIDR red cap available for stand-alone use.
- IP21C rated.
- White ceiling fixing plate & detector spur wires included.
- Custom messages and CAST Lockdown Sounders also available to special order.
| Category Type | Voice Sounder |
|---|---|
| Colour | White |
| IP Rating | IP21C |
| System Type | Addressable |
| Clearance | No |
Write Your Own Review
| Compatibility | C-TEC's XFP/ZFP CAST Protocol addressable fire panels |
| Application/Operation | Designed to be ceiling mounted – either stand-alone with a red or white cap or as part of a stacked Voice Sounder/Detector Base combination. |
| Supply/operating voltage | 24V to 40V DC |
| Quiescent current | 470uA |
| Nominal SPL (Sound Pressure Level) | 89B(A) @ 1m |
| Alarm current | 15.5mA typical @ 24 to 40V DC |
| Indicators | Polling (red LED) |
| Dimensions | 122mm Diameter x 46mm deep (not including optional CAST detector & base |
| IP Rating | IP21C (Type A) |
| Weight | 160g |
| Operating conditions/temperature | -10°C to +55°C. Max 95% RH (non-condensing) |
| Notes | Includes the same electronics as the CAST EN54-3, 13 & 17 certified base sounder |
